P/N 35010029-G
Magnum 650
Magnum 850
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Magnum 650 and is the answer not in the manual?

Questions and answers

Summary of Contents for Martin Magnum 650

  • Page 1 P/N 35010029-G Magnum 650 Magnum 850 user manual...
  • Page 2: Table Of Contents

    Safety information ........................3 Product overview ........................6 Product description.......................6 Features at a glance......................6 Product details – Magnum 650 .....................7 Product details – Magnum 850Quick Start ................8 Quick Start..........................9 Setting up ..........................9 Making fog..........................9 Installation and setting up ......................10 Location..........................10 AC power..........................10 Setting up ...........................10...
  • Page 3: Safety Information

    Do not spill fluid over or inside the machine. If fluid is spilled, disconnect AC power and clean with a damp cloth. If fluid is spilled onto electronic parts, take the system out of service and contact Martin for advice. •...
  • Page 4 • Do not operate the machine if any parts are damaged, defective or missing. • Moisture and electricity do not mix. Do not aim smoke output at electrical connections or devices. • If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
  • Page 5 P r e v e n t i n g b r e a t h i n g p r o b l e m s • A smoke machine can operate safely only with the smoke fluid it is designed for.
  • Page 6: Product Overview

    The machines feature a unique new design that encompasses what the Magnum range is all about: state of the art technology, high quality and ruggedness. The Magnum 650 delivers a heavy punch of fog. It’s tough and rugged enough to meet the demand of mobile discos and parties.

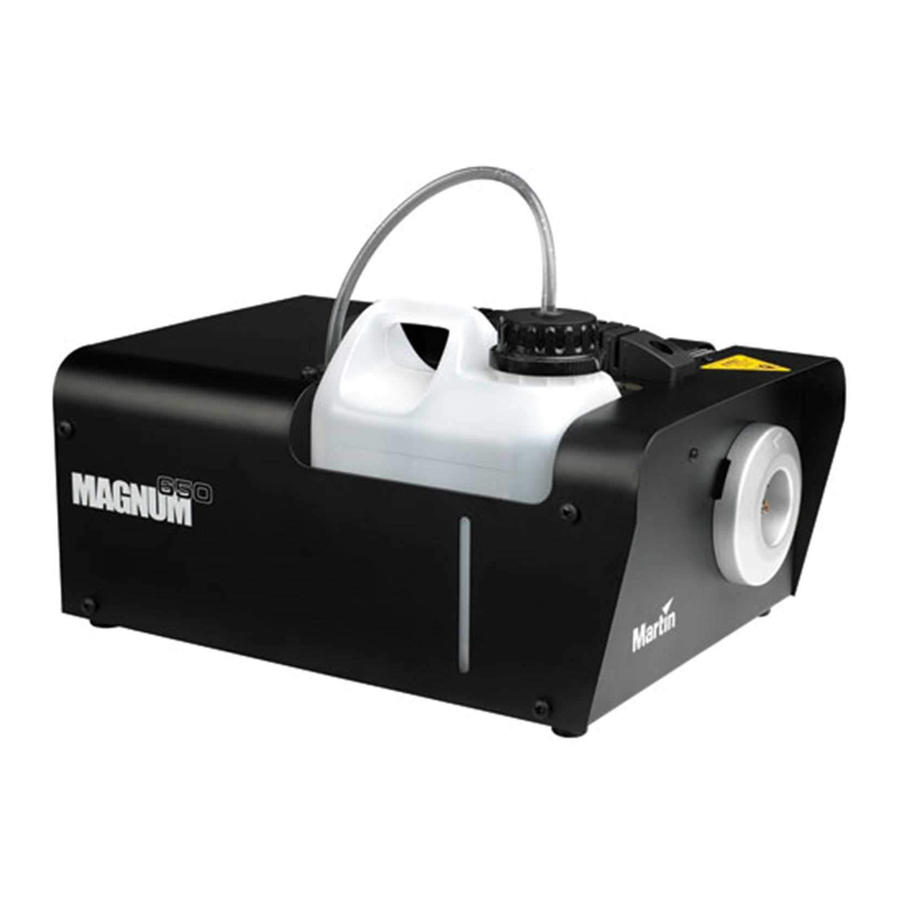

  • Page 7: Product Details - Magnum 650

    P r o d u c t d e t a i l s – M a g n u m 6 5 0 Carry handle Power switch Fluid container Remote cable Fluid level viewer Power inlet plug and mains fuse Smoke output nozzle WARNING HIGH...
  • Page 8: Product Details - Magnum 850Quick Start

    P r o d u c t d e t a i l s – M a g n u m 8 5 0 Heat (Red) / Ready (Green) indicators Remote / machine link sockets (Magnum 850 only) Main power switch Fluid container Power inlet...
  • Page 9: Quick Start

    If using the Magnum 850 connect the remote control to the REMOTE IN connector on the rear panel. The remote control is permanently connected to the Magnum 650. Turn on the power switch. The red Heat indicator on the remote and the top of the unit will light. After about 7-10 minutes the green Ready indicator on the remote and the top of the unit will light.
  • Page 10: Installation And Setting Up

    The machine requires: Magnum 650: 2.66A at 230V (EU) or 6.1A at 120V (US) Magnum 850: 3.4A at 230V (EU) or 6.6A at 120V (US) Check that the local AC voltage is appropriate, as indicated on the machine’s serial number label.
  • Page 11: Final Checks

    RJ45 (computer network) type cables. The maximum total length of cable, including the remote cable, is 50 metres. Machine-to-machine link is not available on the Magnum 650. to additional machines Do not connect a computer network to the RJ45 remote / link sockets on the Magnum 850.
  • Page 12: Turning On The Power

    3 • the smoke fluid is one of the genuine Martin fluids listed under “Smoke fluid options” on page 14 • the machine is electrically grounded (earthed) •...
  • Page 13: What The Status Lights Mean

    If the machine is left to run when out of fluid, damage will be caused to the pump which may cause premature pump failure. W h a t t h e s t a t u s l i g h t s m e a n The red heat light on the remote control has the following meanings.
  • Page 14: Optional Accessories

    Optional accessories (Magnum 850 only) T i m e r r e m o t e The timer remote is an optional accessory for the Magnum 850. Output level / timer programming knob Machine ready to fog light Machine heating light Fog / Timer engage button Timer On light...
  • Page 15: Setting Fog Output Level

    S e t t i n g f o g o u t p u t l e v e l Set the knob to the desired output level while firing the machine. The fog output level is always set by the current position of the knob, whether manually firing or in timer mode.
  • Page 16: Disabling Timer Mode

    To produce a timed burst of fog, press the FOG button briefly. To stop the timed fog output early, press the FOG button briefly again. D i s a b l i n g t i m e r m o d e If you wish to simplify the remote control, you can disable the timer function.
  • Page 17: Fog Fluid Types

    Fog fluid types The following types of Martin/Jem fog fluid are suitable for use in this machine. Each produces a different effect as described below. Martin supplies high quality fog fluids that are based on ultra-pure deionized water. Use only the following genuine Martin/Jem fog fluids.
  • Page 18: Basic Service

    F u s e r e p l a c e m e n t The main fuse for the Magnum 850 smoke machine is located on the electronics board inside the unit. The fuse for the Magnum 650 is located in a tray on the mains connector.
  • Page 19: Troubleshooting

    Troubleshooting Problem Probable cause(s) Suggested remedy Machine not at operating Wait 10 to 15 minutes Machine will not produce fog temperature when remote control Fog Ensure mains power switch button pressed Machine not powered up on and AC power is OK Smoke output is weak Machine requires priming Prime machine (page 12)
  • Page 20: Specifications

    Specifications M a g n u m 6 5 0 M a g n u m 8 5 0 P h y s i c a l Length..............293mm......409mm Width ..............216mm......165mm Height ..............170mm......186mm Dry weight............. 8.2Kg......9.9Kg P e r f o r m a n c e Effect coverage ..........160m /min.......200m /min...
  • Page 21 Ducting system Magnum series ............P/N 92625009 O r d e r i n g i n f o r m a t i o n Martin Magnum 650 smoke machine 120V ........P/N 92228810 Martin Magnum 650 smoke machine 230V ........P/N 92228811 Martin Magnum 850 smoke machine 120V ........
