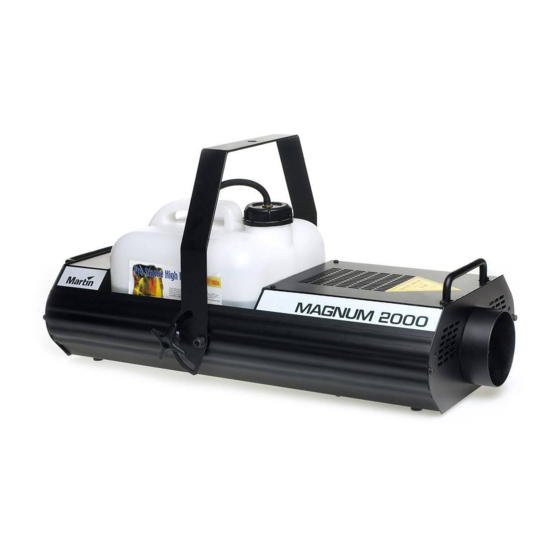

Martin Magnum Pro 2000 User Manual

Smoke machine with remote control unit
Hide thumbs Also See for Magnum Pro 2000:

Advertisement

Table of Contents

Magnum Pro 2000
user's guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Magnum Pro 2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Martin Magnum Pro 2000

Summary of Contents for Martin Magnum Pro 2000

  • Page 1 Magnum Pro 2000 user’s guide...

  • Page 2: Table Of Contents

    INTRODUCTION ..........INSTALLING THE MAGNUM PRO 2000 ....... .

  • Page 3: Installing The Magnum Pro 2000

    Fitting the fluid tank: Place the fluid tank in the body of the Magnum Pro 2000 as shown in figure 1 on page 10, and replace the screw cap by the tube adaptor-cap (with the fluid filter) ensuring that the fluid filter reaches the bottom of the tank.

  • Page 4: Operating Via The Remote Control Unit

    Switching on: To enable the heater circuit, simply turn the remote control potentiometer clock wise until it clicks and the red POWER LED turns on. Located on the back of the Magnum Pro 2000 are three LED’s which indicate the following: POWER (red LED): The same as the Power LED on the remote control unit.

  • Page 5: Operating Via A 0-10 Volt Source

    Wait 7 seconds and then press the timer store button to store the sequence. Assuming that the READY LED is on, the Magnum Pro 2000 will now produce smoke at medium level for 3 seconds, wait 7 seconds and then produce smoke for another 3 seconds etc.

  • Page 6: Slave Operation

    SLAVE OPERATION Whether you choose to operate your Magnum Pro 2000 via the remote control unit or via a 0-10 Volt source you will have the possibility of adding on an infinite number of slave machines that will all perform the same as the master machine by using the XLR slave output located on the back of the machine.

  • Page 7: Replacing The Fuse

    REPLACING THE FUSE It may occur that the fuse inside the Magnum Pro 2000 blows. If that should happen you will have to replace this fuse. Use a 10 A slow-blow fuse if the machine is a 230 V model. If the machine is a 115 V model then use a 15 A slow-blow.

  • Page 8: Introduction

    4 Press the plastic button on the thermo-switch, thereby resetting this switch. 5 Re-assemble the fixture before connecting to the mains. NOTE If the thermo-switch should interrupt repeatedly, then contact your Martin dealer for service.

  • Page 9: Technical Specifications

    TECHNICAL SPECIFICATIONS Magnum Pro 2000 Dimensions: See figure 1 Weight (empty tank): 13 Kg (28.5 lb) AC-voltage - 230 V model: 200 - 260 V AC-voltage - 115 V model: 100 - 130 V AC-frequency: 50 / 60 Hz Power consumption:...
