- Page 1 P/N 35010030G READ AND SAVE THESE INSTRUCTIONS Magnum 2500Hz user manual...
-
Page 2: Dimensions/Legal
JEM™ are registered trademarks of ® ©2016 HARMAN Professional Denmark ApS. All rights reserved. Martin HARMAN Professional Denmark ApS registered in the United States and/or other countries. Features, specifications, and appearance are subject to change without notice. -
Page 3: Table Of Contents
Approved Haze Fluid Types ....................19 Approved Discontinued Fluids: .................... 19 Basic service ..........................20 Cleaning ..........................20 Martin Pro Clean and Storage Fluid ..................20 Fuse replacement ........................ 21 Shutting down the machine ..................... 22 Shutdown procedure ......................22 Optional accessories ....................... -
Page 4: Safety Information
If the machine or any cables connected to it are in any way damaged, defective, wet, or show signs of overheating, stop using the machine and contact Martin Service and Support for assistance. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. - Page 5 Do not spill fluid over or inside the machine. If fluid is spilled, disconnect AC power and clean with a damp cloth. If fluid is spilled onto electronic parts, take the machine out of service and contact Martin Service and Support for advice.
- Page 6 Do not point haze output directly at a person’s face or at face height. For the latest user documentation and other information for this and all Martin products, please visit the Martin website at http://www.martin.com If you have any questions about how to install, operate or service the fixture safely, please contact your Martin distributor, dealer or contact Martin Service and Support.
-
Page 7: Product Overview

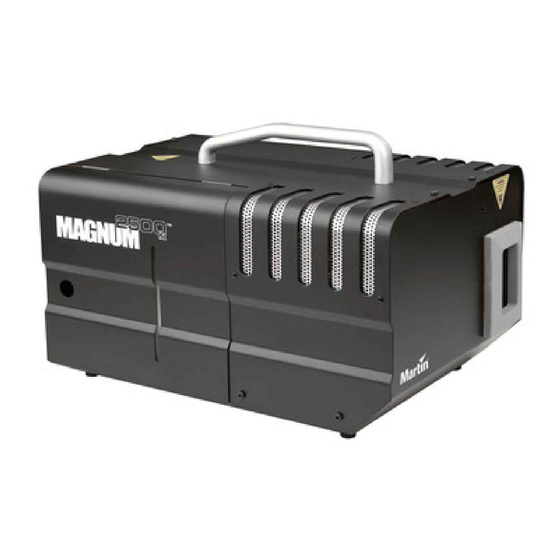

The machine features a unique new design that encompasses what the Magnum range is all about: state of the art technology, high quality and ruggedness. Congratulations on your purchase of the Magnum 2500Hz from Martin. Details of the full range of Martin products are available on our website at www.martin.com. -
Page 8: Product Details
P r o d u c t d e t a i l s Status Indicators Heat (Red) Ready (Green) Remote / machine link sockets DMX start address DIP switches Mains power inlet Concealed 3.8 l fluid reservoir Mains power switch DMX in/out jacks Fluid level sight gauge Haze output nozzle... -
Page 9: Quick Start
Locate the machine in a suitably large area with nothing in front of the haze output. Fill the fluid reservoir with Martin approved haze fluid (see page 19). The fluid compartment is opened by pulling outwards on the cover (pull using a finger in the round hole). -
Page 10: Installation And Setting Up
“Safety information” on page 4. L o c a t i o n The Magnum 2500Hz should be located on a solid surface such as the floor. The machine can operate in any orientation from 30° upwards to 30° downwards. -
Page 11: Setting Up
S e t t i n g u p Fill the fluid reservoir with Martin approved haze fluid (see page 19). The fluid compartment is opened by pulling outwards on the cover (pull using a finger in the round hole). The cover is held closed by a magnetic catch and hinges upwards. -
Page 12: Final Checks
4. the haze fluid is genuine Martin fluid listed under “Approved Haze Fluid Types” on page 19. the machine is electrically grounded (earthed). -
Page 13: Control Settings
Control settings O v e r v i e w Output level / timer programming knob Machine ready to fog light Machine heating light Fog / Timer engage button Timer On light Timer Off light Timer set button The unit is controlled using the remote control. You can control it in these ways: ... -
Page 14: Setting The "One-Shot" Timer
2. Turn the knob to the required “run” time, as shown on the outer scale of the knob (OFF – 255 seconds). 3. Press the TIMER SET button once. The ON light will come on static and the OFF light will flash. You are now setting the Off/Wait time. 4. -
Page 15: Priming The Machine
P r i m i n g t h e M a c h i n e If the machine runs out of fluid, it may not pump properly after refilling the fluid due to airlocks in the fluid pipes. To prime the machine, hold down the FOG button and turn the knob to maximum. -
Page 16: What The Status Lights Mean
W h a t t h e s t a t u s l i g h t s m e a n The four lights on the remote have the following functions. The red “HEAT” light and the green “READY” light are also duplicated on the rear of the machine itself. -
Page 17: Dmx Control
The Magnum 2500Hz requires the optional DMX control module to allow DMX operation. C o n n e c t i o n The Magnum 2500Hz provides a 3-pin XLR plug and socket on the rear panel for DMX connection. The wiring is shown below. Connector pin function 1... -
Page 18: Setting The Dmx Start Address
Each unit on a DMX system must be allocated an address so that the DMX controller can send separate commands to the unit. On the Magnum 2500Hz, the DMX start address is set using the bank of switches (“dip switches”) on the back panel next to the DMX connectors. -
Page 19: Approved Haze Fluid Types
Use only the following genuine Martin haze fluids. No other fluid is suitable for use. DANGER! The Magnum 2500Hz can run safely only on the specific haze fluids it is designed for. Use ONLY the Martin haze fluids designated in this manual. -
Page 20: Basic Service
Martin service technicians for years of both cleaning and storing effect machines. Utilizing Martin Pro-Clean & Storage Fluid on a regular basis reduces clogging and further extends the life of your Martin atmospheric effect machines. By using the highest-grade chemicals available while remaining eco-friendly, Martin fluids are both effective and safe. -
Page 21: Fuse Replacement
F u s e r e p l a c e m e n t The main fuse for the Magnum 2500Hz is located on the electronics board inside the unit. DANGER! Disconnect the power supply before removing any covers. Live parts... -
Page 22: Shutting Down The Machine
Shutting down the machine IMPORTANT: To ensure both the performance and life of your Magnum 2500Hz is maximised, the following procedures should always be followed. S h u t d o w n p r o c e d u r e When shutting down the machine, always allow a 5-minute period with the output set at zero, before removing the power. -
Page 23: Optional Accessories
Optional accessories F i t t i n g t h e D M X m o d u l e The optional DMX module replaces the blanking plate on the rear of the Magnum 2500Hz. DANGER! Disconnect the power supply before removing the blanking plate. Live parts inside! 1. -
Page 24: Troubleshooting
Troubleshooting Problem Probable cause(s) Suggested remedy Machine not at operating Wait 10 to 15 minutes temperature Machine will not produce Ensure mains power switch Machine not powered up or haze when remote control on, enable heaters by heaters disabled Fog button pressed pressing FOG... -
Page 25: Technical Specifications
Technical Specifications P h ys i c a l Length .................... 455 mm (18 in.) Width ................... 285 mm (11.3 in.) Height ..................286 mm (11.1 in.) Weight, dry ................... 11.9 kg (26.3 lb.) Weight, filled ................. 15.7 kg (34.6 lb.) P e r f o r m a n c e Coverage volume ............ - Page 26 Epsilon 5 AVR Programmer ............. P/N 50502004 Temperature Calibration Box ............P/N 92620005 *Various sizes available - contact your dealer or see martin.com for more details. O r d e r i n g i n f o r m a t i o n Magnum 2500Hz, EU ...............
- Page 27 Electronic Equipment), as amended by Directive 2003/108/EC, where applicable. Help preserve the environment! Ensure that this product is recycled at the end of its life. Your supplier can give details of local arrangements for the disposal of Martin products. Technical Specifications...
-
Page 28: Notes
Notes Notes... - Page 29 Notes...
- Page 30 • Olof Palmes Allé 18 • 8200 Aarhus N • Denmark Tel: +45 8740 0000 • Fax: +45 8740 0010...
