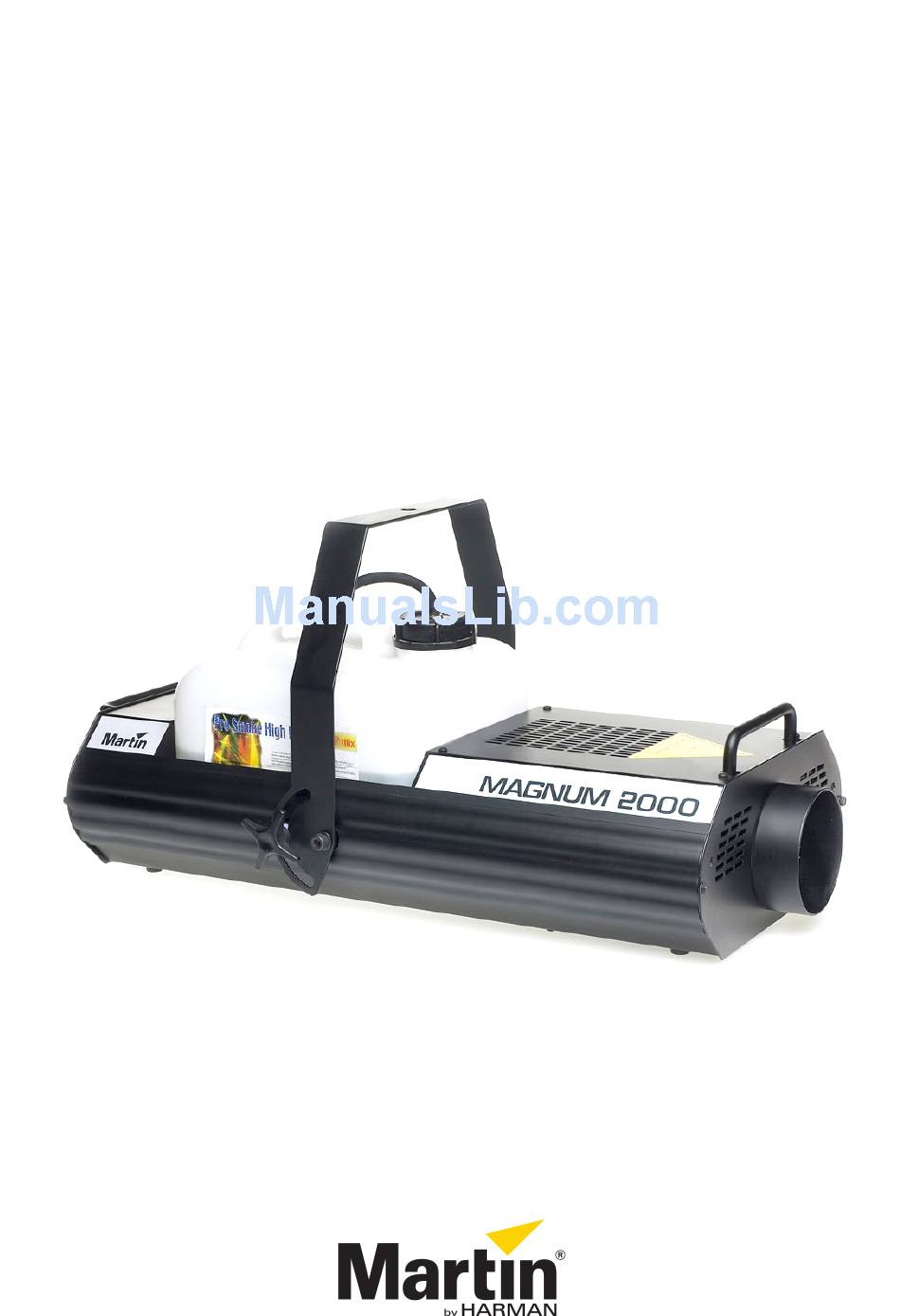

  • Page 1 Magnum 2000 user manual...
  • Page 2 ©1995, 2000 Martin Professional A/S, Denmark. All rights reserved. No part of this manual may be reproduced, in any form or by any means, without permission in writing from Martin Professional A/S, Denmark. Printed in Denmark. P/N 35000038, Rev. C...
  • Page 3 NTRODUCTION F E A T U R E S The Magnum 2000 is a high performance micro-controller based smoke machine that features: • Specially designed heating element for long life and reliability • High pressure pump • Variable smoke output •...
  • Page 4 If you have questions about how to operate the device safely, please contact your Martin dealer or call the Martin 24-hour service hotline at +45 70 200 201. • Keep the output nozzle at least 60 cm (24 inches) away from people and objects.
  • Page 5 I N S T A L L A T I O N The Magnum 2000 may be placed on a flat surface or suspended by means of a rigging clamp (not included) fastened through the 13 mm (0.5 inch) hole in the mounting bracket.

  • Page 6: To Inst All The Fl Ui D Tank

    To inst all the fl ui d tank 1 Place the fluid tank in the Magnum 2000 as shown on page 2. 2 Remove the container cap and screw on the tank adaptor cap. Verify that the tube (with fluid filter) reaches the bottom of the tank.

  • Page 7: Operation

    • Use clean fluid to avoid clogging of the heating element and damage to the pump. • Use Martin fog fluid. This fluid is non- toxic, water-based and specially designed for Martin smoke machines. Jem “Pro-Smoke” fluids may be substituted.

  • Page 8: To Set T He Auto- Timer

    S T A T U S The three LEDs on the rear panel of the smoke machine indicate the machines status. POWER (red): There is power to the heater. HEAT (red): The machine is heating. The LED flashes rapidly and then more slowly as the heating cycle nears the end.
  • Page 9 M U L T I P L E M A C H I N E S Whether you operate your Magnum 2000 via the control unit or a 0-10 volt source, you can command additional machines through the XLR “slave output” on the back panel.

  • Page 10: Basic Service

    READY LED never lights. below. If the problem persists then consult your Martin dealer. In case of other failures, contact a Martin service technician. F U S E 230 V model: Use a 10A slow-blow fuse. 115 V model: Use a 15A slow-blow fuse.

  • Page 11: To Res Et T He T He Rmo-Swit Ch

    T H E R M O - S W I T C H The Magnum 2000 has an over-heat switch (thermo-switch) that interrupts power to the heating element should it reach a temperature above normal. The thermo-switch must be reset manually after it has been activated. This reset is performed by pressing the plastic button on top of the switch.

  • Page 12: Specifications

    PECIFICATIONS Dimensions: See figure 1 Weight (empty tank): 13 Kg (28.5 lb) AC-voltage - 230 V model: 200 - 260 V AC-voltage - 115 V model: 100 - 130 V AC-frequency: 50 / 60 Hz Power consumption: 1700 W Maximum fluid consumption: 0.2 l/min Tank capacity: 9.5 l (2.5 gall)
