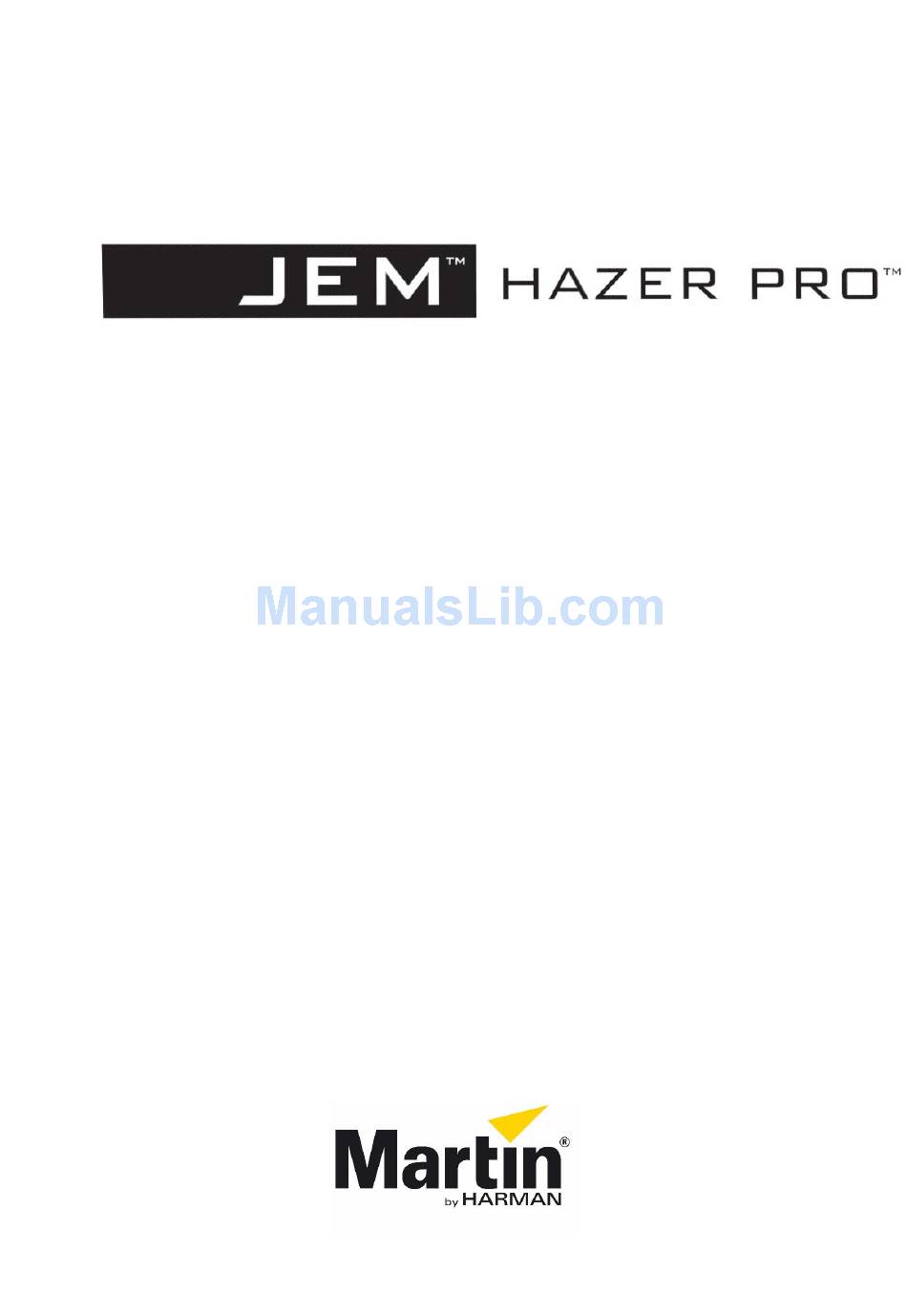

- Page 1 READ AND SAVE THESE INSTRUCTIONS P/N 35010039-D user manual...
-
Page 2: Dimensions/Legal
JEM™ are registered trademarks of ® ©2016 HARMAN Professional Denmark ApS. All rights reserved. Martin HARMAN Professional Denmark ApS registered in the United States and/or other countries. Features, specifications, and appearance are subject to change without notice. -
Page 3: Table Of Contents
Contents Dimensions/Legal ........................2 Contents ............................ 3 Safety information ........................4 Product overview ........................7 Product description ........................ 7 Features at a glance ......................7 Product details ........................8 Quick Start ..........................9 Setting up ..........................9 Making haze ........................... 9 Switching off ........................... -
Page 4: Safety Information
If the machine or any cables connected to it are in any way damaged, defective, wet, or show signs of overheating, stop using the machine and contact Martin Service and Support for assistance. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. - Page 5 Do not remove the covers or attempt to repair a faulty machine. Refer any service not described in this manual to Martin Service and Support. Do not operate the machine if any parts are damaged, defective or missing.
- Page 6 Do not point haze output directly at a person’s face or at face height. For the latest user documentation and other information for this and all Martin products, please visit the Martin website at http://www.martin.com If you have any questions about how to install, operate or service the fixture safely, please contact your Martin distributor, dealer or contact Martin Service and Support.
-
Page 7: Product Overview

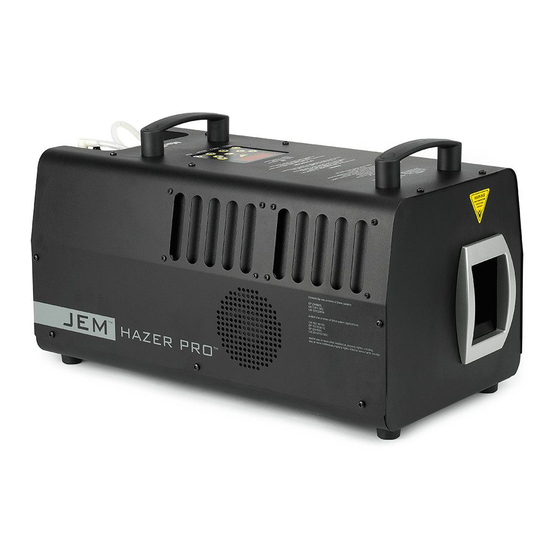

P r o d u c t d e s c r i p t i o n The JEM Hazer Pro is a top of the range haze machine from Martin Professional designed for the highly demanding professional market. Its ability to produce... -
Page 8: Product Details
P r o d u c t d e t a i l s Digital Remote Control inlet AVR socket Mains power switch 3-pin DMX in/out Mains Power inlet 5-pin DMX in/out Digital Control Panel Fluid Reservoir Haze outlet Warning, high temperature vapour and surfaces! Product overview... -
Page 9: Quick Start
S w i t c h i n g o f f The JEM Hazer Pro is designed to run an automatic self-cleaning cycle on power down to help prevent blockages using its built in rechargeable battery. When power is turned off the cleaning cycle will begin automatically. -
Page 10: Installation And Setting Up
“Safety information” on page 4. L o c a t i o n The JEM Hazer Pro is designed to be located on the floor or may be suspended using the optional flying kit. If suspending the machine, the handles are removed and four eyebolts provided in the flying kit are fitted in their place. -
Page 11: Setting Up
T u r n i n g o f f t h e p o w e r The JEM Hazer Pro is designed to run a self-cleaning cycle on power down to help prevent blockages, using its built in rechargeable battery. -
Page 12: Control Settings
Control settings O v e r v i e w – D i g i t a l C o n t r o l P a n e l The Digital Control Panel on the top of the machine allows you to configure the control settings using option menus. -
Page 13: Setting Run Mode
S e t t i n g R u n m o d e The Run menu sets the operational mode of the unit, either Off, Standby (heaters remain on), Fan only, Timer mode or Continuous mode. Use the Menu Previous / Next buttons to select the option. Use the Up/Down buttons to select ... -
Page 14: Setting The Master-Slave Link Mode
Use the Up/Down buttons to set the DMX start address from to . If you hold down the button, the address will count up/down faster. Press the Enter button to store the address setting. The machine will automatically respond to a DMX controller whenever it is connected. -
Page 15: Resetting Options To Factory Settings
R e s e t t i n g o p t i o n s t o f a c t o r y s e t t i n g s The factory settings configure a standard mode of operation for the machine. Use the Previous / Next buttons to select the ... -
Page 16: Optional Digital Remote Control
3-pin XLR socket labeled ‘Remote’ on the rear panel of the JEM Hazer Pro. The remote control is powered through its cable by the Jem Hazer Pro; no batteries are required. -
Page 17: Dmx Control
13. The JEM Hazer Pro uses 3 DMX channels. For example if the JEM Hazer Pro is set to DMX address 100, channel 1 will be controlled by address 100, channel 2 will be controlled by address 101 and channel 3 by address 102. -
Page 18: Rdm Operation
R D M o p e r a t i o n The JEM Hazer Pro supports DMX Remote Device Management (RDM). This allows configuration and status monitoring of the machine from a suitably equipped lighting console or control system. -
Page 19: Approved Haze Fluids
Available in 2.5, 5, 25, and 220 l containers. To find your local dealer visit www.martin.com DANGER! The JEM Hazer Pro can run safely only on the specific haze fluid it is designed for. Use ONLY JEM C-Plus Haze Fluid as designated in this manual. -
Page 20: Basic Service
Basic service Before servicing the JEM Hazer Pro, read and observe all the precautions listed in “Safety information” on page 4. Any service not described in this section must be carried out by a Martin service technician. To find your local Martin service center visit www.martin.com... -
Page 21: Fuse Replacement
Remove the spent fuse and replace with one of exactly the same size and rating. The fuse type is indicated below. Contact Martin Service and Support if the fuse blows repeatedly. -
Page 22: Troubleshooting
Troubleshooting Problem Probable cause(s) Suggested remedy Wait until message Machine not at operating temperature no longer shown Machine will not produce set to 0 Increase setting haze when control panel set to RUN or remote control set to 0 Increase setting Haze switch turned on... -
Page 23: Status Messages
If this message displays on every start-up, call Martin Service and Support to obtain a replacement battery. R e s e t t i n g t h e m a c h i n e a f t e r f l u i d o u t If the machine runs out of fluid, simply refill the fluid reservoir and follow the priming instructions on page 14. -
Page 24: Technical Specifications
Technical Specifications P h ys i c a l Length ..................565 mm (22.3 in.) Width ................... 271 mm (10.7 in.) Height ..................298 mm (11.8 in.) Height with rigging kit ..............294 mm (11.6 in.) Dry weight ..................15 kg (33.1lb.) Filled weight ................. - Page 25 Epsilon 5 AVR Programmer ............. P/N 50502004 Temperature Calibration Box ............P/N 92620005 *Various sizes available – contact your dealer or see Martin.com for details O r d e r i n g i n f o r m a t i o n JEM Hazer Pro, EU ................
- Page 26 Dis p o s ing o f th is p ro d uct Martin™ products are supplied in compliance with Directive 2002/96/E C of the E uropean Parliament and of the Council of the E uropean Union on WE E E (Waste E lectrical and E lectronic E quipment), as amended by Directive 2003/108/E C, where applicable.
-
Page 27: Notes
Notes Notes... - Page 28 Notes...
- Page 29 Notes...
- Page 30 • Olof Palmes Allé 18 • 8200 Aarhus N • Denmark Tel: +45 8740 0000 • Fax: +45 8740 0010...
