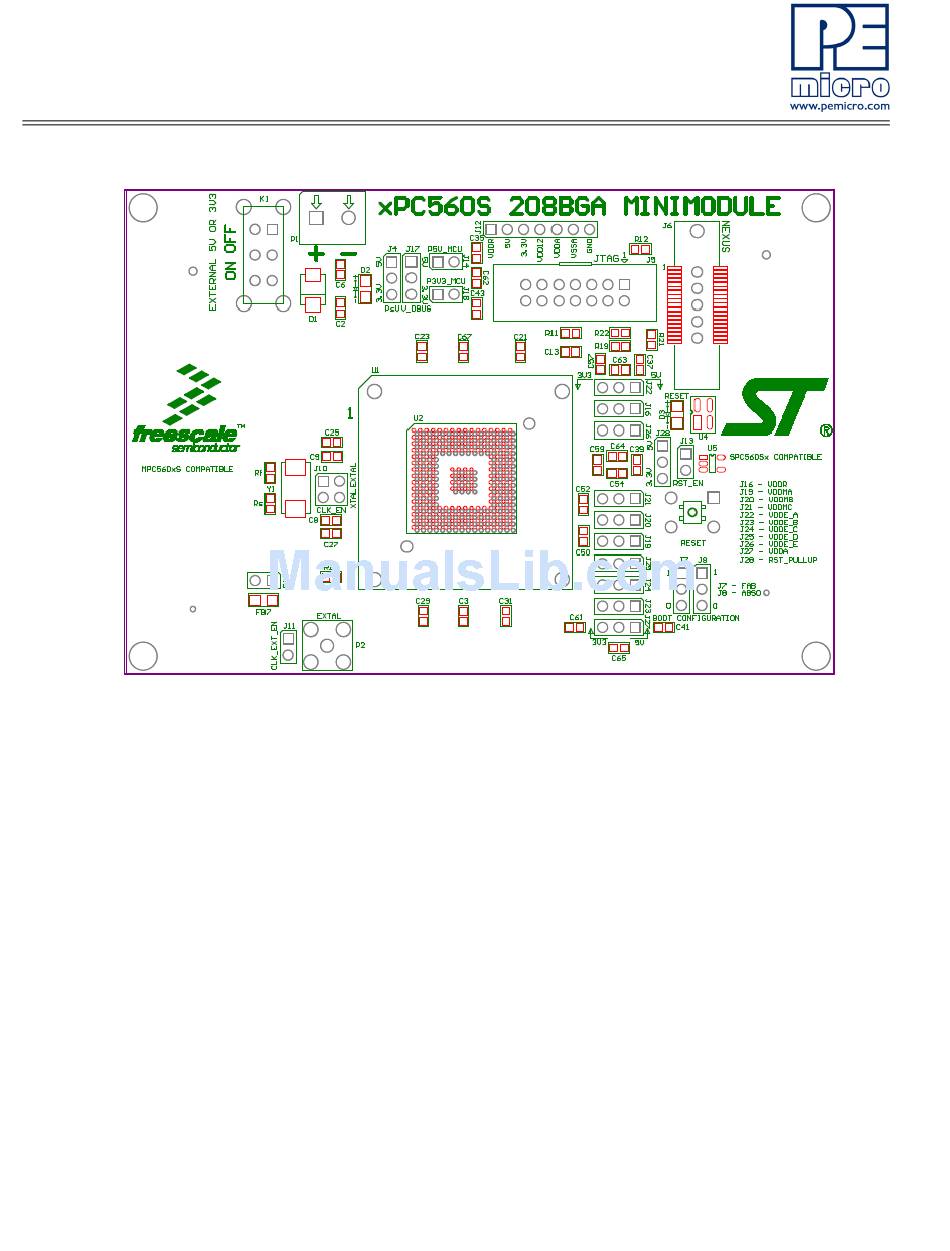

Figure 2-4: xPC560SADPT208S Top Component Placement
2.2
Pin Numbering for Jumpers
Jumpers for both the xPC56XXMB motherboard and the xPC560S Mini-
Modules have a rounded corner to indicate the position of pin 1. See
examples below for the numbering convention used in this manual for jumper
settings.
