in-circuit debugger and flash programmer to allow debug and flash
programming of the target processor. P&E's USB-ML-PPCNEXUS
Development Packages come with the USB-ML-PPCNEXUS Interface, as
well as flash programming software, in-circuit debugging software, Windows
IDE, and register file editor.

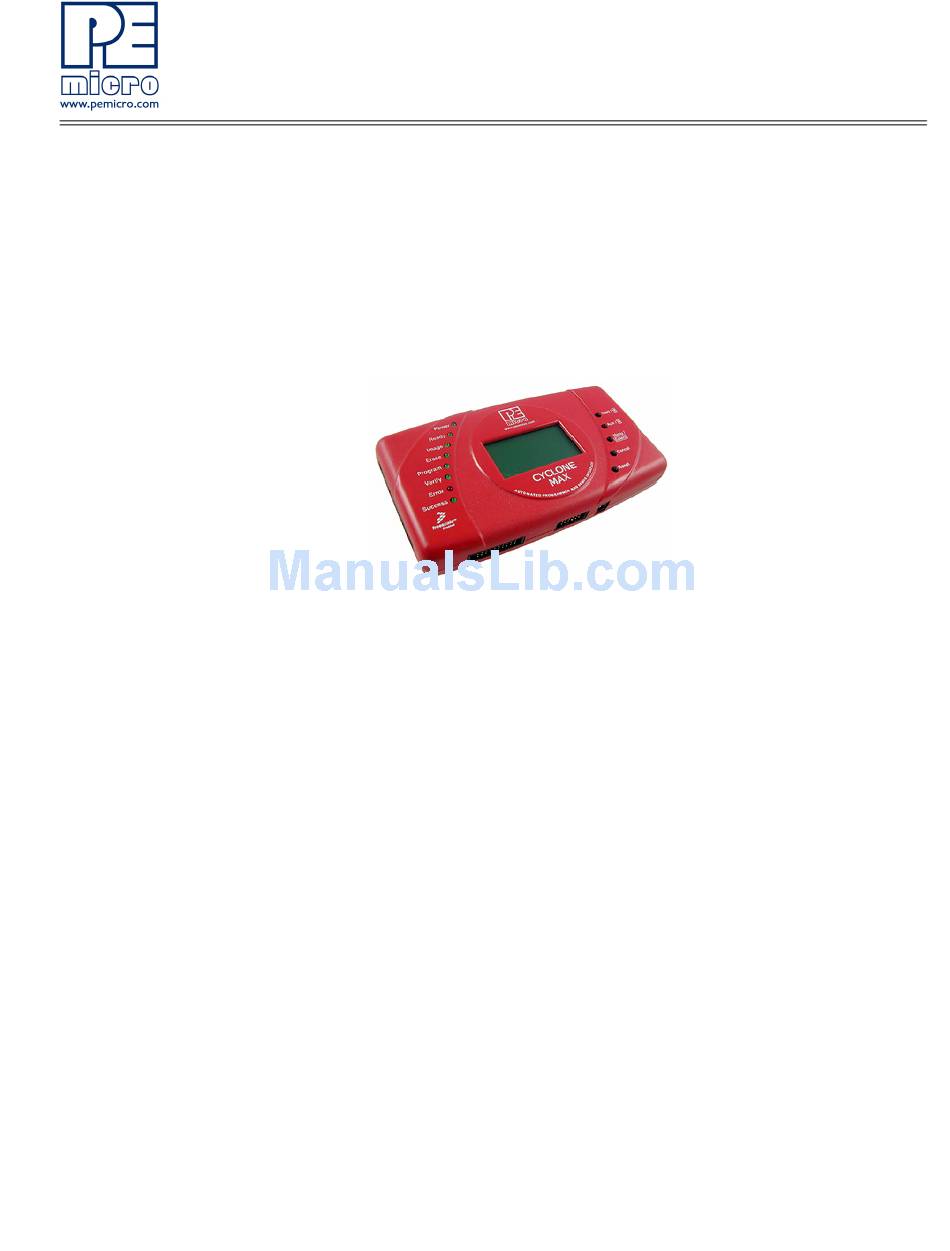

7.3 Working With P&E's Cyclone MAX
7.3.1 Product Features & Implementation
P&E's Cyclone MAX is an extremely flexible tool designed for debugging,
testing, and in-circuit flash programming of Freescale's ColdFireV2/3/4,
PowerPC 5xx/8xx/55xx/56xx, and ARM7 microcontrollers. The Cyclone MAX
connects your target to the PC via USB, Ethernet, or Serial Port and enables
you to debug your code, program, and test it on your board. After
development is complete the Cyclone MAX can be used as a production tool
on your manufacturing floor.
For production, the Cyclone MAX may be operated interactively via Windows-
based programming applications as well as under batch or .dll commands
from a PC. Once loaded with data by a PC it can be disconnected and
operated manually in a stand-alone mode via the LCD menu and control
buttons. The Cyclone MAX has over 3Mbytes of non-volatile memory, which
allows the on-board storage of multiple programming images. When
connected to a PC for programming or loading it can communicate via the
ethernet, USB, or serial interfaces.
7.3.2 Software
The Cyclone MAX comes with intuitive configuration software and interactive
