2.2
Pin Numbering for Jumpers
Jumpers for both the xPC56XXMB motherboard have a rounded corner to
indicate the position of pin 1. See examples below for the numbering
convention used in this manual for jumper settings.
xPC56XXMB User Manual
•
Specifications:
•
Board Size 5.5" x 9.0"
•
12VDC Center Positive power supply with 2.5/5.5mm barrel
connector

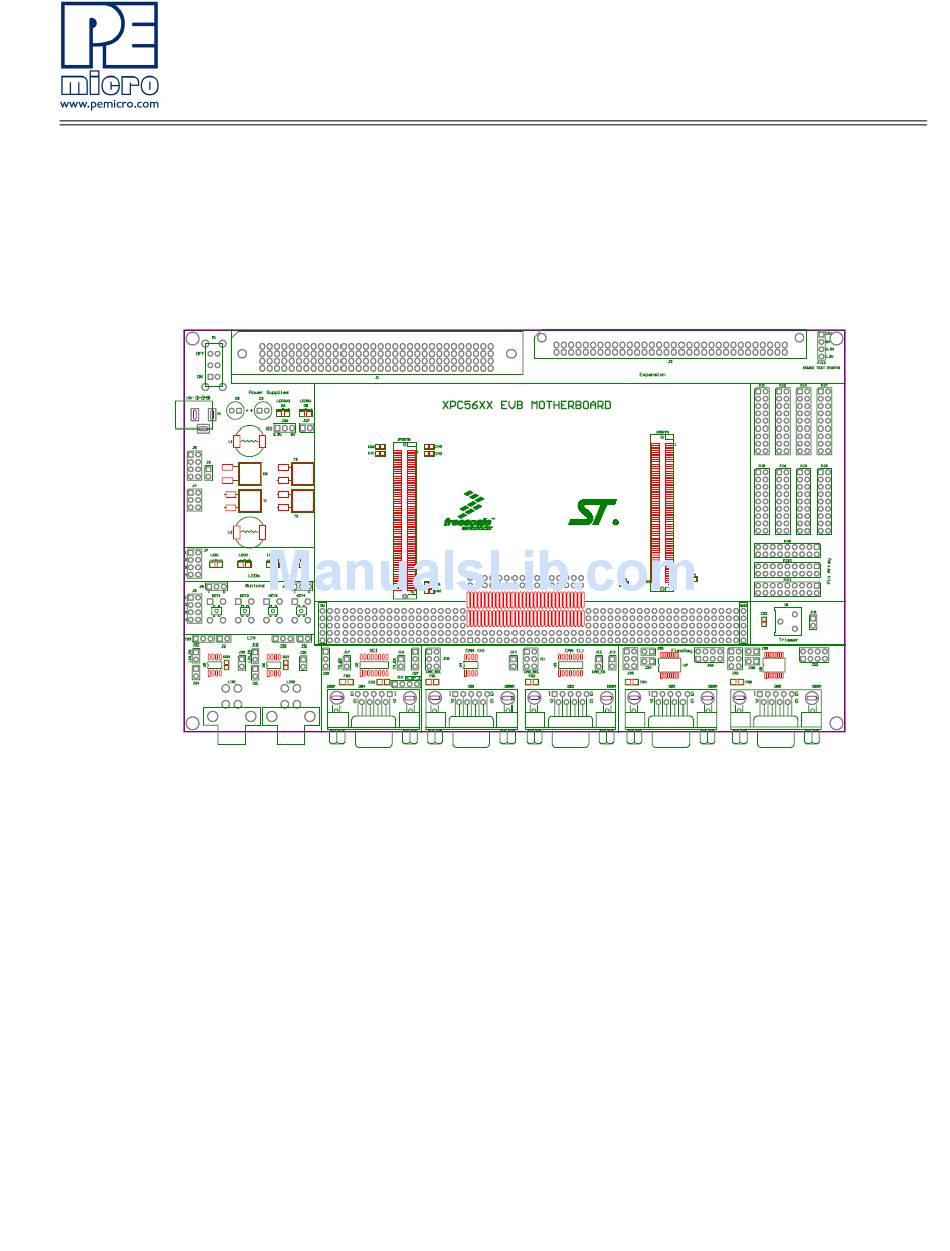

Figure 2-2: xPC56XXMB Top Component Placement
5
