On (default)
Off
J28 – Reset Pullup
The RESET signal of the MPC560xS processor can be pulled up to a logic
high voltage.
Jumper Setting
1+2
2+3
38
The RESET button on the xPC560S Mini‐Module is
enabled
The RESET button on the xPC560S Mini‐Module is
disabled
Effect
The RESET signal on the MPC560xS processor is pulled
up to 5V
The RESET signal on the MPC560xS processor is pulled
up to 3.3V

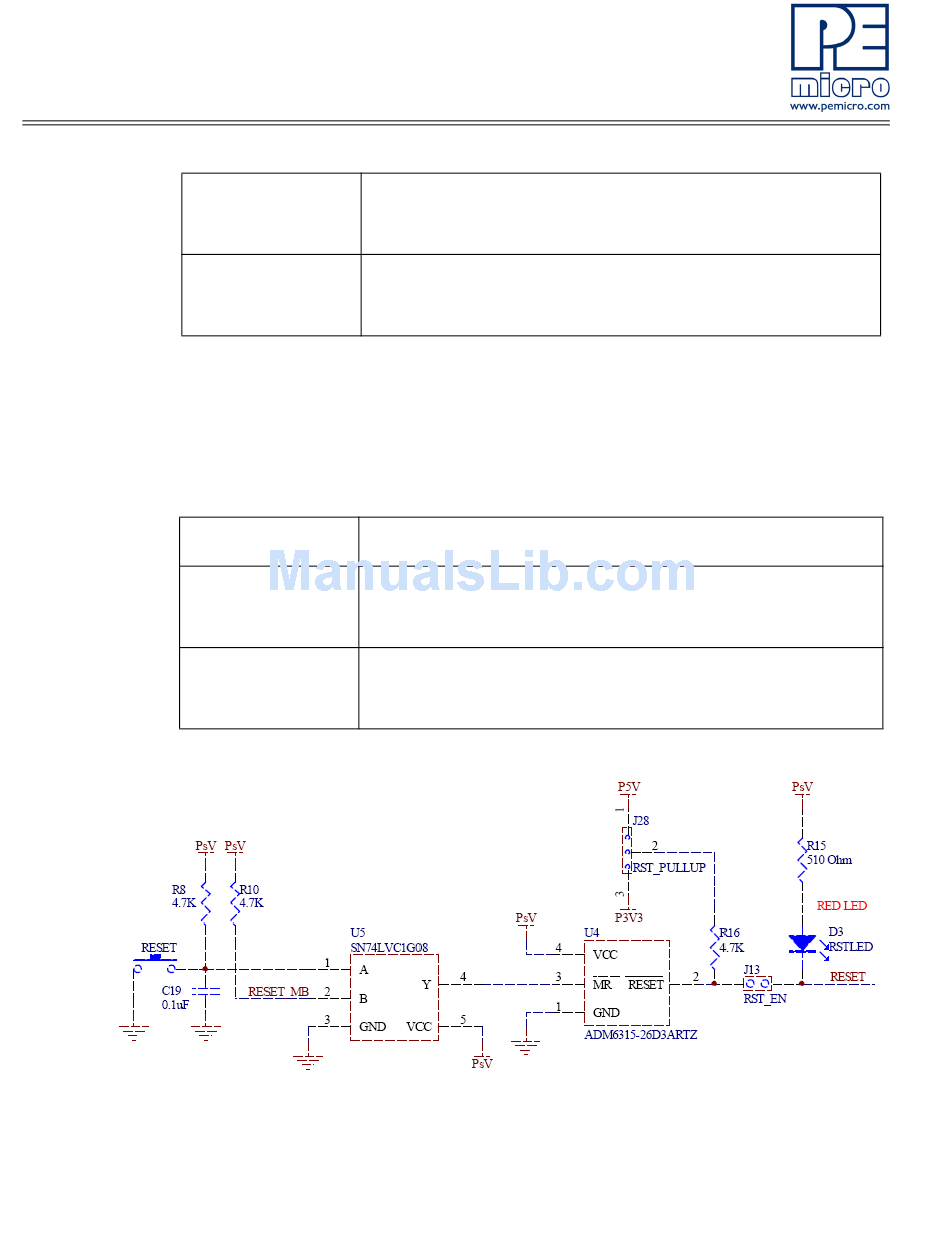

Figure 4-3: Reset circuitry schematic
xPC560S EVB User Manual
