J27 – Reset Pullup
The RESET signal of the MPC560xS processor can be pulled up to a logic
high voltage.
Jumper Setting
1+2
2+3
xPC560S EVB User Manual
The RESET button on the xPC560S Mini‐Module is
enabled
The RESET button on the xPC560S Mini‐Module is
disabled
Effect
The RESET signal on the MPC560xS processor is
pulled up to 5V
The RESET signal on the MPC560xS processor is
pulled up to 3.3V

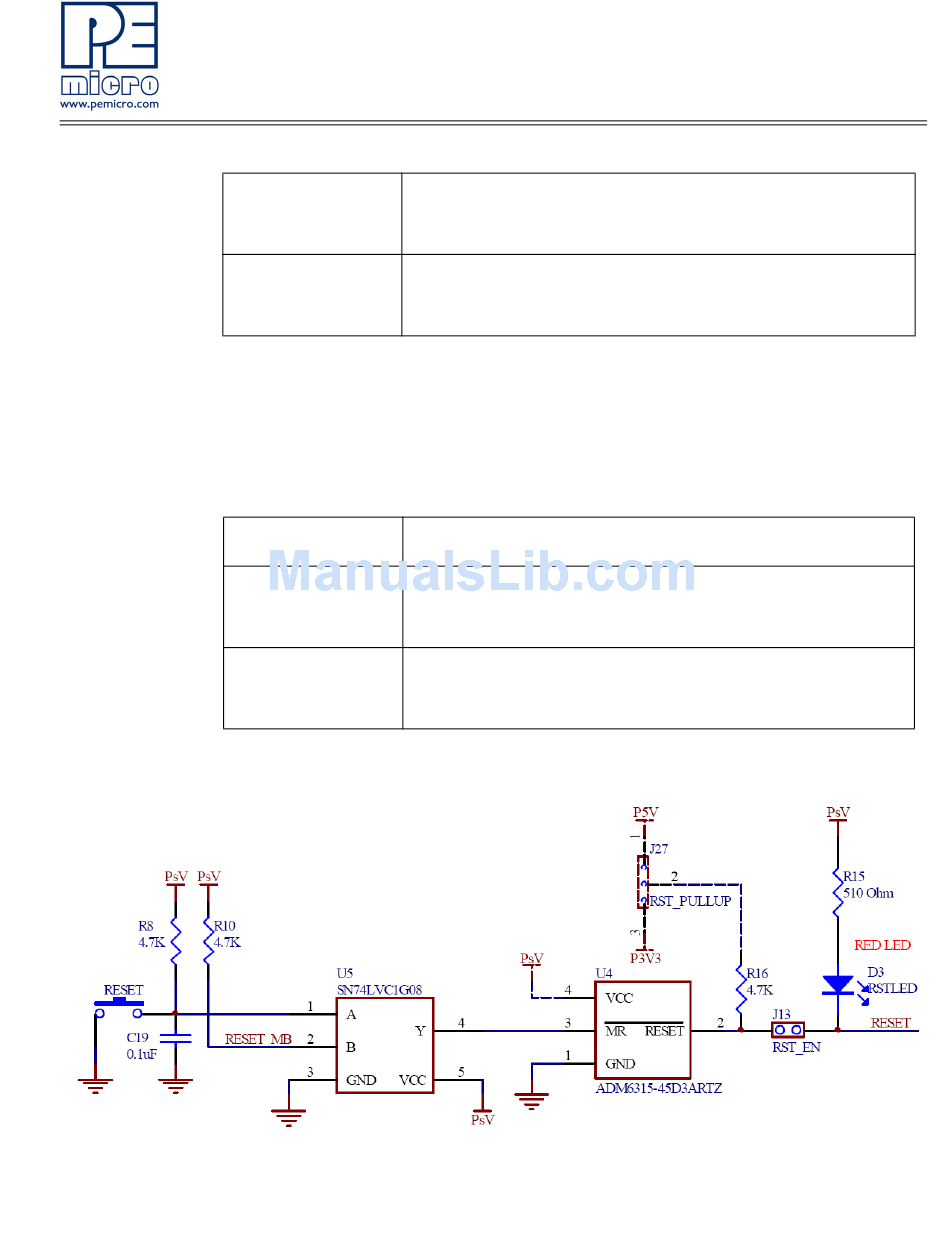

Figure 5-3: Reset circuitry schematic
49
