The software update process is complete when the power status LED on the unit is showing
a steady blue light.

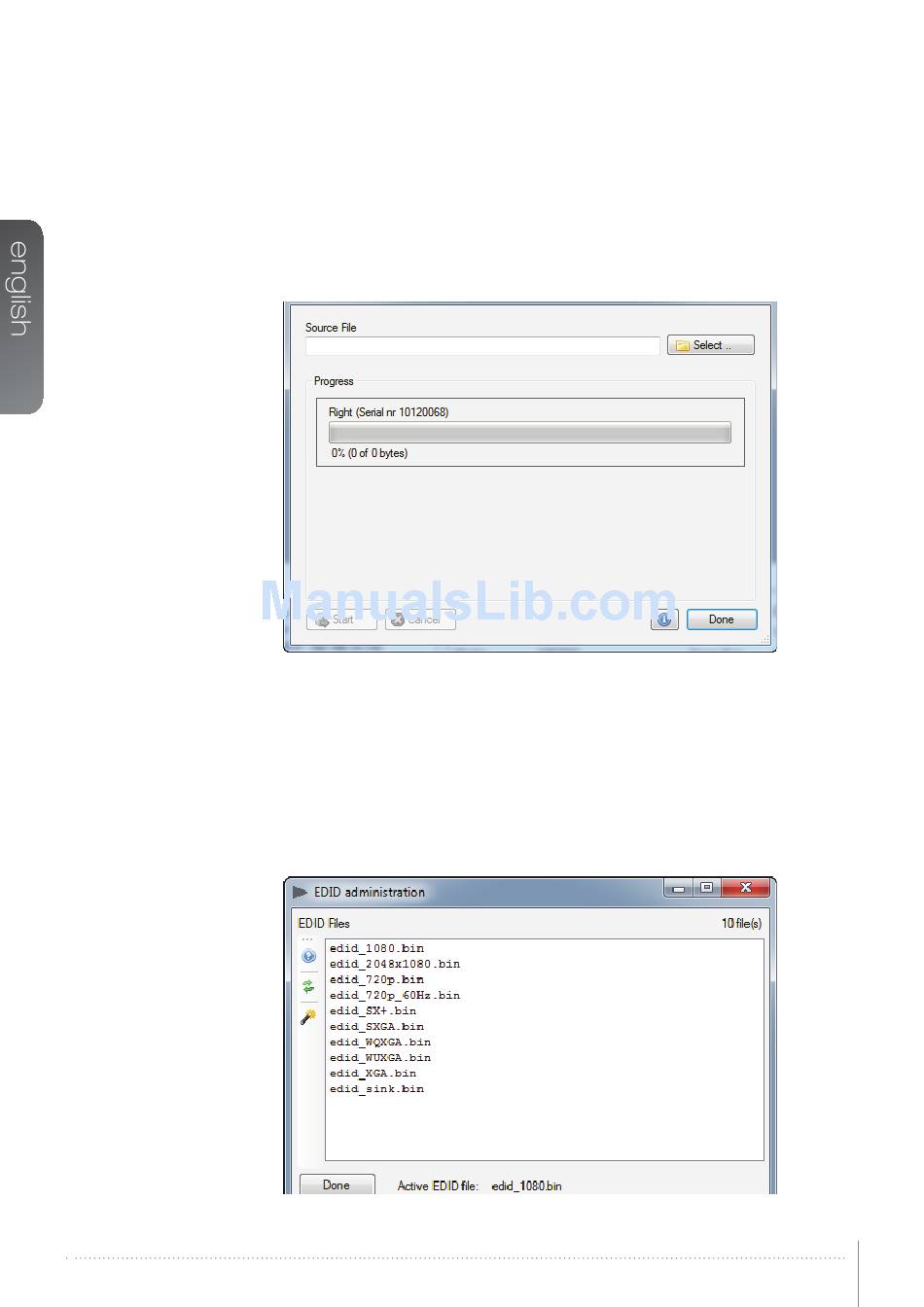

Figure 5-8. FUSION software upgrade window.

5.2.8 Controlling EDID information

The unit defaults to giving the image generator either WUXGA or WQXGA EDID data
depending on the version of the multi image processing system unit that is in use. EDID
data can also be configured manually, or the unit can pass EDID data information from the
projector directly to the image generator (referred to as "EDID sink").
To manipulate EDID setting, select Maintenance > EDID Administrator. Select the EDID file
you want to use and click "Activate". Verify that the selected EDID is applied, see bottom of
window Active EDID File. For passing the EDID data directly from the projector to the image
generator, select edid_sink.bin. The EDID Administration window is shown in Figure 5-9.
Figure 5-9. EDID Administration.
