5 Getting to know the GUI
5.1 FusionNet.site
Figure 5-1 gives an overview of FusionNet.site. The application has four main areas of
interest:
• The File menu located in the top-left corner.
• The "Site Devices" overview on the left hand side of the GUI.
• Control, status, monitoring and timed operations overviews for one or more selected
devices on the right hand side.
• Status messaging window at the bottom.

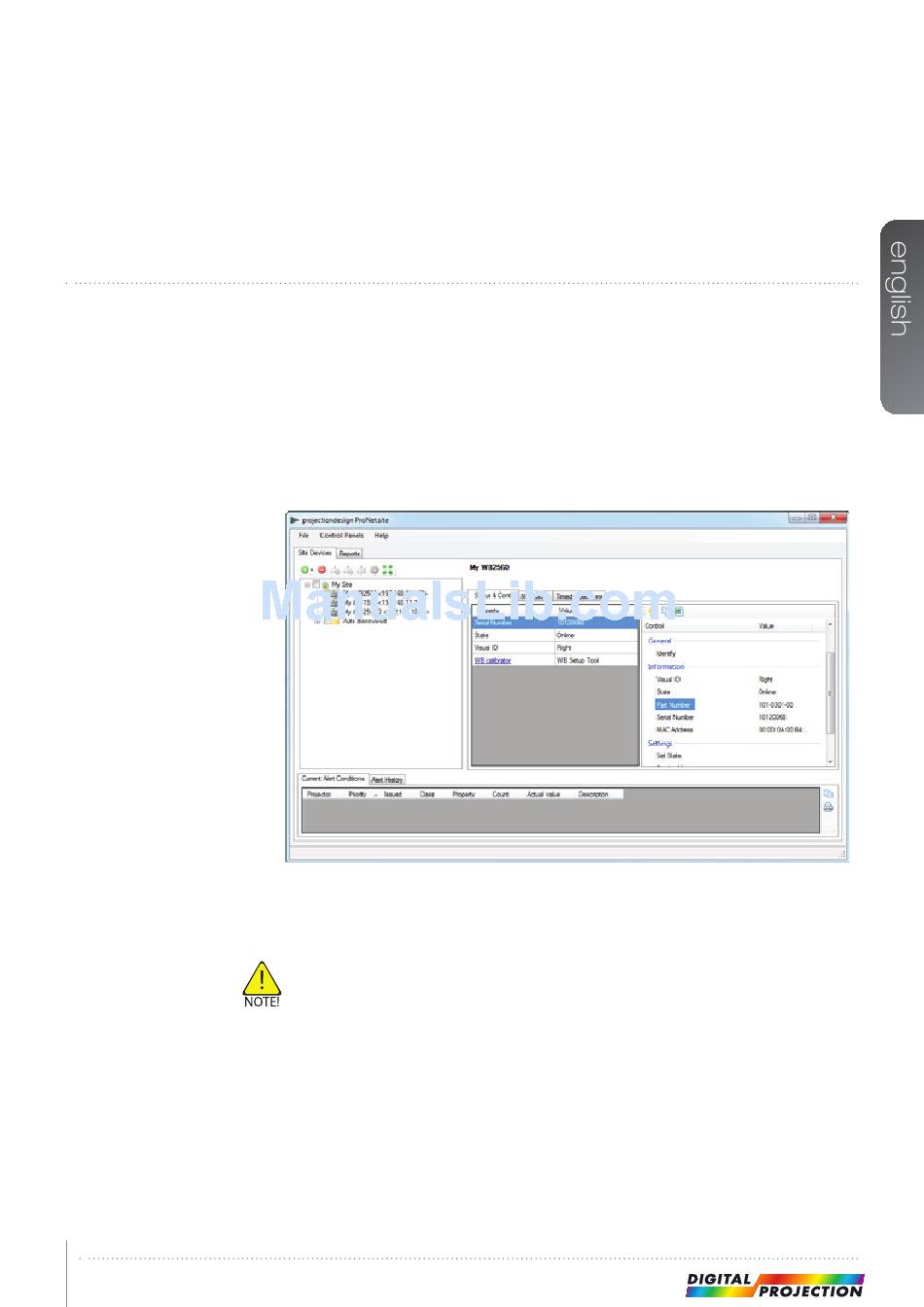

Figure 5-1. Overview of FusionNet.site
To start the multi image processing system calibrator (referred to as FUSION - warp & blend
in menus) plugin, select "Control Panels" > "Predefined" > "FUSION calibrator".
Note! License key required to see more than one device (see section 4.7).
Enter key and other information as per provided key.
