FUSION - Installation and setup
The FUSION processing system contains the following main components:
• An Image Generator (IG) with one or more channels (outputs) (not provided by
Digital Projection).
• One multi image unit per channel
• One projector per channel
• A PC for setup and control
• Optional CAD tool for designing systems (not provided by Digital Projection)

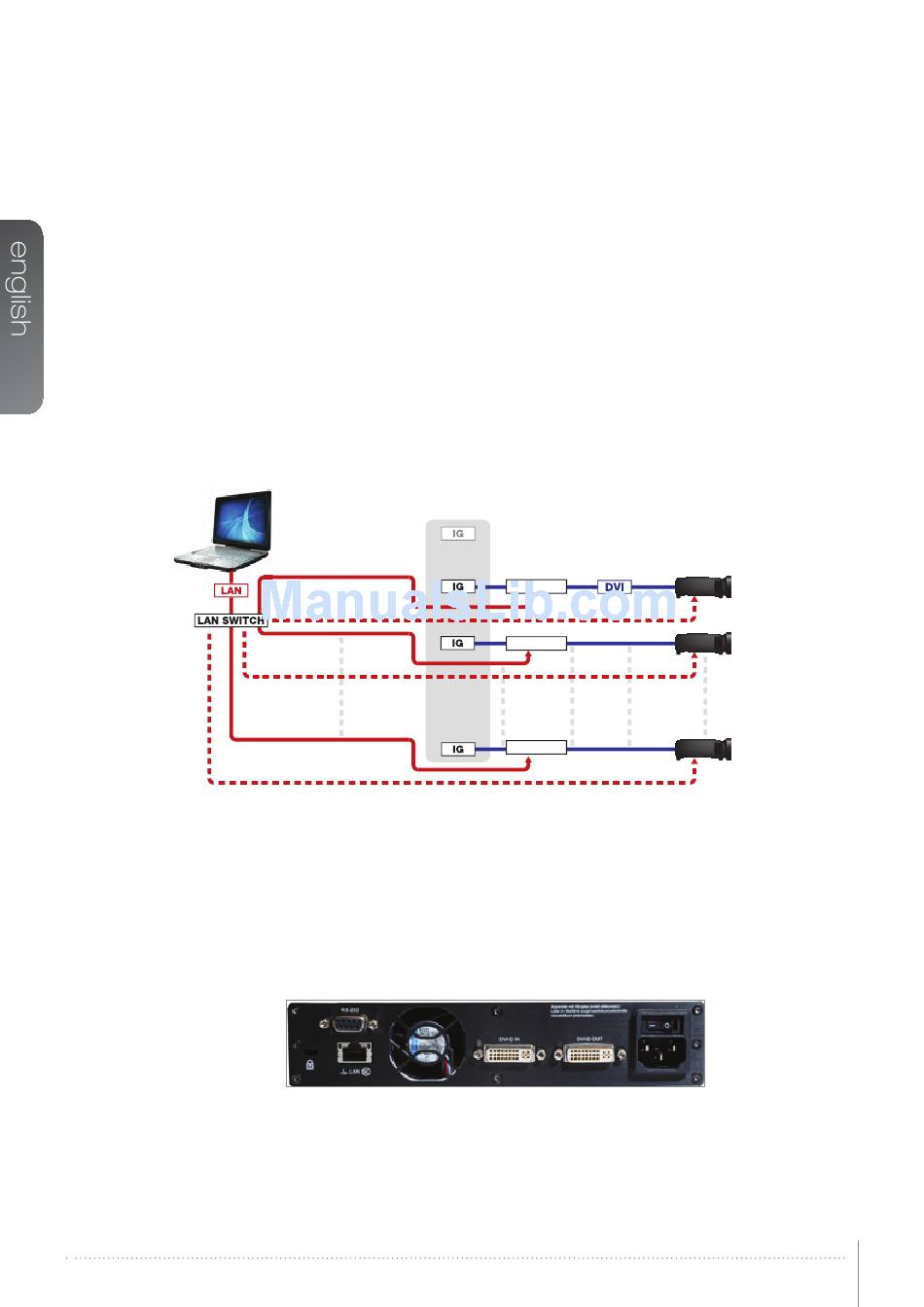

Figure 4-1 shows a complete system overview of a multi image processing setup.
Figure 4-1. FUSION processing system overview
Connector Panel:
• Power connector/switch
• 2 x DVI-connectors
• LAN-connector
• RS232-connector (for service only - do not use)
• Kensington Lock slot
Figure 4-2. Connector panel
PROCESSOR
PROCESSOR
PROCESSOR
