Mounting on a non-Track Type Door

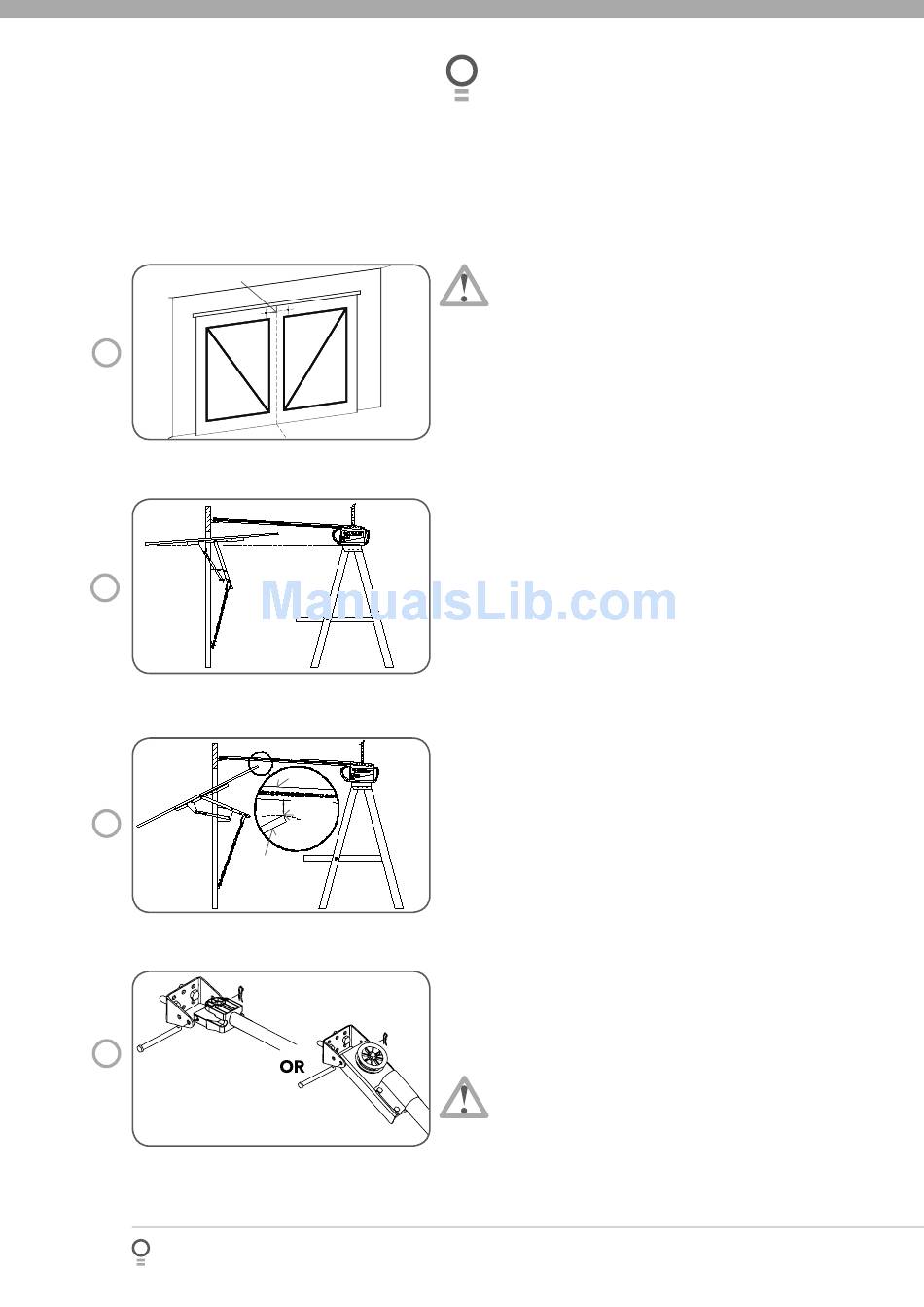

Centre of Door
fi g 12
fi g 13
fi g 14
fi g
15
Pipe support assembly
GDO-7v2 SecuraLift®
14
Step ladder
Tube
highest
25mm
point
of door
travel
Door
Step ladder
Owner Installation Instructions
WARNING: Make sure concrete, brick wall or
timber lintels are solid and sound so as to form a
secure mounting platform.
Step 9 - Determine the Door's Centre
a. Find the centre of the door and mark this location
both above the door and on top of the door.
b. Draw two lines 21.5mm either side of this (Fig. 12).
Step 10 - Prepositioning the Opener
a. Raise the door to open position.
b. Rest the opener on the top edge of the door with
end of the rail against the wall (Fig. 13).
c. Support the powerhead level with the lowest point
of the open door (Fig. 13).
NOTE: Do not slide rail along the face of the door.
Step 11 - Mounting the Tube Rail
a. Close the door slowly. The rail will be elevated by
the top edge of the door as it moves.
b. Stop the door when it is at its highest point of travel.
Allow 25mm additional height for clearance between
the door and the track (Fig. 14).
c. Support the Rail in this position and close the door
d. The height determined in Step 11(b) will be the
height at which to mount the wall bracket.
e. Centre the bracket along the line detemined in Step
9
f. Using the bracket as a template, mark a minimum of
two holes and drill with appropriate size bit. For a
more secure fi tting, the wall bracket can be anchored
using more than two holes.
g. Secure the bracket to the wall using:
IF CONCRETE OR BRICK - 8mm or 5/6 loxins or
IF TIMBER - wood screw #20 or equivalent
(minimum 50mm long).
h. Attach the bracket to the support pipe assembly with
the 90mm long clevis pin (Fig. 15) and a snap pin.
Step 12 - Secure the Powerhead to the Ceiling
a. Secure the perforated angle (not supplied) to the
ceiling above where powerhead's mounting holes
will be. See (Fig.11) for a representative mounting.
b. Connect the powerhead to the ceiling mounted
perforated angle with M8x20mm screws and nuts.
Strips should not extend more than 18mm below
centre of powerhead mounting holes (Fig. 11).
WARNING: The opener must be securely
fastened to structural supports, otherwise opener
failure may ensue causing serious personal injury
and/or property damage.
dynabolts.
