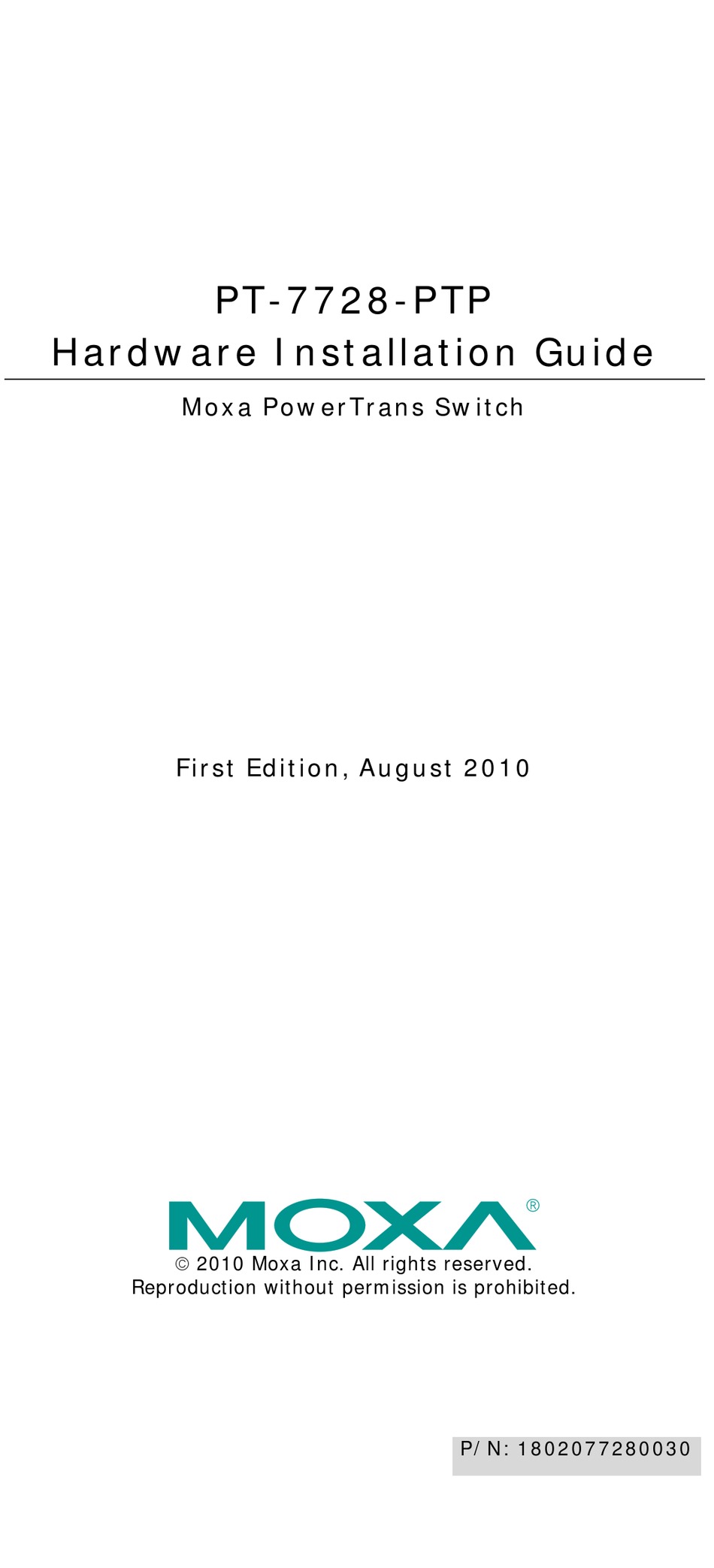

PT-7728-PTP

Hardware Installation Guide

Moxa PowerTrans Switch
First Edition, August 2010
 2010 Moxa Inc. All rights reserved.
Reproduction without permission is prohibited.
P/N: 1802077280030

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PT-7728-PTP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Moxa Technologies PT-7728-PTP

  • Page 1: Hardware Installation Guide

    PT-7728-PTP Hardware Installation Guide Moxa PowerTrans Switch First Edition, August 2010  2010 Moxa Inc. All rights reserved. Reproduction without permission is prohibited. P/N: 1802077280030...
  • Page 2: Package Checklist

    Package Checklist The Moxa PowerTrans switch is shipped with the following items. If any of these items are missing or damaged, please contact your customer service representative for assistance. • 1 Moxa PowerTrans Switch • Hardware Installation Guide • CD-ROM with User’s Manual and SNMP MIB file •...
  • Page 3: Dimensions (Unit = Mm)

    Dimensions (unit = mm) PT-7728-PTP C O N S O L E Fast Ethernet Interface Modules (slots 1, 2, and 3) 96.8 96.8 96.8 PM-7200-8TX PM-7200-1LSC6TX PM-7200-4MSC2TX/PM-7200-4SSC2TX 96.8 96.8 96.8 PM-7200-6MSC/PM-7200-6SSC PM-7200-2MSC4TX/PM-7200-2SSC4TX PM-7200-4MST2TX 96.8 96.8 96.8 PM-7200-6MST PM-7200-2MST4TX PM-7200-1MST6TX 96.8 96.8...
  • Page 4: Rack Mounting

    WARNING Safety First! Be sure to disconnect the power cord before installing and/or wiring your Moxa PowerTrans Switch. Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowable for each wire size.
  • Page 5: Wiring The Relay Contact

    Wiring the Relay Contact Each PT switch has one relay output. Refer to the next section for detailed instructions on how to connect the wires to the terminal block connector, and how to attach the terminal block connector to the terminal block receptor.
  • Page 6: Led Indicators

    LED Indicators System LEDs Color State Description STAT GREEN System has passed self-diagnosis test on boot-up and is ready to run. Blinking System is undergoing the self-diagnosis test. System failed self-diagnosis on boot-up. PWR1 AMBER Power is being supplied to the main module’s power input PWR1.
  • Page 7: Specifications

    Mode LEDs Color State Description LNK/ACT GREEN The corresponding module port’s link is active. Blinking The corresponding module port’s data is being transmitted. The corresponding module port’s link is inactive. SPEED GREEN The corresponding module port’s data is being transmitted at 10 Mbps.
  • Page 8: Physical Characteristics

    -40 to 85°C (-40 to 185°F) Ambient Relative 5 to 95% (non-c ondensing) Humidity. Warranty 5 years Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505...
