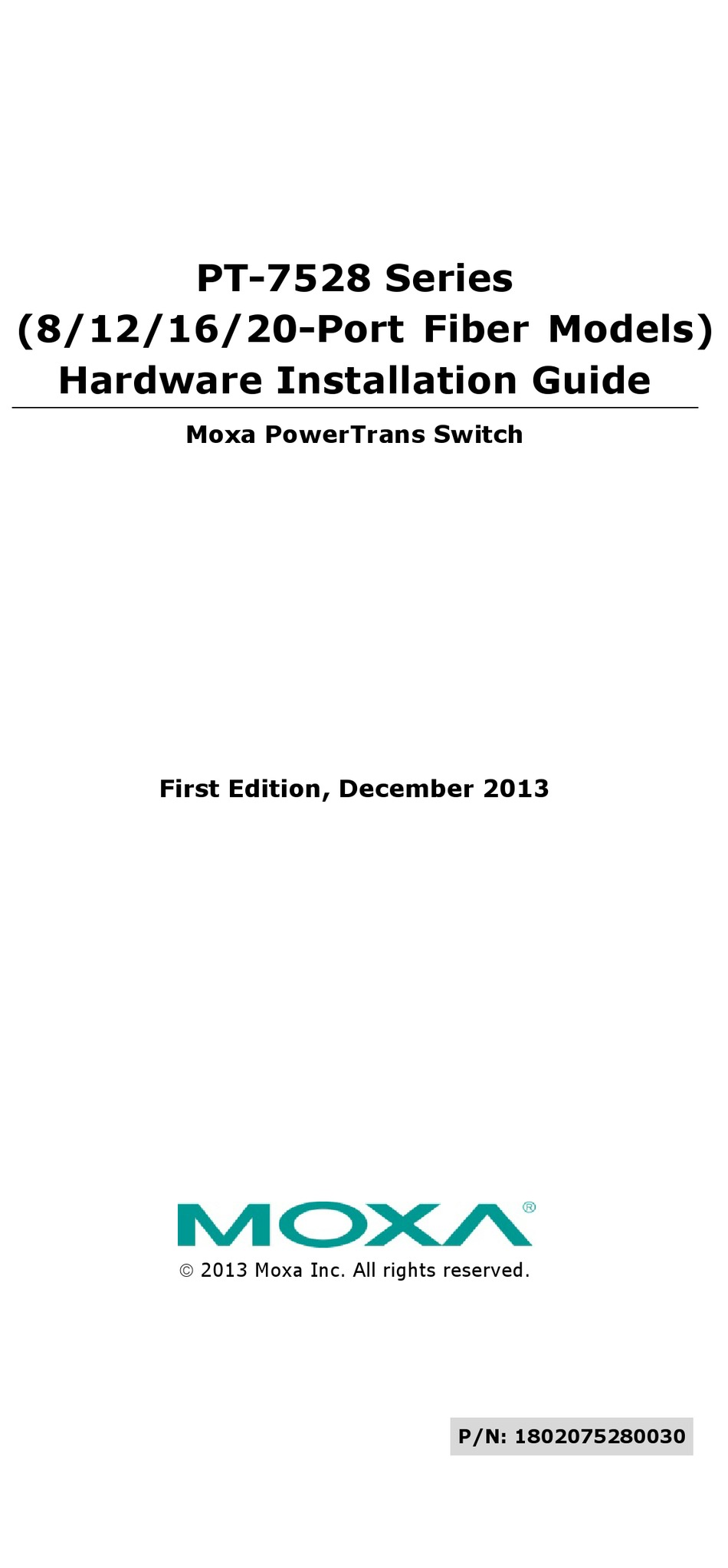

PT-7528 Series
(8/12/16/20-Port Fiber Models)

Hardware Installation Guide

Moxa PowerTrans Switch
First Edition, December 2013
 2013 Moxa Inc. All rights reserved.
P/N: 1802075280030

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerTrans PT-7528 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Moxa Technologies PowerTrans PT-7528 Series

Summary of Contents for Moxa Technologies PowerTrans PT-7528 Series

  • Page 1: Hardware Installation Guide

    PT-7528 Series (8/12/16/20-Port Fiber Models) Hardware Installation Guide Moxa PowerTrans Switch First Edition, December 2013  2013 Moxa Inc. All rights reserved. P/N: 1802075280030...

  • Page 2: Package Checklist

    Package Checklist The Moxa PowerTrans switch is shipped with the following items. If any of these items are missing or damaged, please contact your customer service representative for assistance. • 1 Moxa PowerTrans switch • USB cable (Type A male to Type B male) •...

  • Page 3: Dimensions; Unit = Mm (In)

    Dimensions; unit = mm (in) Rack Mounting Use six screws to attach the PT switch to a standard rack. Rack Mounting Kit PT-7528 Side View NOTE Two additional rack-mount ears can be ordered as an option. Use them to secure the rear of the chassis in high-vibration environments.

  • Page 4: Wiring Requirements

    Wiring Requirements WARNING Safety First! • Be sure to disconnect the power cord before installing and/or wiring your Moxa PowerTrans Switch. • Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowable for each wire size.

  • Page 5: Wiring The Redundant Power Inputs

    Wiring the Redundant Power Inputs Each PT switch has two sets of power inputs: power input 1 and power input 2. STEP 1: Insert the dual set positive/negative DC wires into PWR1 and PWR2 terminals (+  pins 1, 7; –  pins 3, 9), or insert the L/N AC wires into PWR1 and PWR2 terminals (L ...

  • Page 6: Usb Console Connection

    USB Console Connection The PT-7528 series has one USB console port (type B connector), located on the top panel. Use the USB cable (provided in the product package) to connect the PT-7528’s console port to your PC’s USB port and install the USB driver (available in the software CD) on your PC.

  • Page 7: Led Indicators

    LED Indicators Color State Description STATE GREEN System has passed self-diagnosis test on boot-up and is ready to run. Blinking • 1 blink every sec: The switch is being reset • 1 blink every 2 sec: The switch is connected to the ABC-02-USB.
  • Page 8 CPLR/ GREEN One of the following situations exists: TAIL • The switch’s coupling function is enabled to form a back-up path. • The switch is set as the Tail of the Turbo Chain. • POST S.W. Fail (+Stat on and Fault blinking) Blinking One of the following situations exists:...

  • Page 9: Specifications

    Specifications Technology Standards IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1X for Authentication...

  • Page 10: Rack Mounting Instructions

    Physical Characteristics Housing IP40 protection, metal case Dimensions 440 x 44 x 325 mm (17.32 x 1.73 x 12.76 in) (W x H x D) Weight 4900 g Installation 19” rack mounting Standards and Certifications Safety UL 508 Power Automation IEC 61850-3, IEEE 1613 Road Traffic NEMA TS2 Rail Traffic...

  • Page 11: Restricted Access Locations

    Restricted Access Locations • This equipment is intended to be used in Restricted Access Locations, such as a computer room, with access limited to SERVICE PERSONAL or USERS who have been instructed on how to handle the metal chassis of equipment that is so hot that special protection may be needed before touching it.
