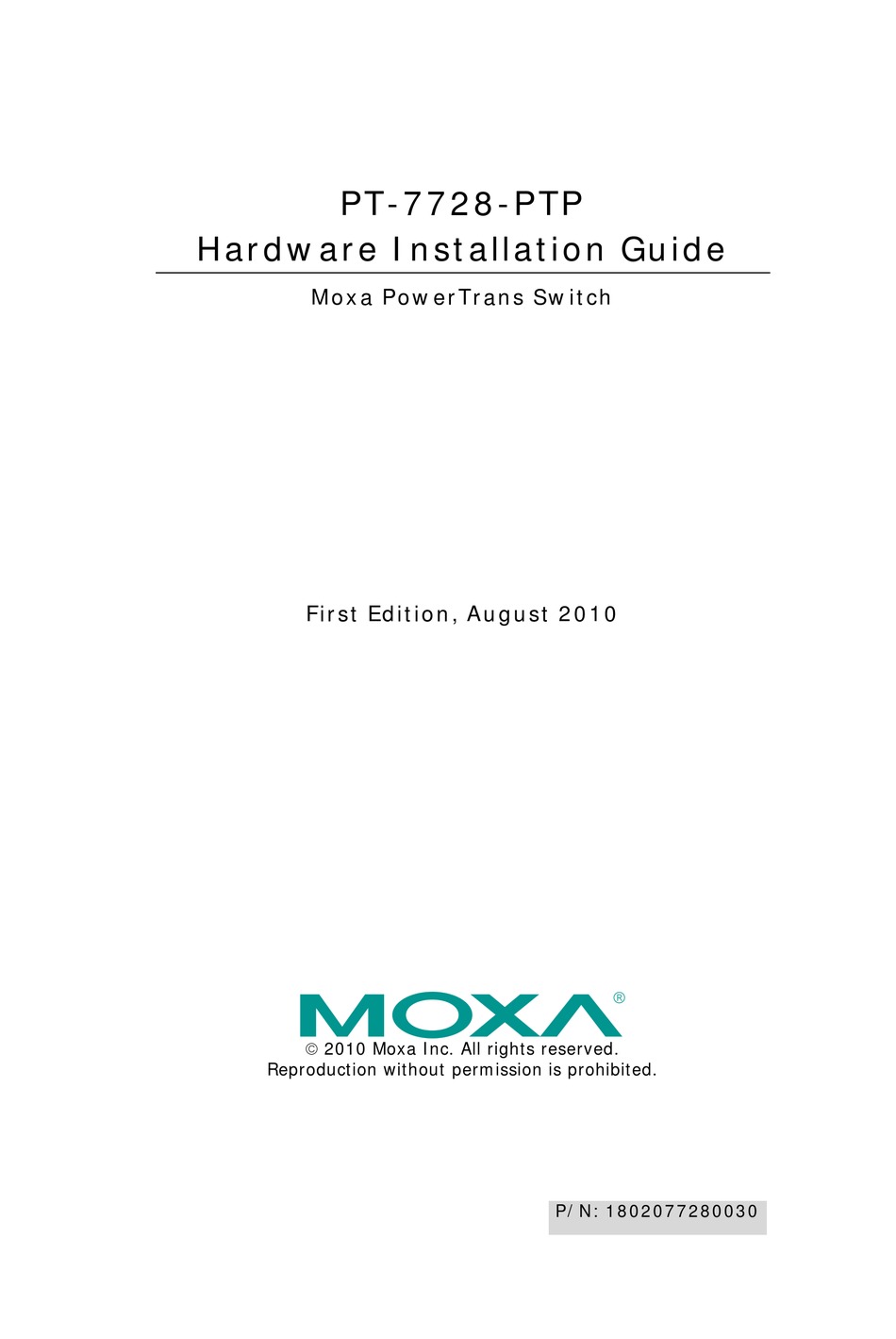

- Page 1 PT-7728-PTP Hardware Installation Guide Moxa PowerTrans Switch First Edition, August 2010 2010 Moxa Inc. All rights reserved. Reproduction without permission is prohibited. P/N: 1802077280030...
-
Page 2: Package Checklist
Package Checklist The Moxa PowerTrans switch is shipped with the following items. If any of these items are missing or damaged, please contact your customer service representative for assistance. • 1 Moxa PowerTrans Switch • Hardware Installation Guide • CD-ROM with User’s Manual and SNMP MIB file •... -
Page 3: Dimensions (Unit = Mm)
Dimensions (unit = mm) PT-7728-PTP C O N S O L E Fast Ethernet Interface Modules (slots 1, 2, and 3) 96.8 96.8 96.8 PM-7200-8TX PM-7200-1LSC6TX PM-7200-4MSC2TX/PM-7200-4SSC2TX 96.8 96.8 96.8 PM-7200-6MSC/PM-7200-6SSC PM-7200-2MSC4TX/PM-7200-2SSC4TX PM-7200-4MST2TX 96.8 96.8 96.8 PM-7200-6MST PM-7200-2MST4TX PM-7200-1MST6TX 96.8 96.8 96.8 PM-7200-8SFP... - Page 4 Gigabit Ethernet Interface Modules (for slot 4) 86.6 86.6 86.6 PM-7200-2GTXSFP PM-7200-4GTXSFP PM-7200-1BNC2MST-PTP Rack Mounting Use four screws to attach the PT switch to a standard rack. NOTE Two additional rack-mount ears can be ordered as an option. Use them to secure the rear of the chassis in high-vibration environments.
-
Page 5: Wiring The Relay Contact
Wiring the Relay Contact Each PT switch has one relay output. Refer to the next section for detailed instructions on how to connect the wires to the terminal block connector, and how to attach the terminal block connector to the terminal block receptor. -
Page 6: Led Indicators
LED Indicators System LEDs Color State Description STAT GREEN System has passed self-diagnosis test on boot-up and is ready to run. Blinking System is undergoing the self-diagnosis test. System failed self-diagnosis on boot-up. PWR1 AMBER Power is being supplied to the main module’s power input PWR1. -
Page 7: Specifications
Mode LEDs Color State Description LNK/ACT GREEN The corresponding module port’s link is active. Blinking The corresponding module port’s data is being transmitted. The corresponding module port’s link is inactive. SPEED GREEN The corresponding module port’s data is being transmitted at 10 Mbps. - Page 8 Optical Fiber (100BaseFX) Distance Multi-mode 0 to 5 km, 1300 nm (50/125 μm, 800 MHz*km) 0 to 4 km, 130 0 nm (62.5/125μm, 500 MHz*km) Single-mode 0 to 40 km, 1310 nm (9/125μm, 3.5 PS/(nm*km) 0 to 80 km, 1550 nm (9/125um, 19 PS/(nm*k Min.
