Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
PT-7528 Series
Moxa PowerTrans Switch
Edition 3.1, July 2018
Technical Support Contact Information
www.moxa.com/support
 2018 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802075280023
*1802075280023*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerTrans PT-7528-24TX-WV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

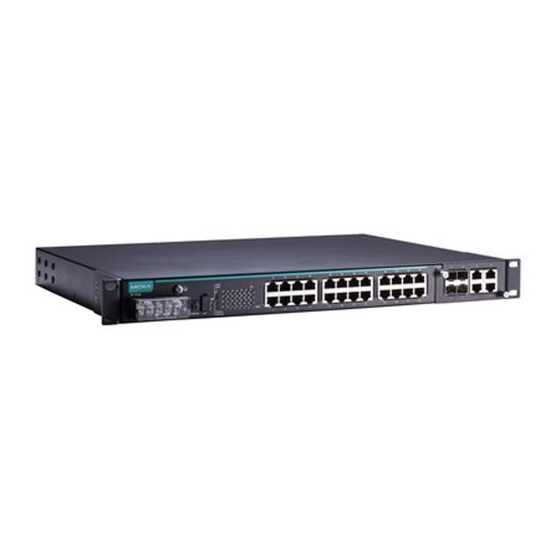

Summary of Contents for Moxa Technologies PowerTrans PT-7528-24TX-WV

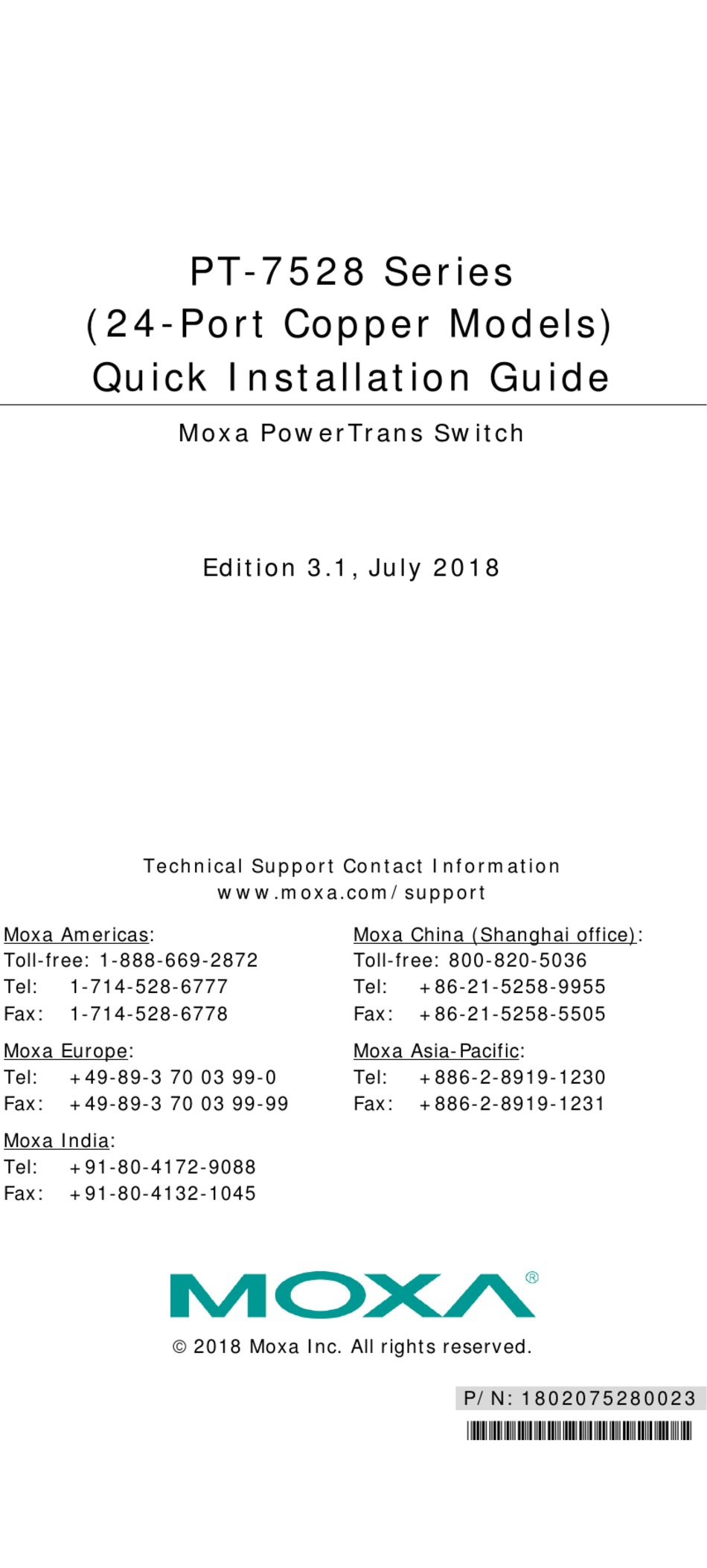

  • Page 1 PT-7528 Series (24-Port Copper Models) Quick Installation Guide Moxa PowerTrans Switch Edition 3.1, July 2018 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0...
  • Page 2: Package Checklist

    Package Checklist The Moxa PowerTrans switch is shipped with the following items. If any of these items are missing or damaged, please contact your customer service representative for assistance. • 1 Moxa PowerTrans switch • USB cable (Type A male to Type B male) •...
  • Page 3 Dimensions; unit = mm (in) Fiber Ethernet Interface Modules - 3 -...
  • Page 4: Rack Mounting

    Rack Mounting Use six screws to attach the PT switch to a standard rack. Rack Mounting Kit PT-7528 Side View NOTE Two additional rack-mount ears can be ordered as an option. Use them to secure the rear of the chassis in high-vibration environments.
  • Page 5: Wiring The Relay Contact

    Wiring the Relay Contact Each PT-7528 switch provides two types of relay output, at the user’s option. Refer below for detailed instructions on how to connect the wires to the terminal block connector, and how to attach the terminal block connector to the terminal block receptor.
  • Page 6: Usb Console Connection

    Gigabit Ethernet 1000BaseTX Cabling The IEEE 802.3ab Gigabit Ethernet standard defines 1000 Mbps Ethernet communications over distances of up to 100 meters using all 4 pairs in category 5 (or higher) balanced unshielded twisted-pair cabling. For wiring guidelines, system designers and integrators should refer to the Telecommunications Industry Association (TIA) TIA/EIA-568-A wiring standard that characterizes minimum cabling performance specifications required for proper Gigabit Ethernet operation.
  • Page 7: The Reset Button

    ABC-02-USB Installation Plug the ABC-02-USB into the USB storage port of the Moxa PT-7528 series. We suggest attaching the ABC-02-USB to a wall with an M4 screw. USB Storage Port (Type A Connector) Pinouts Description VCC (+5 V) D- (Data-) D+ (Data+) GND (Ground) The Reset Button...
  • Page 8 Color State Description One of the following situations exists: • The signal contact is open. • ABC Loading/Saving Failure. • The port has been disabled because the ingress multicast and broadcast packets FAULT exceed the ingress rate limit. • Incorrect loop connection in a single switch.
  • Page 9: Specifications

    Color State Description FAULT + Rotate MSTR/HEAD Blinking ABC-02-USB is importing/exporting files. + CPLR/TAIL Sequentially STATE + FAULT + 2 blinks per sec: The switch is being Blinking MSTR/HEAD discovered/located by MXview. + CPLR/TAIL Port’s 100 Mbps link is active GREEN Blinking Data is transmitting at 100 Mbps...
  • Page 10 Alarm Contact One relay output with current carrying capacity of 3 A @ 30 VDC or 3 A @ 240 VAC Optical Fiber (100BaseFX) Distance Multi-mode: 0 to 5 km, 1300 nm (50/125μm, 800 MHz*km) 0 to 4 km, 1300 nm (62.5/125μm, 500 MHz*km) Single mode: 0 to 40 km, 1310 nm (9/125μm, 3.5 PS/(nm*km)) Min.
  • Page 11: Rack Mounting Instructions

    Rack Mounting Instructions 1. Elevated Operating Ambient: If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer.
