Moxa Technologies PowerTrans PT-7728 Series Hardware Installation Manual

PowerTrans Switch
PT-7728/7828 Series

Hardware Installation Guide

Third Edition, May 2008
Package Checklist
The Moxa PowerTrans switch is shipped with the following items. If any
of these items are missing or damaged, please contact your customer
service representative for assistance.
1 Moxa PowerTrans Switch
Hardware Installation Guide
CD-ROM with User's Manual and SNMP MIB file
Moxa Product Warranty Statement
RJ45 to DB9 console port cable
Protective caps for unused ports
2 rack-mount ears

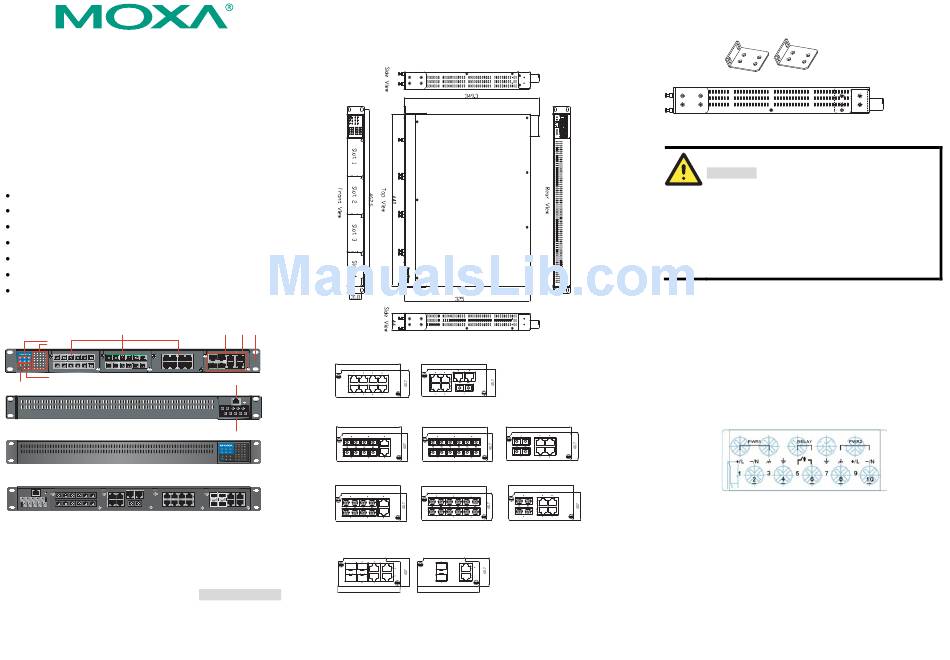

Panel Layouts
6
1
3
M1 M2 M3
2 2 4 4 6 6 8 8 2 4 6 2 4 6 2 4 6
M1 M1
1 1 3 3 5 5 7 7
STAT STAT PWR1 PWR1 PWR2 PWR2
2 2 4 4 6 6 8 8
FAULT FAULT MASTER MASTER COUPLER COUPLER M2 M2
1 1 3 3 5 5 7 7 TX RX TX RX TX RX TX RX TX RX TX RX
6 6
LNK/ACT LNK/ACT SPEED SPEED FDX/HDX FDX/HDX 2 2 4 4 8 8
M3 M3
1 1 3 3 5 5 7 7
RING PORT RING PORT COUPLER PORT COUPLER PORT
MODE MODE
1 1 2 2 3 3 4 4 M4 M4
1 3 5 1 3 5 1 3 5
2
Front view (Front Cabling)
4
PT-7728
Rear view (Front Cabling)
PT-7728
Front view (Rear Cabling)
M1 M2 6 7 M3
2 4 6 2 4 6
2 4
CONSOLE
TX RX
1 3 5 1 3 5 1 3 5
Rear view (Rear Cabling)
1. System status LEDs
2. Interface Module mode LEDs
3. Interface Module port LEDs
4. Push-button switch to select mode for Interface Module
5. Model Name
6. Fast Ethernet Interface Modules
— 1 —
7. Gigabit Ethernet Interface Modules
8. Serial Console port
9. 10-pin terminal block for power inputs, and relay output
10. Rack Mounting Kit
Dimensions (unit = mm)
7 5 10
Fast Ethernet Interface Modules (for slots 1, 2, and 3)
M4 PT-7728
8
2 4 2
4
96.8
3
1 3 1
7
8
PM-7200-8TX
96.8
9
STAT PWR1 PWR2
FAULT MASTER COUPLER
LNK/ACT SPEED FDX/HDX
COMUPLER
MODE RING PORT PORT
PM-7200-4MSC2TX/PM-7200-4SSC2TX
96.8
M4 PT-7728
8 2 4 2
4
3
7 1 3 1
PM-7200-4MST2TX
Gigabit Ethernet Interface Modules (for slot 4)
86.6
P/N: 1802077280012
PM-7200-4GTXSFP
96.8
PM-7200-1LSC6TX
96.8 96.8
PM-7200-6MSC/PM-7200-6SSC PM-7200-2MSC4TX/PM-7200-2SSC4TX
96.8
96.8
PM-7200-2MST4TX
PM-7200-6MST
86.6
PM-7200-2GTXSFP
— 2 —
Rack Mounting
Use four screws to attach the PT switch to a standard rack.
Wiring Requirements
WARNING
Safety First!
Be sure to disconnect the power cord before installing
and/or wiring your Moxa PowerTrans Switch.
Calculate the maximum possible current in each power
wire and common wire. Observe all electrical codes
dictating the maximum current allowable for each wire
size.
If the current goes above the maximum ratings, the wiring
could overheat, causing serious damage to your equipment.
Grounding the Moxa PowerTrans Switch
Grounding and wire routing help limit the effects of noise due to
electromagnetic interference (EMI). Run the ground connection from the
ground screw to the grounding surface prior to connecting devices.
Wiring the Power Inputs
The PT series of switches supports dual redundant power supplies:
"Power Supply 1 (PWR1)" and "Power Supply 2 (PWR2)". The
connections for PWR1, PWR2 and the RELAY are located on the
terminal block. The front view of the terminal block connectors are
shown below.
Wiring the Relay Contact
Each PT switch has one relay output. Refer to the next section for
detailed instructions on how to connect the wires to the terminal block
connector, and how to attach the terminal block connector to the terminal
block receptor.
— 3 —
