- Page 1 Moxa PowerTrans Switch PT-7324 Series User’s Manual www.moxa.com/product First Edition, January 2008 © 2008 Moxa Inc., all rights reserved. Reproduction without permission is prohibited.
-
Page 2: Copyright Notice
Information in this document is subject to change without notice and does not represent a commitment on the part of Moxa. Moxa provides this document “as is,” without warranty of any kind, either expressed or implied, including, but not limited to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to the products and/or the programs described in this manual, at any time. -
Page 3: Table Of Contents
Table of Contents Chapter 1 Introduction ....................1-1 Overview ..........................1-2 Package Checklist......................... 1-2 Features ..........................1-2 Chapter 2 Getting Started ..................2-1 RS-232 Console Configuration (115200, None, 8, 1, VT100) ..........2-2 Configuration Using a Web Browser..................2-4 Chapter 3 Featured Functions ...................3-1 Configuring Basic Settings.................... -
Page 4: Chapter 1 Introduction

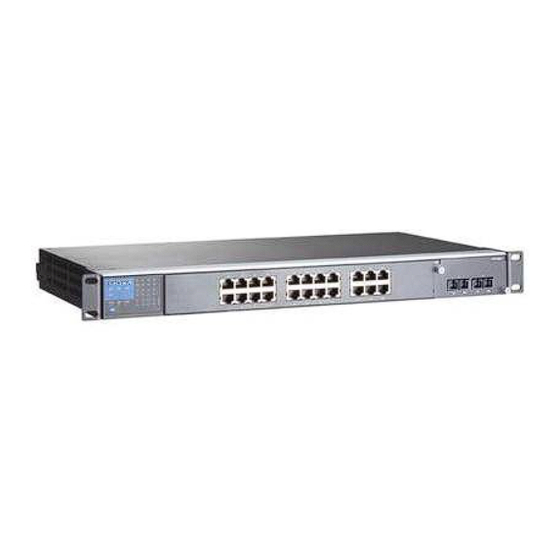

Introduction Chapter 1 Welcome to the Moxa PowerTrans Switch PT-7324 Series, the rack-mount Smart Ethernet Switch designed especially for connecting Ethernet-enabled devices in industrial field applications. The following topics are covered in this chapter: Overview Package Checklist Features... -
Page 5: Overview
Package Checklist Each Moxa PT-7324 Series switch is shipped with the following items: 1 Moxa PowerTrans Switch Hardware Installation Guide CD-ROM with User’s Manual and Windows Utility... -
Page 6: Chapter 2 Getting Started
Getting Started Chapter 2 In this chapter, we explain how to access your Moxa PowerTrans Switch for the first time. There are two ways to access the switch: by serial console or web browser. The serial console connection method, which requires using a short serial cable to connect the switch to a PC’s COM port, can be used if you do not know the switch’s IP address. -
Page 7: Rs-232 Console Configuration (115200, None, 8, 1, Vt100)
1. You can connect to the PT-7324 using a web browser and serial console simultaneously. 2. Recommendation—when connecting to the PT-7324 using a web browser, do NOT simultaneously connect using the serial console. By following this advice, you can maintain better control over how your Moxa PowerTrans Switch is managed. NOTE We recommend using Moxa PComm Terminal Emulator, which can be downloaded free of charge from Moxa’s website. - Page 8 PT-7324 Series User’s Manual Getting Started 3. The Communication Parameter page of the Property window opens. Select the appropriate COM port for Console Connection, 115200 for Baud Rate, 8 for Data Bits, None for Parity, and 1 for Stop Bits.
-
Page 9: Configuration Using A Web Browser
PT-7324 Series User’s Manual Getting Started 7. Press 1 to modify the PT-7324’s network parameters, or press 2 to reset the PT switch’s configuration to the factory defaults. Configuration Using a Web Browser The PT-7324’s web browser interface provides a convenient way to modify the switch’s configuration and access the built-in monitoring and network administration functions. - Page 10 PT-7324 Series User’s Manual Getting Started NOTE By default, the PT-7324’s Password is not set (i.e., is blank). You may need to wait a few moments for the web page to be downloaded to your computer. Use the menu tree on the left side of the window to open the function pages to access each of the...
-
Page 11: Chapter 3 Featured Functions
Featured Functions Chapter 3 This chapter explains how to access a Moxa PowerTrans Switch’s various configuration, monitoring, and administration functions. There are two ways to access these functions: serial console and web browser. The serial console connection method, which requires using a short serial cable to connect the PT-7324 to a PC’s COM port, can be used if you do not know the... -
Page 12: Configuring Basic Settings
PT-7324 Series User’s Manual Featured Functions Configuring Basic Settings The Basic Settings group includes the most commonly used settings required by administrators to maintain and control the PT-7324. Port Port settings are included to give the user control over Port Access, Port Transmission Speed, Flow Control, and Port Type (MDI or MDIX). -
Page 13: Network
PT-7324 Series User’s Manual Featured Functions Description Setting Description Factory Default Max. 63 Specify an alias for each port, and assist the Characters administrator in remembering important None information about the port. E.g., PLC 1 Speed Setting Description Factory Default Allows the port to use the IEEE 802.3u... -
Page 14: Password
PT-7324 Series User’s Manual Featured Functions Switch IP Address Setting Descriptions Factory Default IP Address of the Identifies the PT-7324 on a TCP/IP 192.168.127.253 PT-7324 network. Switch Subnet M Setting Descriptions Factory Default Identifies the type of network th Subnet mask of PT-7324 is connected to (e.g.,... -
Page 15: System File Update
PT-7324 Series User’s Manual Featured Functions Password Setting Description Factory Default Old Password (Max. Type current password when changing None 16 Characters) the password New Password (Max. Type new password when changing the None 16 Characters) password Retype Password If you type a new password in the (Max. -
Page 16: Local Import/Export
PT-7324 Series User’s Manual Featured Functions Step 4: After firmware upgrade process is finished, click Re Login to re-log in to the PT-7324. Local Import/Export The PT-7324 supports saving your configuration file to a local host to allow other PT-7324 switches to use the same configuration at a later time. -
Page 17: Using Bandwidth Management
A single device should not be allowed to occupy unlimited bandwidth, especially when the device malfunctions. For example, broadcast storms could be caused by an incorrect topology or malfunctioning device. The PT-7324 series not only prevents broadcast storms, but can also configure the ingress rate of unicast/multicast/broadcast packets, giving administrators full control of the limited bandwidth, and preventing unpredictable faults before they occur. -
Page 18: Using Traffic Prioritization
PT-7324 Series User’s Manual Featured Functions Ingress Setting Description Factory Default Select the ingress rate for all packets from the Ingress rate following options: 8M, 4M, 2M, 1M, 512K, 256K, Not Limited 128K, Not Limited. Using Traffic Prioritization The PT switch’s traffic prioritization capability provides Quality of Service (QoS) to your network by making data delivery more reliable. -
Page 19: How Traffic Prioritization Works
PT-7324 Series User’s Manual Featured Functions Provide predictable throughput for multimedia applications, such as video conferencing or voice over IP, and minimize traffic delay and jitter. Improve network performance as the amount of traffic grows. This will save cost by reducing the need to keep adding bandwidth to the network. - Page 20 PT-7324 Series User’s Manual Featured Functions Advantages of DiffServ over IEEE 802.1D are: Configure how you want your switch to treat selected applications and types of traffic by assigning various grades of network service to them. No extra tags are required in the packet.
-
Page 21: Configuring Traffic Prioritization
PT-7324 Series User’s Manual Featured Functions Configuring Traffic Prioritization QoS Classification The PT-7324 supports inspection of layer 3 TOS and/or layer 2 QoS tag information to determine how to classify traffic packets. Queuing Mechanism Setting Description Factory Default The PT-7324 has 2 priority queues. In the weight fair scheme, an 16:1, 8:1 or 4:1 weighting is applied to the two priorities. -
Page 22: Using Virtual Lan
PT-7324 Series User’s Manual Featured Functions CoS Settings Setting Description Factory Default Set the mapping table of different CoS values to 2 Enable/Disable Disable different egress queues. TOS Settings Setting Description Factory Default Set the mapping table of different TOS values to 2 different egress queues. -
Page 23: Using Virtual Lans
Using Virtual LANs Port-based VLAN and the Moxa PowerTrans Switch The PT-7324 supports Port-based VLAN. When using this function, you must first define which ports should join the VLAN. Once set, devices can be moved around the network without affecting to which VLAN the device is connected. -
Page 24: Using Auto Warning
PT-7324 Series User’s Manual Featured Functions NOTE Port-based VLAN settings only affect one switch. The PT-7324 can have a maximum of 24 VLAN settings. VLAN Table Using this table, you can review the created VLAN groups and joined ports. Using Auto Warning Since industrial Ethernet devices are often located at remote areas of a system, these devices will not always know what is happening elsewhere on the network. -
Page 25: Configuring Relay Warning
PT-7324 Series User’s Manual Featured Functions Configuring Relay Warning The Auto Relay Warning function uses relay output to alert the user when certain user-configured events take place. There are two basic steps required to set up the Relay Warning function: 1. -
Page 26: Using The Monitor
PT-7324 Series User’s Manual Featured Functions Port Event Warning e-mail is sent when… Link-on The port is connected to another device. The port is disconnected (e.g., the cable is pulled Link-off out, or the opposing device shuts down). Override Relay Warning Settings Click the checkbox to override the relay warning setting temporarily. -
Page 27: Monitor By Switch
PT-7324 Series User’s Manual Featured Functions Monitor by Switch Access the Monitor by selecting System from the left selection bar. Monitor by System allows the user to check the combined data transmission activity of all of the PT-7324’s ports. Recall that TX Packets are packets sent out from the PT-7324, RX Packets are packets received from connected devices, and Error Packets are packets that did not pass TCP/IP’s error checking algorithm. -
Page 28: Pt-7324 Configurator Gui
PT-7324 Configurator is a comprehensive Windows-based GUI that is used to configure and maintain multiple Moxa PowerTrans Switches. A suite of useful utilities is available to help you locate PT-7324 switches attached to the same LAN as the PC host (regardless of whether or not you know the IP addresses of the switches), connect to an PT-7324 whose IP address is known, or modify the network configurations of one or multiple PT-7324 switches. -
Page 29: Starting Pt-7324 Configurator
The Moxa Configurator window will open, as shown. Broadcast Search Use the Broadcast Search utility to search the LAN for all Moxa PowerTrans Switches that are connected to the LAN. Note that since the search is done by MAC address, Broadcast Search will not be able to locate PT-7324s connected outside the PC host’s LAN. -
Page 30: Search By Ip Address
PT-7324 Series User’s Manual Configurator GUI Search by IP address This utility is used to search for PT-7324s one at a time. Note that the search is conducted by IP address, so you should be able to locate any PT-7324 that is properly connected to your LAN, WAN, or even the Internet. -
Page 31: Export Configuration
PT-7324 Series User’s Manual Configurator GUI Export Configuration The Export Configuration utility is used to save the entire configuration of a particular PT-7324 to a text file. Do the following to export a configuration: 1. Highlight the switch (from the Server list in the Configurator window’s left pane), and then... -
Page 32: Import Configuration
Import Configuration function. Do the following to import a configuration: 1. Highlight the server (from the Moxa PowerTrans Switch list in the Configurator window’s left pane), and then click the Import toolbar icon , or select Import Configuration from the Configuration menu. -
Page 33: Unlock Server
There are six possible responses under the Status column. The Status of a Moxa PowerTrans Switch indicates how the switch was located (by Moxa PowerTrans Switch Configurator), and what type of password protection it has. - Page 34 PT-7324 Series User’s Manual Configurator GUI 1. Enter the switch’s User Name and Password when prompted, and then click OK. 2. When the Unlock status window reports Progress as OK, click the Close button on the upper right corner of the window.
-
Page 35: Appendix A Specifications
Specifications Appendix A Technology Standards IEEE802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1p Flow control IEEE802.3x flow control, back pressure flow control Interface Fast Ethernet 10/100BaseT(X) or 100BaseFX (SC/ST connector) Gigabit Ethernet 10/100/1000BaseT(X), 1000BaseSX/LX/LHX/ZX (SFP slot, LC connector) System LED Indicators STAT, PWR1, PWR2, FAULT Module LED Indicators LNK/ACT, FDX/HDX, SPEED Alarm Contact... - Page 36 PT-7324 Series User’s Manual Specifications Environmental Operating Temp. -40 to 85°C (-40 to 185°F) Storage Temp. -40 to 85°C (-40 to 185°F) Ambient Relative Humidity 5 to 95% (non-condensing) Regulatory Approvals Safety EN60950-1 (Pending) Power Automation IEC 61850-3, IEEE 1613...
