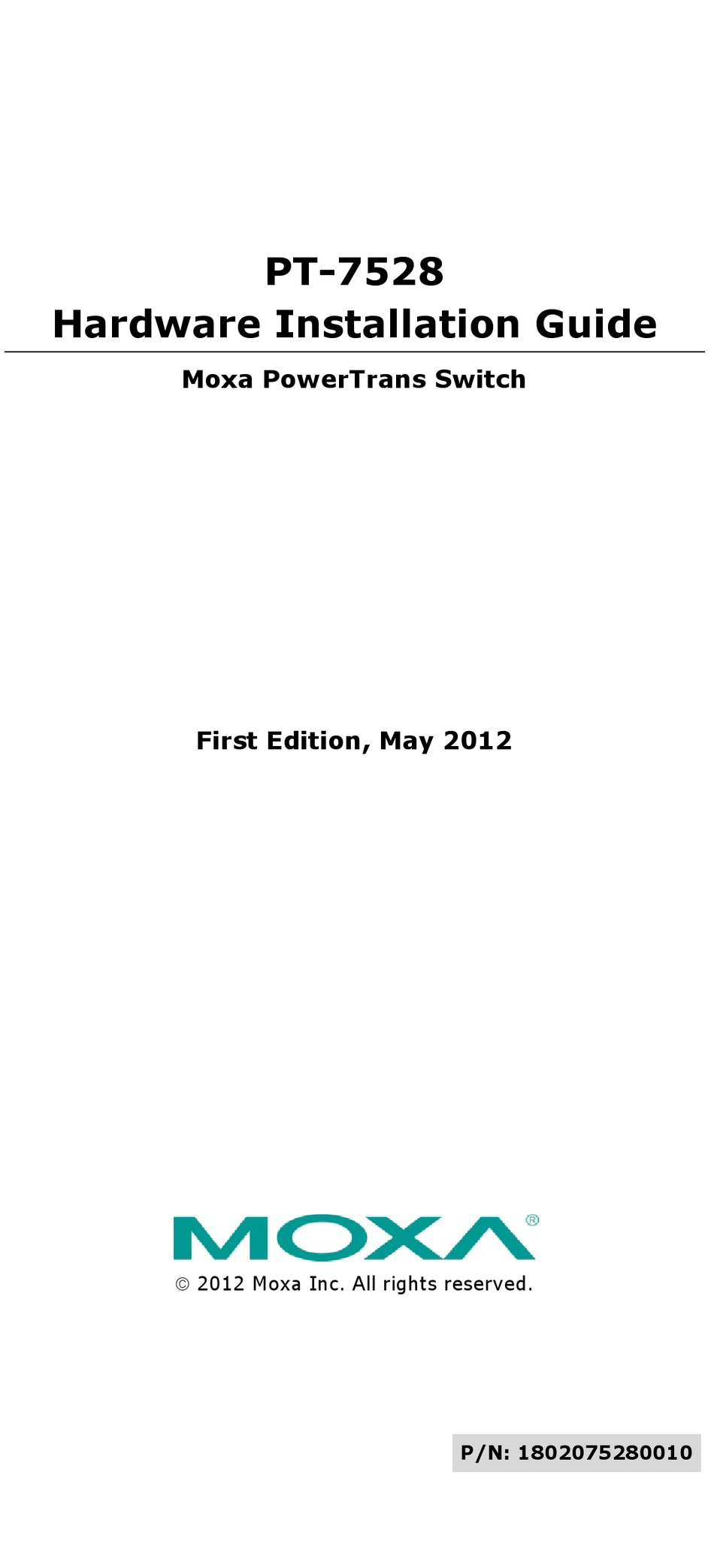

PT-7528

Hardware Installation Guide

Moxa PowerTrans Switch
First Edition, May 2012
 2012 Moxa Inc. All rights reserved.
P/N: 1802075280010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PT-7528 and is the answer not in the manual?

Questions and answers

Summary of Contents for Moxa Technologies PT-7528

  • Page 1: Hardware Installation Guide

    PT-7528 Hardware Installation Guide Moxa PowerTrans Switch First Edition, May 2012  2012 Moxa Inc. All rights reserved. P/N: 1802075280010...
  • Page 2: Package Checklist

    Package Checklist The Moxa PowerTrans switch is shipped with the following items. If any of these items are missing or damaged, please contact your customer service representative for assistance. • 1 Moxa PowerTrans Switch • Hardware Installation Guide • CD-ROM with User’s Manual and SNMP MIB file •...
  • Page 3: Dimensions (Unit = Mm)

    Dimensions (unit = mm) Front Cabling model Rear Cabling Model - 3 -...
  • Page 4: Fiber Ethernet Interface Modules

    Use six screws to attach the PT switch to a standard rack. Rack Mounting Kit PT-7528 Side View NOTE Two additional rack-mount ears can be ordered as an option. Use them to secure the rear of the chassis in high-vibration environments.
  • Page 5: Grounding Moxa Powertrans Switch

    Wiring the Relay Contact Each PT-7528 switch provides two types of relay output, at the user’s option. Refer below for detailed instructions on how to connect the wires to the terminal block connector, and how to attach the terminal block connector to the terminal block receptor.
  • Page 6: Led Indicators

    STEP 1: Insert the dual set positive/negative DC wires into PWR1 and PWR2 terminals (+  pins 1, 7; -  pins 3, 9). Or insert the L/N AC wires into PWR1 and PWR2 terminals (L  pin 1, 7; N  pin 3, 9) STEP 2: To keep the DC or AC wires from pulling loose, use a screwdriver to tighten the wire-clamp screws on the front of the terminal block connector.
  • Page 7: Specifications

    Port LED table Color State Description Port’s 100 Mbps link is active GREEN Blinking Data is transmitting at100 Mbps Port’s link is inactive Ports 1 to 24 Port’s 10 Mbps link is active AMBER Blinking Data is transmitting at10 Mbps Port’s link is inactive Port’s highest speed link is active Data is transmitting at highest...
  • Page 8 Physical Characteristics Housing IP40 protection, metal case Dimensions 440 x 44 x 325 mm (17.32 x 1.73 x 12.76 in.) (W x H x D) Weight 4900 g Installation 19” rack mounting Regulatory Approvals Safety UL60950-1, CSA C22.2 No. 60950-1, EN60950-1 Power Automaton IEC61850-3, IEEE 1613 FCC Part 15, CISPR (EN55022) class A...
