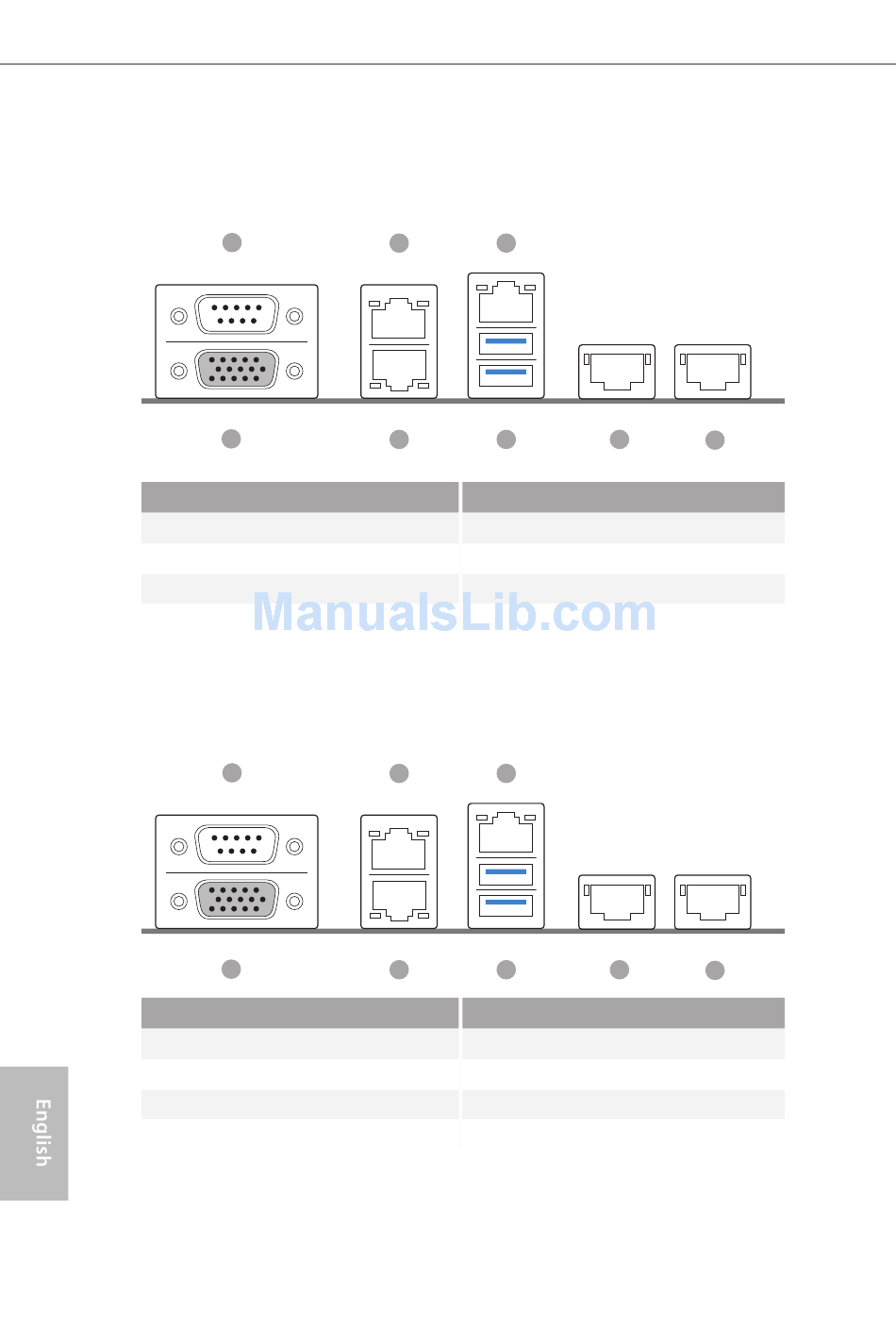

1.6 I/O Panel

EP2C61216D-2L2T
1
2
No. Description
1 Serial Port (COM1)
2 VGA Port (VGA1)
3 GLAN RJ-45 Port (LAN2)**
4 GLAN RJ-45 Port (LAN1)**
* System air-low is required for cooling the onboard Intel Ethernet Controller X540 heat sink.
EP2C61216D-4L
1
2
No. Description
1 Serial Port (COM1)
2 VGA Port (VGA1)
3 GLAN RJ-45 Port (LAN2)**
4 GLAN RJ-45 Port (LAN1)**
12
3 5
4 6
No. Description
5 LAN RJ-45 Port (IPMI_LAN)*
6 USB 3.0 Ports (USB3_1_2)
7 10G LAN RJ-45 Port (LAN3)**
8 10G LAN RJ-45 Port (LAN4)**
3 5
4 6
No. Description
5 LAN RJ-45 Port (IPMI_LAN)*
6 USB 3.0 Ports (USB3_1_2)
7 GLAN RJ-45 Port (LAN3)**
8 GLAN RJ-45 Port (LAN4)**
7 8
7
8
