Chapter 2 Installation
his is a SSI EEB form factor (12'' x 13'', 30.5 cm x 33.0 cm) motherboard. Before you install
the motherboard, study the coniguration of your chassis to ensure that the motherboard
its into it.
EP2C612 Series are dual socket motherboards that support Intel® Xeon® E5-2600 v3 Series
Processors. Please install a primary processor (BootStrap Processor) into "CPU1" socket
and then install a non-Primary Processor (Application Processors) into "CPU2" socket.
*For a single CPU, please install it into "CPU1" socket (framed by a square).
Make sure to unplug the power cord before installing or removing the motherboard. Failure
to do so may cause physical injuries to you and damages to motherboard components.
2.1 Screw Holes
Place screws into the holes indicated by circles to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.

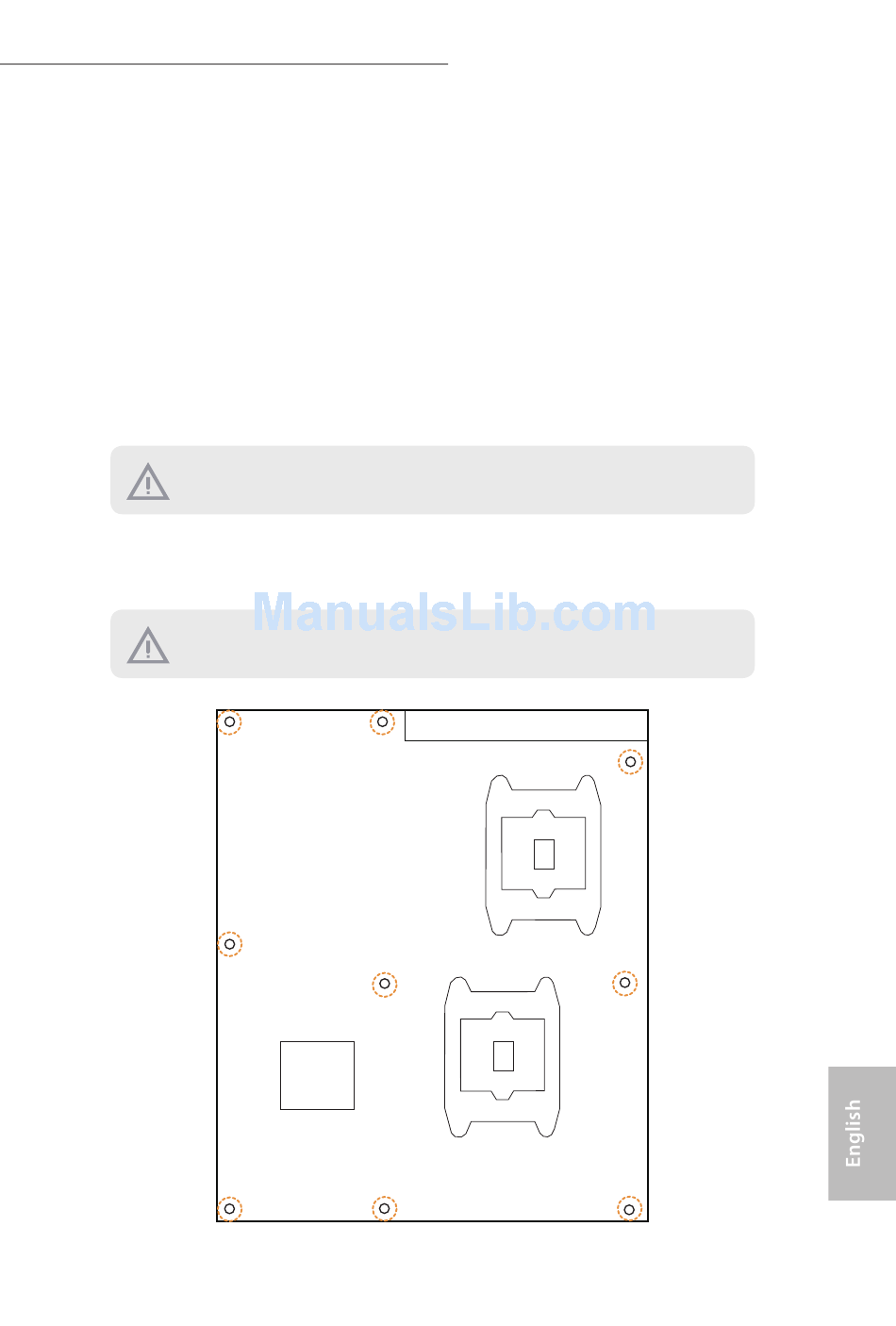

Screw Holes Location
Intel
C612
EP2C612D16-4L / EP2C612D16-2L2T
Rear I/O
17
