ASROCK EP2C612D16-4L User Manual page 40

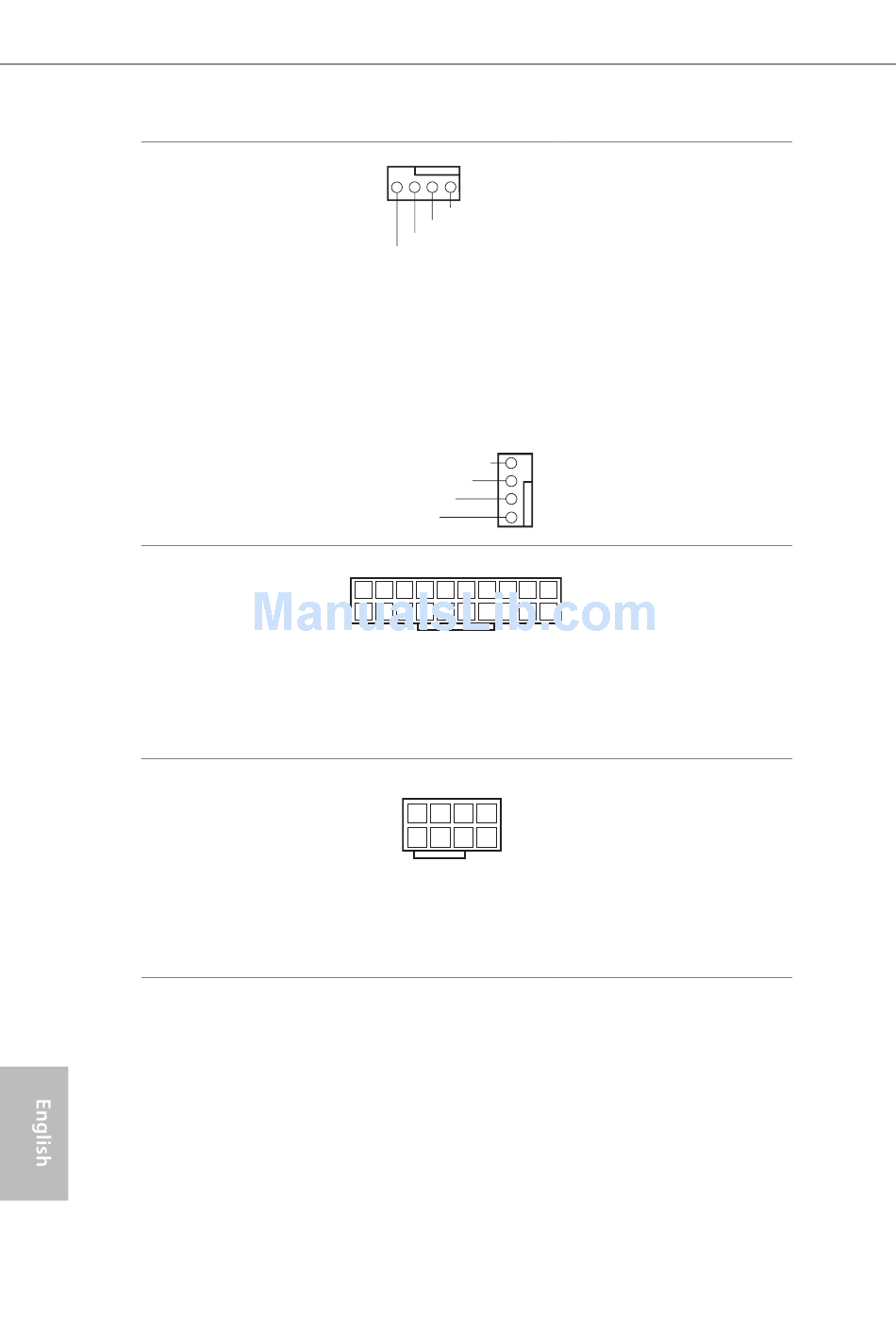

Front and Rear Fan
Connectors
(4-pin FRNT_FAN1)
(see p.7, No. 9)
(4-pin FRNT_FAN2)
(see p.7, No. 8)
(4-pin FRNT_FAN3)
(see p.7, No. 17)
(4-pin FRNT_FAN4)
(see p.7, No. 29)
(4-pin REAR_FAN1)
(see p.7, No. 59)
(4-pin REAR_FAN2)
(see p.7, No. 58)
ATX Power Connector
(24-pin ATXPWR1)
(see p.7, No. 7)
ATX 12V Power
Connectors
(8-pin ATX12V2)
(see p.7, No. 10)
(8-pin ATX12V3)
(see p.7, No. 5)
34
GND
+12V
FAN_SPEED
FAN_SPEED_CONTROL
FAN_SPEED_CONTROL
FAN_SPEED
+12V
GND
1
13
1 4
8
5
Please connect fan cables to the
fan connectors and match the
black wire to the ground pin.
All fans support Fan Control.
4
3
2
1
12
his motherboard provides a
24-pin ATX power connector.
To use a 20-pin ATX power
24
supply, please plug it along Pin
1 and Pin 13.
his motherboard provides
two 8-pin ATX 12V power
connectors.
