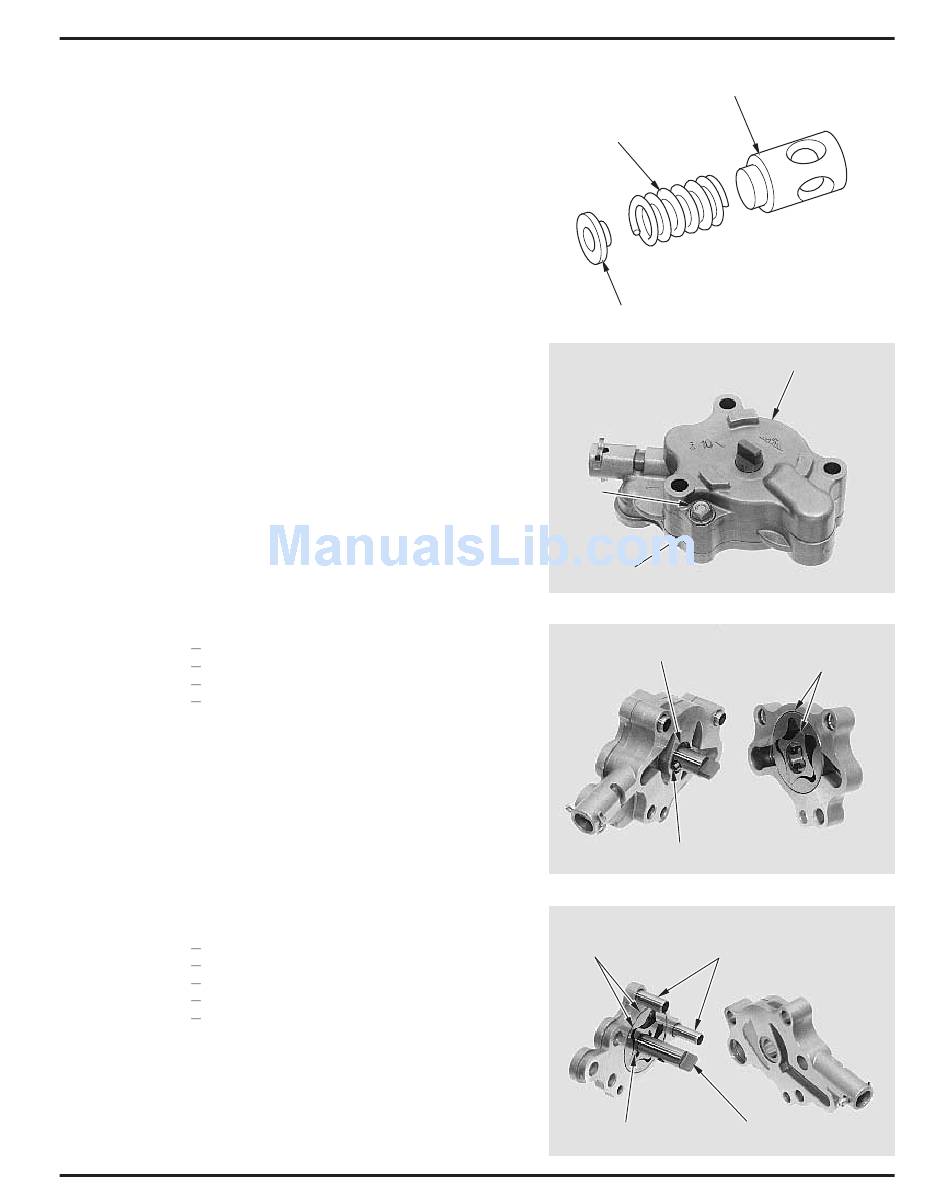

Check the spring and valve for wear or damage.
Install the valve, spring and stopper plate into the
oil pump, then insert a new cotter pin from the
pump body side (outside) and secure it.
DISASSEMBLY
Remove the bolt and separate the pump base from
the pump spacer.
Remove the following:
inner rotor
outer rotor
drive pin
thrust washer
Separate the pump body from the pump spacer.
Remove the following:
pump shaft
drive pin
dowel pins
inner rotor
outer rotor
