Returning The Server To The Normal Rack Position - Oracle Sun Fire X4240 Service Manual

FIGURE 6-2
6.3 Returning the Server to the Normal Rack
Position
If you extended the server to the maintenance position, use this procedure to return
the server to the normal rack position.
1. Release the slide rails from the fully extended position by pushing the release
tabs on the side of each rail (
2. While pushing on the release tabs, slowly push the server into the rack.
Ensure that the cables do not get in the way.
6-4 Sun Fire X4240 Server Service Manual • September 2010
Returning the Server to the Rack
).

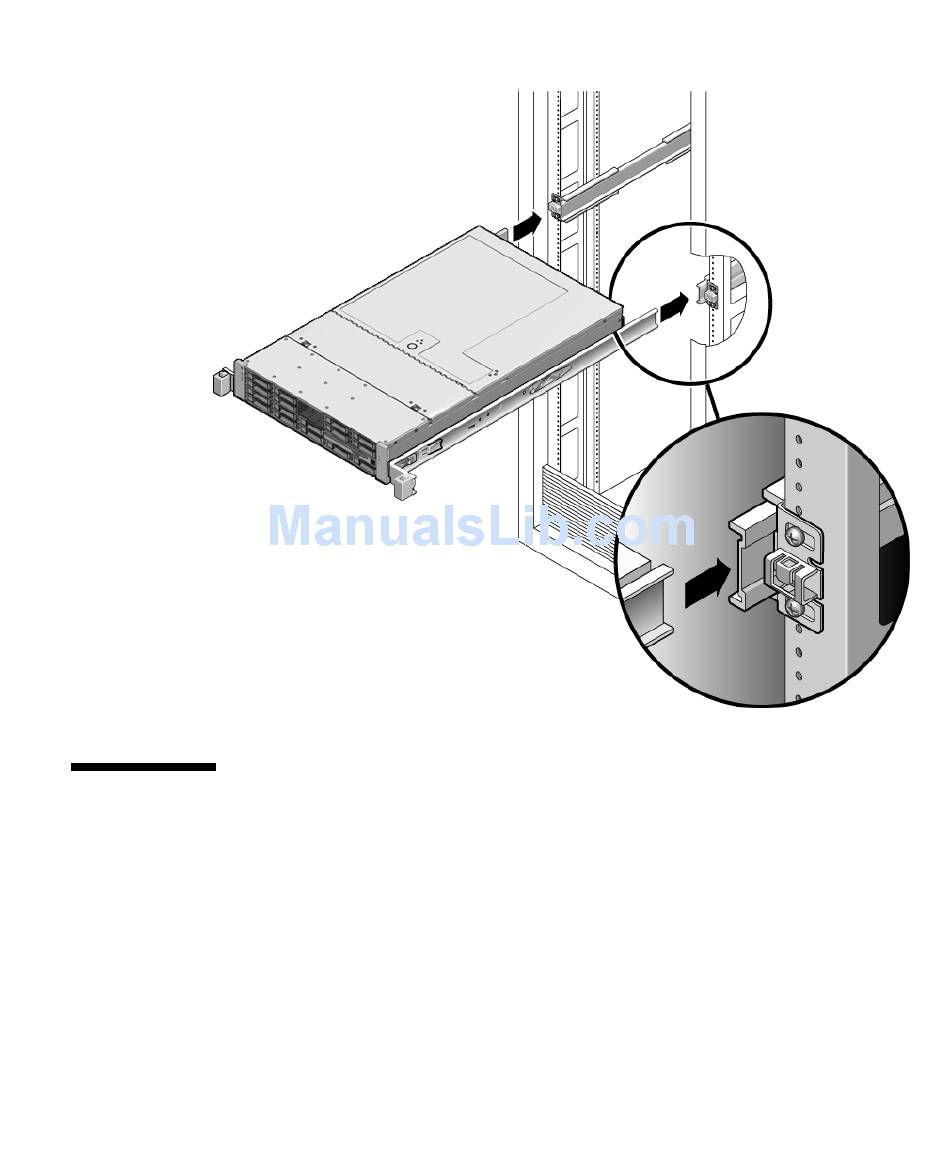

FIGURE 6-3
