3. Carefully remove the new DIMM from its protective packaging and place it on an
antistatic surface.
The bag that the DIMM is packed in makes a good antistatic surface.
4. Press down on the ejector levers at both ends of the DIMM connector slot that
will receive the new DIMM.
The connector slot will not accept the DIMM unless the levers are in the insert
(open) position.
5. Align the short-side key on the DIMM and the long-side key on the DIMM with
the short side and long side of the DIMM connector.
Note – If you are installing four DIMMs, insert the DIMMs into the same bank.
6. Place your thumbs on the top edge of the DIMM, and push the DIMM firmly into
its connector (

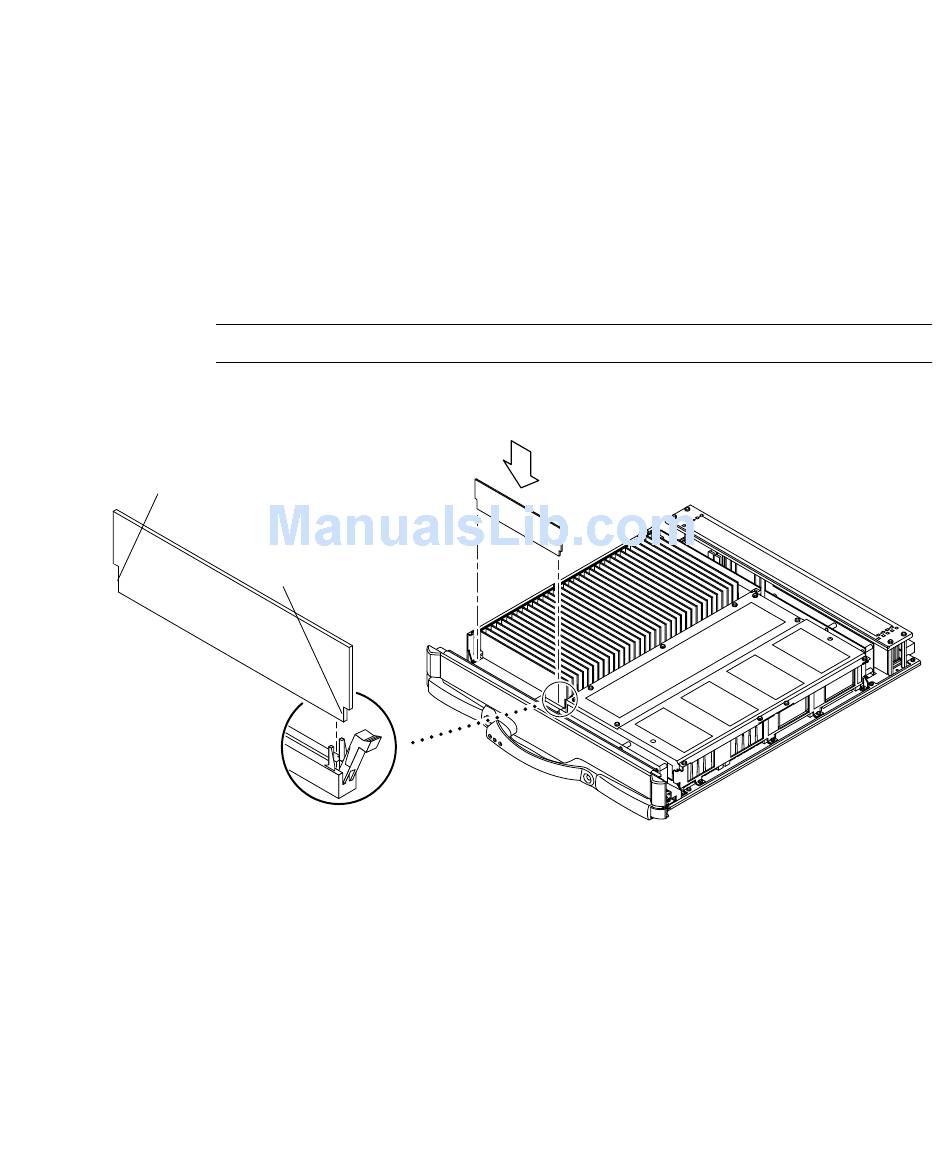

FIGURE 8-8
Long side key
Short side key
Installing a DIMM
FIGURE 8-8
7. Press down firmly on the entire edge of the DIMM.
When installed correctly, the ejector levers will be in the upright position.
8. Continue installing DIMMs in the same manner.
9. Reinstall the CPU/Memory board and detach the wrist strap.
See Section 8.3.1.3 "Installing the CPU/Memory
).
Chapter 8 CPU/Memory Boards and Components
Board."
8-15
