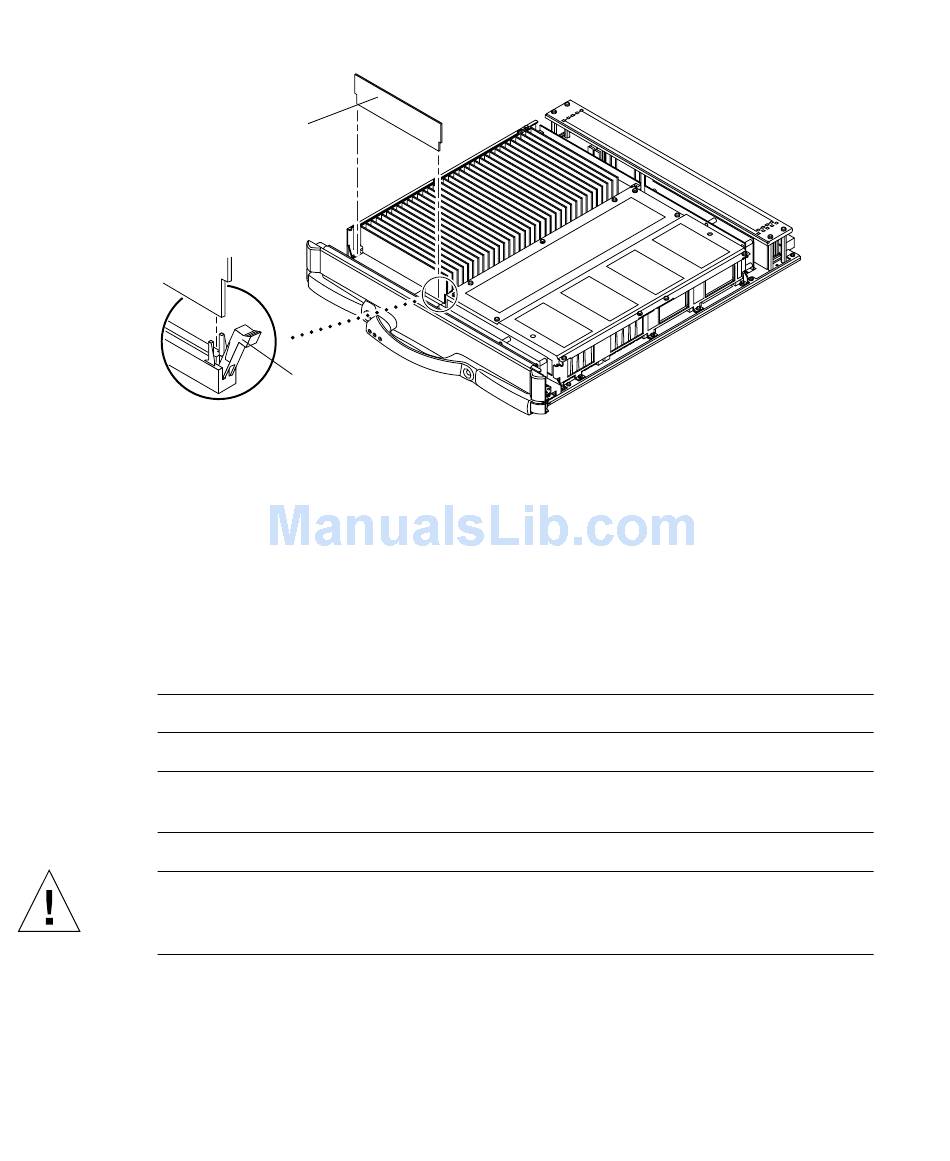

FIGURE 8-7
5. Holding the DIMM by its edges, remove it from the slot and place it on an
antistatic surface.
8.3.2.3

Installing DIMMs

Install one bank completely on each board before installing the remaining banks on
any board.
Note – All DIMMs within a bank must be of the same capacity.
Note – Memory banks associated with CPU0 and CPU2 are oriented in the same
direction, while banks for CPU1 and CPU3 are rotated 180 degrees.
Caution – The system and DIMMs are sensitive to static electricity. To prevent
damage to the DIMMs, make sure you are wearing a grounded wrist strap when
handling them. Always place components on a grounded ESD mat near the system.
1. Remove the applicable CPU/Memory board.
See Section 8.3.1 "Replacing CPU/Memory
2. Place the CPU/Memory board on an ESD mat on a work surface.
8-14 Sun Fire E6900/E4900 Systems Service Manual • May 2006
DIMM
Ejection
lever
Removing a DIMM
Boards."
