Installing The Id Board In The Sun Fire E6900 System; Figure 11-22 Removing The Id Board From The Centerplane-Sun Fire E6900 System - Sun Microsystems Fire E6900 Systems Service Manual

FIGURE 11-22
11.3.2 Installing the ID Board in the Sun Fire E6900
System
1. Attach a wrist strap or foot strap. Connect the ESD jack from the system to your
wrist strap or foot strap.
2. Reach into the opening created by removing the I/O assembly and connect the ID
board to the connectors on the centerplane (
3. Install the upper left I/O assembly into the system.
4. Power on the system.
Refer to the Sun Fire Midrange Systems Platform Administration Manual for complete
procedures for powering on the system.
ID board

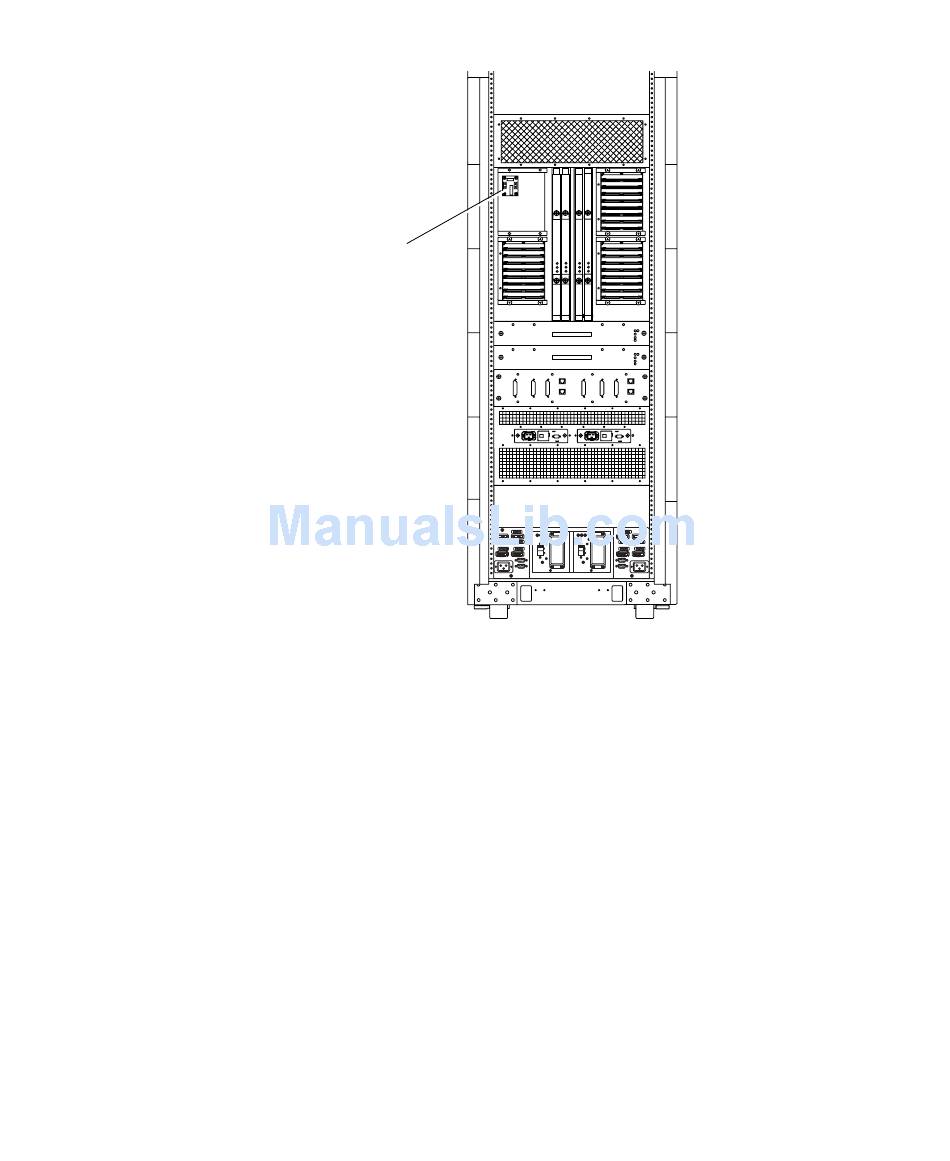

Removing the ID Board From the Centerplane—Sun Fire E6900 System
).
FIGURE 11-22
Chapter 11 Centerplane and ID Boards 11-25
