3. Remove the access cover.
4. Using the arm as a template, place it level
against the mounting surface and mark the
position of the mounting holes, and if
needed, the cable entry hole.
5. Following all local codes, drill and prepare the mounting holes, and if needed, cut the cable entry hole.
6. Feed the cables through the cable entry hole in the mounting surface or through the conduit attached to
the opened conduit hole, and up through the arm.
•
Pull enough cable to make connections. You can always cut off unneeded length later.
•
Do not terminate the cables yet. Otherwise, they will not fit through the dust seal of the housing.
•
How many cables you pull depends upon how many alarms and relays you are connecting in
addition to the video, data, and power cables, and if you will be installing an Ethernet cable for
flash upgrades. See

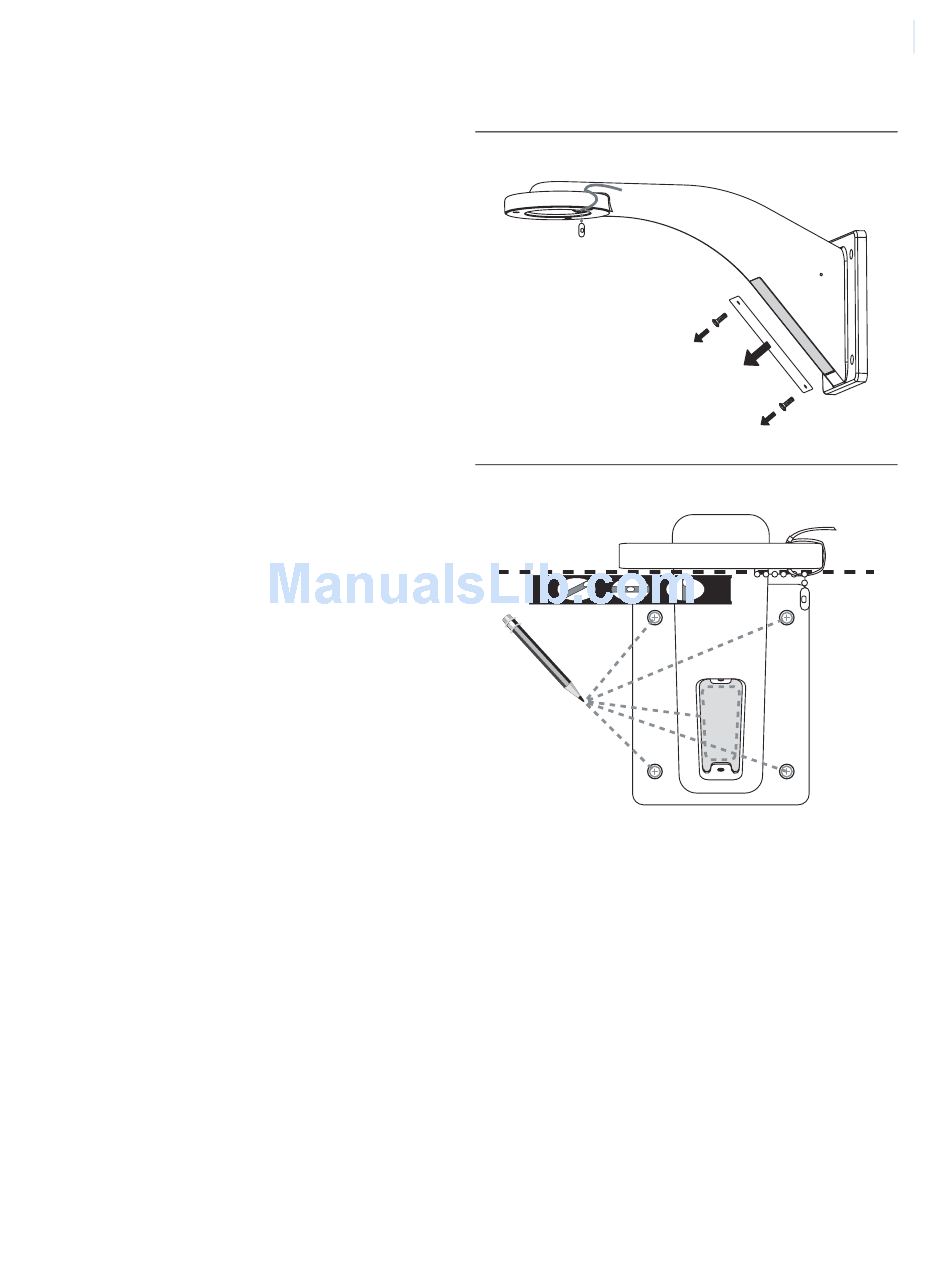

Figure 30. Removing the access cover
Figure 31. Marking the mounting and cable entry holes
Wiring and addressing the dome
on page 14.
33
