Page 1: Installation Guide

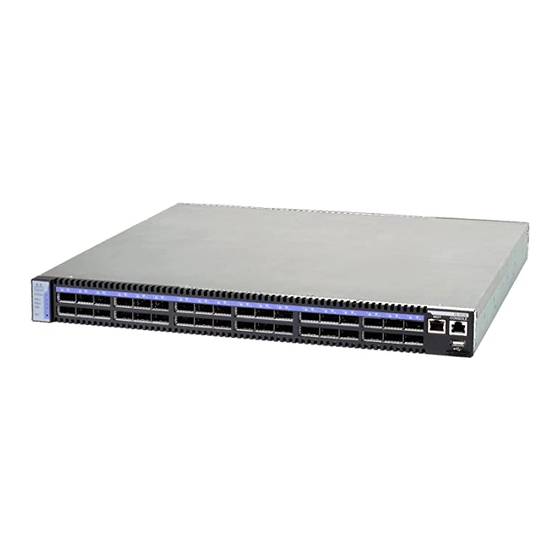

36 Port InfiniBand QDR Switch Platform Installation Guide PNs: MIS5025, MIS5030, MIS5035 Rev 1.8 www.mellanox.com... - Page 2 THIS HARDWARE, SOFTWARE OR TEST SUITE PRODUCT (“PRODUCT(S)”) AND ITS RELATED DOCUMENTATION ARE PROVIDED BY MELLANOX TECHNOLOGIES “AS-IS” WITH ALL FAULTS OF ANY KIND AND SOLELY FOR THE PURPOSE OF AIDING THE CUSTOMER IN TESTING APPLICATIONS THAT USE THE PRODUCTS IN DESIGNATED SOLUTIONS. THE CUSTOMER'S MANUFACTURING TEST ENVIRONMENT HAS NOT MET THE STANDARDS SET BY MELLANOX TECHNOLOGIES TO FULLY QUALIFY THE PRODUCT(S) AND/OR THE SYSTEM USING IT.
-
Page 3: Table Of Contents
Resetting the Switch ..........32 Mellanox Technologies... -
Page 4: List Of Figures
Figure 14: Reset Button ........... .32 Mellanox Technologies... -
Page 5: List Of Tables
Configuration Wizard Session - IP Zeroconf Configuration ....23 Table 9: Configuration Wizard Session - Static IP Configuration ....24 Mellanox Technologies... -
Page 6: Table 1: Revision History Of This User's Manual
July 2010 Added files to change this into a book.Added last page with barcode June 2010 Added “Getting the License Key” May 2010 Added Note: ETH Ports Must be 10/100M April 2010 Minor formatting April 2010 Initial Release Mellanox Technologies... -
Page 7: About This Manual
Table 2 - Reference Documents and Web Sites Switch Firmware and Firmware Update Tools See http://www.mellanox.com/content/ pages.php?pg=management_tools&menu_section=34 Note that the Switch System described in this manual is based on Mellanox Technologies’ InfiniScale IV switch device. Talk to your Mellanox representative for information FabricIT Enterprise Fabric Management regarding licensing and implementation of the FabricIT (EFM) Software User’s Manual... - Page 8 Rev 1.8 This symbol indicates a potential danger of injury to users and / or installers and poten- tial damage to the hardware or software. Mellanox Technologies...
-
Page 9: Internally Managed Vs. Externally Managed
This switch is capable of Fabric management for an unlimited num- ber of nodes, with the purchase of Mellanox UFM. Should your unmanaged switch have CONSOLE, Ethernet, and USB connectors, they will not work. Only the I2C connector will work on unmanaged switches. Mellanox Technologies... -
Page 10: Table 4: Switches And Rail Kits For Various Rack Depths
# of Power Supplies 0=0, 1=1, 2=2..Depth of the Unit S = standard depth, B = short depth Air Flow direction R= Connector side to PSU side airflow F= PSU side to Connector side airflow RoHS C=RoHS5, X=RoHS6 Mellanox Technologies... -
Page 11: Installing The Switch In The Rack
19” rack whose vertical supports are between 500mm and 800mm apart. The standard depth switch uses the MIS000085 rail kit for installation in a 19” rack whose verti- cal supports are between 500mm and 800mm apart. Mellanox Technologies... -
Page 12: Installing The Switch In The Rack
For standard depth switches rail kit # MIS00085 is to be used for racks from 60cm to 80cm deep. Parts included in the rail kit: • 2 rails • 18 recessed flat head screws • 2 rail slides • 8 caged nuts • 2 brackets • 8 pan head screws M6 Mellanox Technologies... -
Page 13: Figure 2: Rack Rail Kit Parts Mis000079
• Do you want the connector side recessed in the rack to allow for a larger cable bending radius? • Will the connector side be recessed past other equipment in the rack and will this be prob- lematic? Mellanox Technologies... -
Page 14: Figure 3: Installation Options Available For Short Switches
Connector side Spine side Switch Switch Spine side Connector side Doors Doors Installation B Installation A Standard switches only support installation with the connector side of the switch near the rack door, as per installation B in Figure 4. Mellanox Technologies... -
Page 15: Figure 5: For Short Switches Which Side Of The Rack Do You Want The Connectors
3. Screw the brackets onto the switch. Use the flat head screws to connect the bracket. There are two options for mounting the bracket. One option will place the switch even with the vertical support of the rack and the second option will recess the switch further into the rack. If you Mellanox Technologies... -
Page 16: Figure 6: Making Room For The Power Cord
Place to put the power cable. Option A will require 3 flat head Option B will require 4 flat head screws screws This configuration also allows you to put the power cord through the bracket. Mellanox Technologies... -
Page 17: Figure 8: Screwing On The Rail
8. Tighten the bolts to 9.2 Nm or 81.5 pound inches. If the power cable is on this side of the switch, feed the power cable into the slot in the rail slide before screwing it to the vertical sup- port. Mellanox Technologies... -
Page 18: Figure 10: Connect Bracket To Rack Vertical Support
Warning: Any yellow status LEDs is cause for concern and must be dealt with imme- diately. It can take up to 5 minutes to boot up, during which time the status LED may indicate red. 16. You can start connecting all of the cables to the switch. Mellanox Technologies... -
Page 19: Grounding The Switch
Test the ground using an Ohm meter. Some national and/or local codes may require IT components to be bonded and exter- nally grounded (not including the power cord ground). You must follow all national and local codes when installing this equipment. Mellanox Technologies... -
Page 20: Configuring The Switch For The First Time
Managed (Internally managed) Switches 1. Connect the host PC RS232 connector to the CONSOLE port of the switch using the supplied cable Connect the host IS5035 PC to here. CONSOLE Note: No remote IP connection is available at this stage. Mellanox Technologies... -
Page 21: Table 6: Serial Terminal Program Configuration
Step 3: Enable IPv6? [yes] yes The management interfacewill be able to use IPv6 addresses. Step 4: Enable IPv6 autoconfig (SLAAC) on This turns on autoconfiguration of the IPv6 mgmt0 interface? [no] no addresses. This is unsuitable for DHCPv6. Mellanox Technologies... - Page 22 Otherwise hit <enter> to save changes and exit. you must be in Config mode. Choice: <Enter> Configuration changes saved. To return to the wizard from the CLI, enter the “configuration jump-start” command from con- figuration mode. Launching CLI... <switch name> [> Mellanox Technologies...
-
Page 23: Table 8: Configuration Wizard Session - Ip Zeroconf Configuration
To change an answer, enter the step number to return to. Otherwise hit <enter> to save changes and exit. Choice: Configuration changes saved. To return to the wizard from the CLI, enter the "configuration jump-start" command from configure mode. Launching CLI... switch-1 > Mellanox Technologies... -
Page 24: Table 9: Configuration Wizard Session - Static Ip Configuration
4. Before attempting a remote (for example, SSH) connection to the switch, check the eth0 interface configuration. Specifically, verify the existence of an IP address. To check the cur- rent eth0 configuration, enter the following commands: switch-112428> enable // Enter ‘enable’ mode of CLI Mellanox Technologies... - Page 25 Interface source: physical MTU: 1500 HW address: 00:00:50:3A:8E:80 Comment: RX bytes: 123102 RX packets: 1271 RX mcast packets: RX discards: RX errors: RX overruns: RX frame: TX bytes: 122850 TX packets: 1119 TX discards: TX errors: TX overruns: Mellanox Technologies...
- Page 26 Rev 1.8 TX carrier: TX collisions: switch-112428# Mellanox Technologies...
-
Page 27: Unified Fabric Manager (Ufm)
For an added licensing fee you can purchase Mellanox's Unified Fabric. UFM is a powerful plat- form for managing scale-out computing environments. it enables data center operators to effi- ciently monitor and operate the entire fabric, boost application performance and maximize fabric resources utilization. Mellanox Technologies... -
Page 28: Fabricit
License Key enter the License Enablement Number and the Switch Serial Number into the Mellanox online license tool at http://license.mellanox.com. The Switch Serial Number can be found on the pull-out tab or the box labeling. Figure 12: License Key Entitlement Number Mellanox Technologies... -
Page 29: Figure 13: License Key Generation Form
Without the license, you will not be able to run a Subnet Manager on the switch nor run advanced fabric diagnostics. Mellanox Technologies... -
Page 30: Starting An Ssh Connection To The Switch
Note that the IP address used above is the same IP address that was assigned to the Mellanox configuration wizard in the “Configuring the Switch for the First Time” section. 4. You can enter any supported command now. Note: For a complete reference of commands, please see Mellanox FabricIT Management Soft- ware User’s Manual. Mellanox Technologies... -
Page 31: Starting A Webui Connection To The Switch
1. Enter as URL the following: http://<switch_IP_address> where <switch_IP_address> is the IP address of the switch or its DNS name. 2. You will receive the login window for remote management of the switch. 3. Use admin for both the login (Account) and the password. Mellanox Technologies... -
Page 32: Resetting The Switch
You will then be able to enter without a pass- word and make a new password for the user admin. In the externally managed switch the reset button resets the CPU of the switch device. The IS Series User Manual can be found at: http://www.mellanox.com Mellanox Technologies... - Page 33 Rev 1.8 Mellanox Technologies Inc. 350 Oakmead Parkway, Suite 100 Sunnyvale, CA 94085 Tel: (408) 970-3400 Fax: (408) 970-3403 www.mellanox.com E-mail: info@mellanox.com 36 Port InfiniBand QDR Switch Platform Map and Directions Installation Guide Tech Support: 408-916-0055 (8:00AM to 5:00 PM - Pacfic) Mellanox Technologies, Ltd.
