6.0 Configuration Changes - CyberData Amplifier Setup Manual

5
8. Click in the "Apply Configuration Changes Here" link

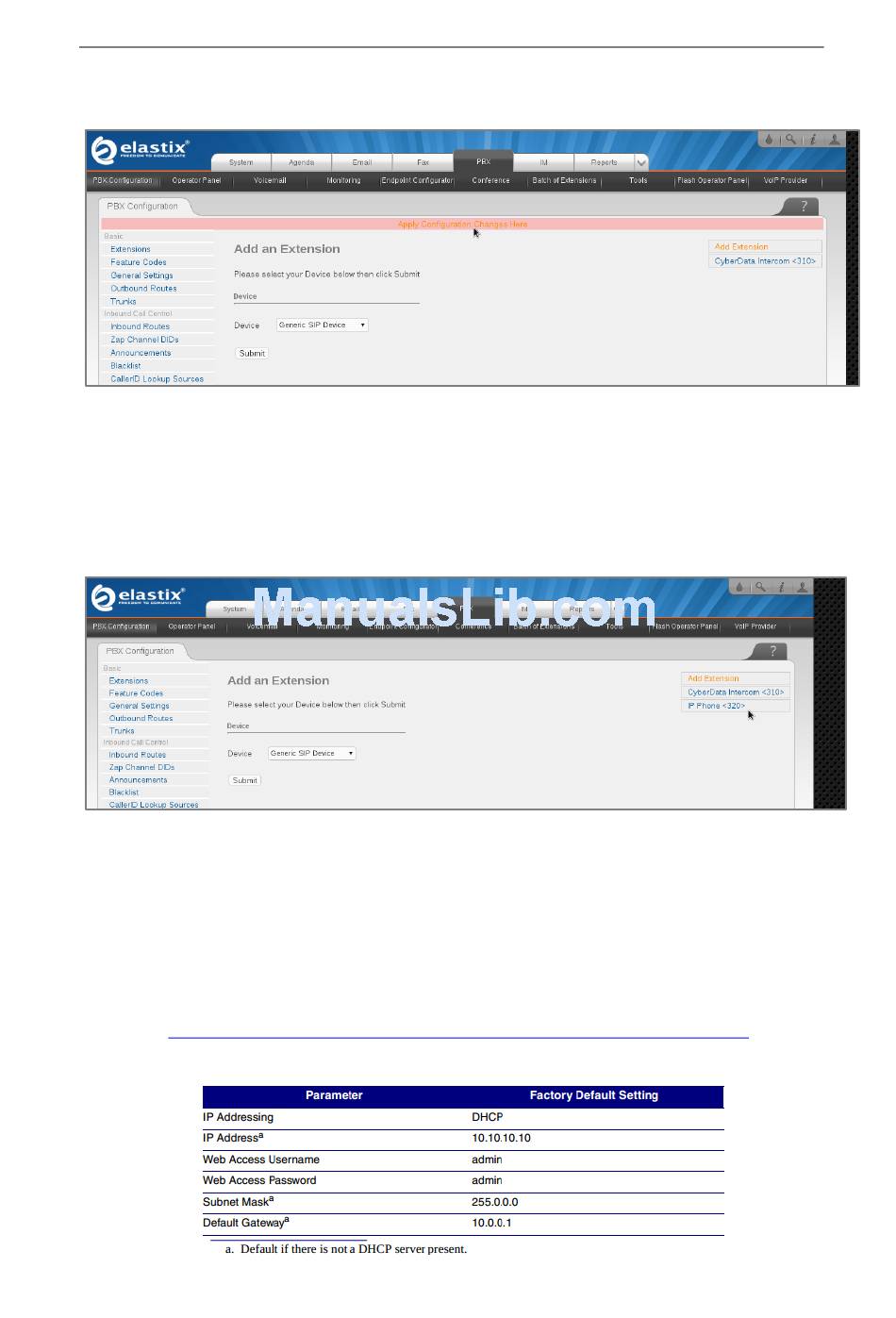

Figure 4-5. Apply Configuration Changes Here
9. With this you have just finished creating a SIP extension that will be used by the
VoIP Paging Amplifier to register with the Elastix Server. Repeat Steps 5 through 8 to
similarly create another extension (different values on Step 6) to be used by the IP (SIP)
Phone to register as well (extension 320 in this example). Once finished you will see
something similar to Figure 4-6
Figure 4-6. VoIP Paging Amplifier and IP Phone extensions successfully created
10. To register the Paging Amplifier, you will need to enter the information from the
extension created on the Elastix Server into the Paging Amplifier by logging into the
CyberData VoIP Paging Amplifier WebUI.
Log into the CyberData VoIP Paging Amplifier WebUI (Figure 4-7) by pointing your
browser to the Paging Amplifier‟s IP address.
For the initial configuration of the Paging Amplifier, refer to the VoIP Paging Amplifier
Operation Guide PDF which can be found at the VoIP Paging Amplifier product page
at: http://www.cyberdata.net/products/voip/digitalanalog/ceilingspkr2/docs.html
Table 4-1. Factory Default Settings
