12. Use the information from the Add SIP Extension page (Figure 4-4) to enter the
following information on the SIP Config page of the VoIP Paging Amplifier:
• SIP Server (192.168.1.65 in this example)
• SIP User ID (310 in this example)
• Authenticate ID (310 in this example)
• Authenticate Password (43f0j93f099y8 in this example)
• Dial out Extension (320 in this example)
Note Figure 4-8 is an example of a CyberData VoIP Paging Amplifier that is configured
to extension 310

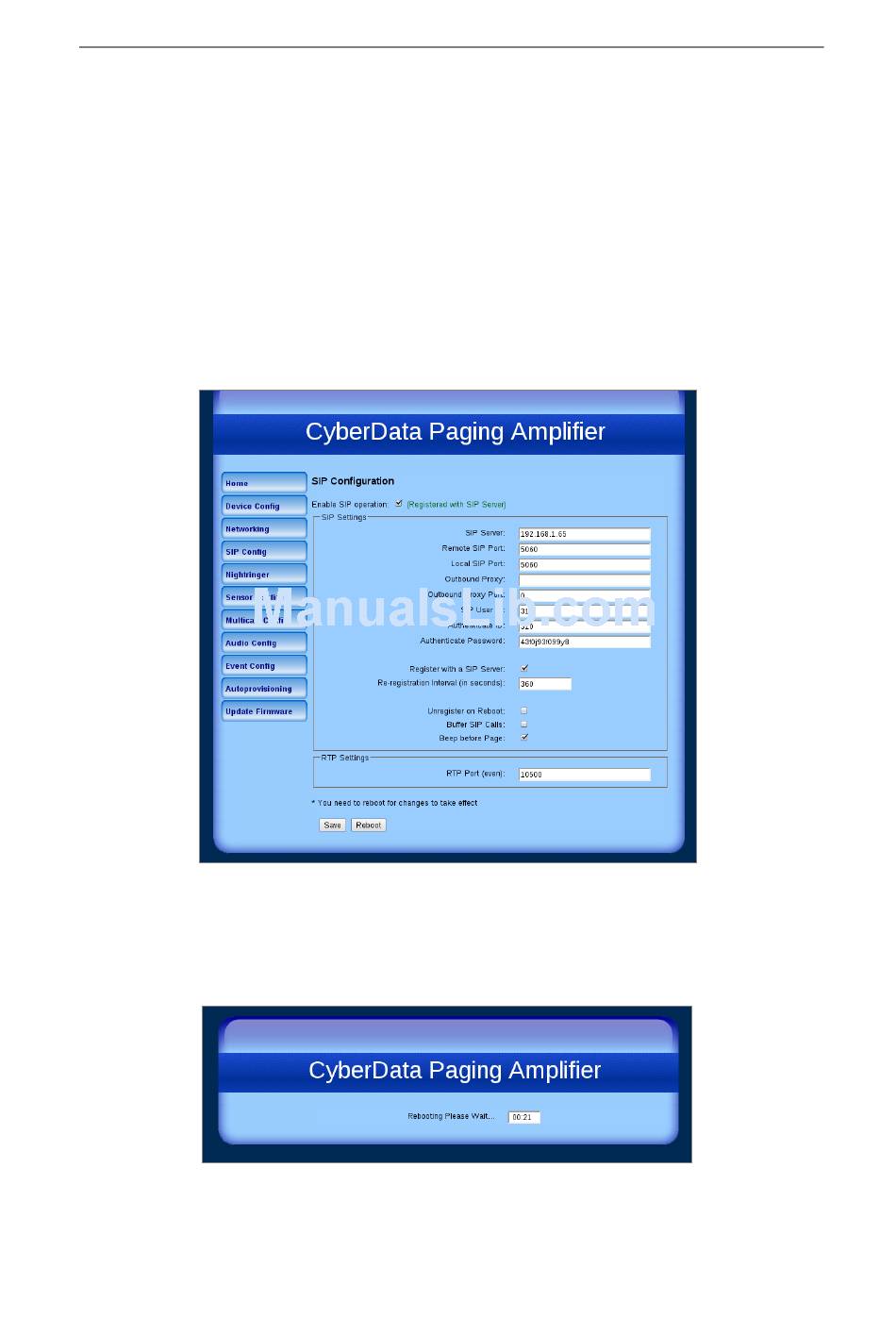

Figure 4-8. SIP Config Page
13. Click on the Save button at the bottom of the screen and then on the Reboot button
next to it. The screen on Figure 4-9 will be shown
Figure 4-9. Paging Amplifier Reboot Timer
14. After the Paging Amplifier finishes rebooting, the green Status LED on the Paging
Amplifier will remain lit to indicate normal operation.
