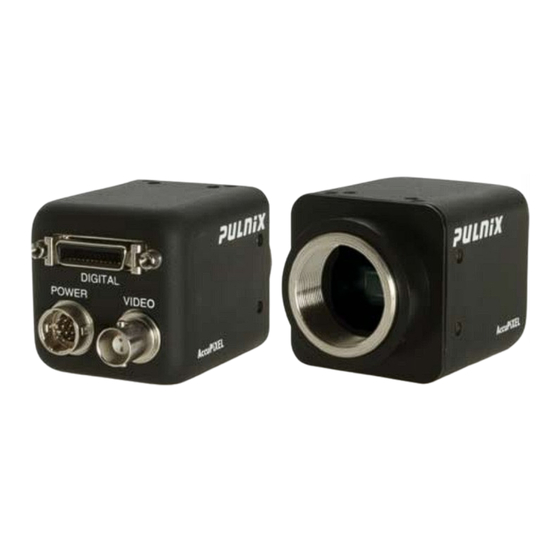

JAI TM-1402CL User Manual

Tm-1402 series digital monochrome/color progressive scan, interline-transfer camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

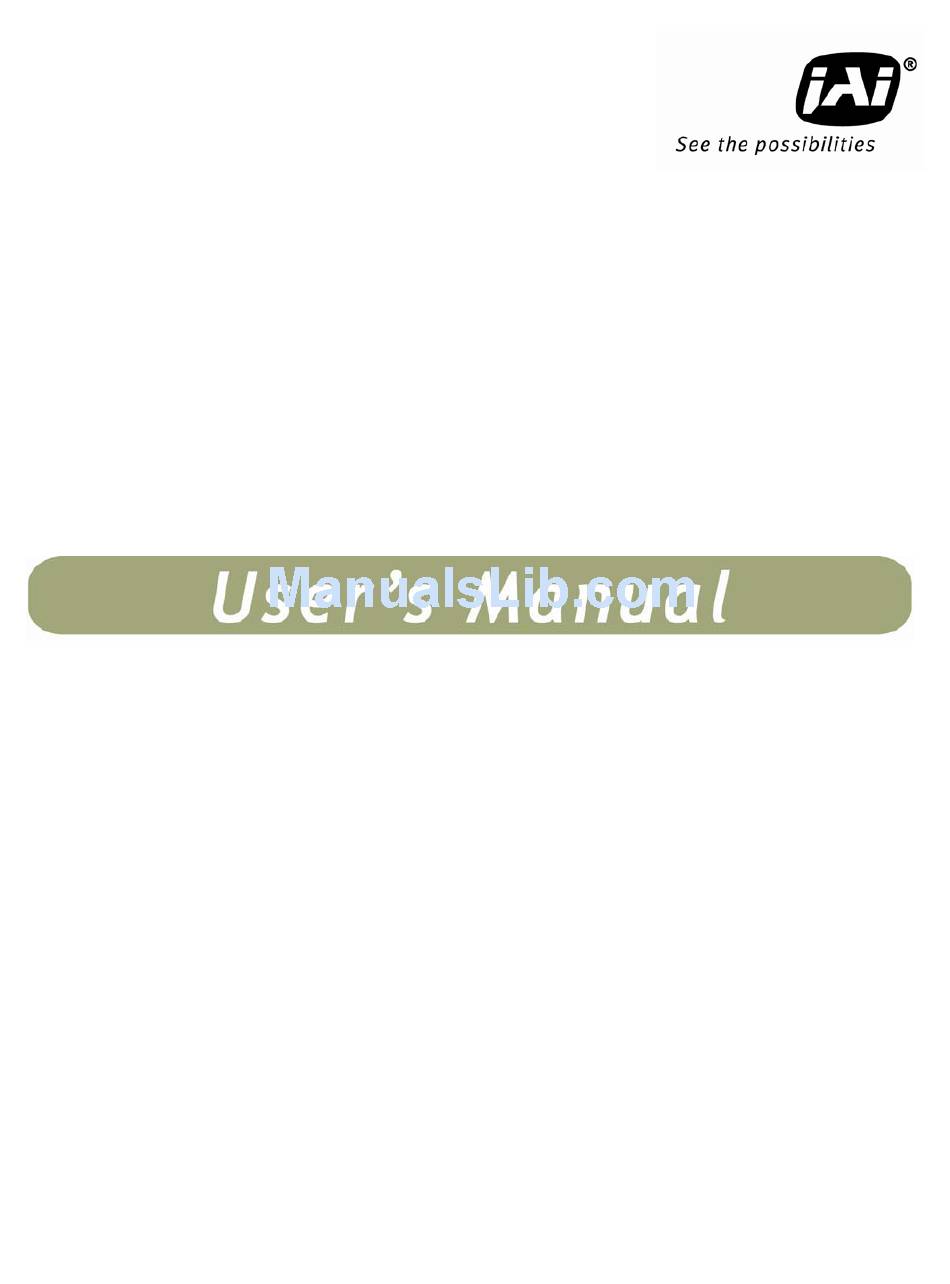

TM-1402 Series
Digital Monochrome/Color
Progressive Scan, Interline-Transfer Camera
Document Version: D
Document P/N: 10053

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TM-1402CL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JAI TM-1402CL

Summary of Contents for JAI TM-1402CL

  • Page 1 TM-1402 Series Digital Monochrome/Color Progressive Scan, Interline-Transfer Camera Document Version: D Document P/N: 10053...
  • Page 3 The material contained in this manual consists of information that is proprietary to JAI, Inc., and may only be used by the purchasers of the product. JAI, Inc. makes no warranty for the use of its product and assumes no responsibility for any errors which may appear or for damages resulting from the use of the information contained herein.
  • Page 4 TM/TMC/RM/RMC-1402 Series Disclaimer...

  • Page 5: Table Of Contents

    TM/TMC/RM/RMC-1402 Series Table of Contents Disclaimer Notice ....................iii Table of Contents ....................v List of Figures ....................... vii List of Tables ......................ix Introduction ..................... 1     Product Description ................... 1     Features ....................1     Functional Options ..................
  • Page 6 TM/TMC/RM/RMC-1402 Series 3.9.1 Color Filter Array ..................17     3.9.2 Bayer Color Filter Array (CFA) ..............18     3.9.3 Starting Pixel Configuration ................. 18     3.9.4 Sync and Data ..................19     3.9.5 Camera Functions ..................19  ...
  • Page 7 Pulse Width Async Shutter Timing ..............15     Figure 10. Physical Dimensions (TM-1402) ..............30     Figure 11. Physical Dimensions (TM-1402CL) ..............30     Figure 12. Monochrome Spectral Response ..............31     Figure 13. Color Spectral Response ................31  ...
  • Page 8 TM/TMC/RM/RMC-1402 Series List of Tables Table 1 12-Pin Connector (TM-1402) ................. 5     Table 2 12-Pin Connector (TM-1402CL) ..............5     Table 3 31-Pin Connector (MP211-031-113-4300) ............6     Table 4 Connector Pinout Configurations ..............6  ...

  • Page 9: Introduction

    The camera has an 8-bit, RS-644 digital signal output for interfacing with external image-processing systems. All the key functions are externally controlled via RS-232C. The TM-1402CL model has a Camera Link output and its key functions are externally controlled via differential serial communication of Camera Link.

  • Page 10: Functional Options

    The TM-1402 has an 8-bit RS-644 (LVDS) digital output for interfacing with external image processing systems. The TM-1402 camera is also available with RS-422 digital output as an option (OP-93). The TM-1402CL has a Camera Link output. The analog output is 1.0 Vp-p composite video (75 Ω).

  • Page 11: System Configuration

    PD-12 (series) power supply 12P-02S Power and Ext. Sync Figure 2. TM-1402CL System Configuration Figure 2 below presents a typical system configuration for the TM-1402CL camera. 26CL-02-26 CAMERA LINK Power and 12P-02S Ext. Sync POWER VIDEO PD-12P (series)

  • Page 12: Installation

    The TM-1402 camera is a compact 1.4 megapixel camera. Since all the electronics have been packed in a very small package, the outer case of the camera gets hot due to heat dissipation. JAI. Recommends using a cooling fan to set up a positive air flow around the camera, and following the precautions below: •...

  • Page 13: Connector Pin Configurations

    2.2.2 (b) 12-Pin Connector (TM-1402CL) The TM-1402CL has a 12-pin Hirose connector for power input and signal integration. Pin #1 is Ground and pin #2 is +12V DC. The pinout table is shown below. For the TM-1402CL, serial communication camera control is done via the MDR26 Camera Link connector on the rear panel of the camera.

  • Page 14: Table 3 31-Pin Connector (Mp211-031-113-4300)

    [HD-] [VINIT+/(VD+)] [VINIT-/(VD-)] 2.2.2 (d) Camera Link Connector The TM-1402CL has a 26-pin connector on the rear panel to output Camera Link data. The connector pin-out is shown in Table 4 below. Table 4 Connector Pinout Configurations Camera Link Connector...

  • Page 15: Shutter Speed Control Dial (Tm-1402 Only)

    TM/TMC/RM/RMC-1402CL Pin # Description Pin # Description Note: SerTC: Differential Serial Communication to camera; SerToFG: Differential Serial Communication to frame grabber. 2.2.2 (e) Analog Output Connector The TM-1402 has a BNC connector on the rear panel to output non-standard analog video. 2.2.3 Shutter Speed Control Dial (TM-1402 only) Shutter speed can be selected by switching the shutter dial...

  • Page 16: Digital Output Cable (Tm-1402 Only)

    78.74 in (2 meters) The TM-1402 camera uses the cable 30DG-02 from JAI, Inc. as a digital output cable. This cable has a 31-pin AirBorn connector on the camera end and a 37-pin D-sub male connector on the other end. Contact your JAI, Inc.

  • Page 17: Camera Link Cable (Cl Versions Only)

    12-pin mating connector already attached to the leads from the power supply. The PD-12UU or PD-12UE power supply can be connected to the JAI, Inc. power cable either directly or via a terminal strip. When wiring the PD-12UU power supply directly, please note the following: •...

  • Page 18: Attaching The Analog Video Output

    2.2.7 (b) JAI, Inc. Power Cables If you are using JAI, Inc. power cables such as the 12P-02S, please refer to the 12-pin connector pin-out diagram in “12-Pin Connector (TM-1402)” on page 6. The cable pin-out diagram is shown in Figure 7 below. The color-coded leads use Gray for Ground and Yellow for +12V.

  • Page 19: Back Focus Adjustment (Cl Models Only)

    TM/TMC/RM/RMC-1402CL Do not force the lens if it does not seat properly. Please note that some lenses with extremely long flangebacks may exceed the mounting depth of the camera. 2.2.10 Back Focus Adjustment (CL Models Only) To adjust the back focus, follow the steps below: Mount the manual lens (e.g.

  • Page 20: Operation

    TM/TMC/RM/RMC-1402 Series Operation Camera Rear Panel (TM-1402) 3.1.1 Up/Down Switch The Mode Selection switch works in conjunction with the Up/Down switch. Refer to Table 6 on page 15 for information on the Up/Down switch. 3.1.2 Digital Output Connector Refer to Section 2.2.2 (c on page 7 for information on the digital output connector. 3.1.3 Analog Output Connector The TM-1402 camera has a BNC connector on the rear panel to output analog video data.

  • Page 21: Camera Rear Panel (Cl Versions)

    Camera Rear Panel (CL Versions) 3.2.1 Digital Output Connector Refer to Section 2.2.2 (d on page 8 for Camera Link information. 3.2.2 Analog Output Connector The TM-1402CL camera has a BNC connector on the rear panel to output analog video data. Operation...

  • Page 22: Power And External Sync Connector

    TM/TMC/RM/RMC-1402 Series 3.2.3 Power and External Sync Connector Refer to Table 2 on page 6 for information on the power and external sync. connectors. Progressive Scanning Standard TV-system scanning is 525 lines interlace scanning as specified in the RS-170 protocol. Every other horizontal line (odd lines and even lines) is scanned at a 60Hz rate per field, and the scanning is completed with two fields (one frame) at 30Hz rate.

  • Page 23: External Vinit With Pulse Width

    1H from the leading edge. For the immediate reset option, please contact JAI, Inc. For the progressive format, one frame of video output will start from the rising edge of the pulse width control.

  • Page 24: Internal Shutter Speed Control

    TM/TMC/RM/RMC-1402 Series 3.5.2 Internal Shutter Speed Control The video signal starts with internal VD. The camera operates the reset and shutter in the same way as the external pulse width control mode. When the external VINIT pulse is applied, internal VD is latched to HD and the internal VD is delayed to set up the shutter speed period.

  • Page 25: Scan Modes

    3.9.1 Color Filter Array JAI, Inc. AccuPiXEL cameras use Bayer CFA (color filter array) as their standard primary color filter. This filter provides the most popular color interpolation supported by numerous software suppliers. The digital format, either Camera Link or RS-644, allows the camera to output accurate pixel data, including the color information.

  • Page 26: Bayer Color Filter Array (Cfa)

    R/G start or G/R start, as well as G/B start and B/G start. Once the correct scanning is configured, the rest of the interpolation will be exactly the same. Please contact JAI. Inc. for further information regarding CCD manufacturers. Operation...

  • Page 27: Sync And Data

    0.45 is logarithmic and is closed to human perception. When LUT is selected, black-level adjustment must be more accurate than for B/W cameras. For a detailed timing chart, please refer to the standard AccuPiXEL camera data sheet, or contact JAI, Inc. Operation...

  • Page 28: Interpolation Software

    3 x 3 interpolation, 2 x 2 interpolation, color matrix, white balance capability, etc. All AccuPiXEL color cameras are carefully designed for maximum color performance. JAI, Inc. strongly suggests that you use digital output for the best performance.

  • Page 29: 3.10 Camera Timing Charts

    TM/TMC/RM/RMC-1402CL 3.10 Camera Timing Charts Model: TM-1402 Operation Mode: 30 Frame /sec Master Clock: 100 MHz, M=10 nsec Pixel Clock: 50 MHz, P= 20 nsec 1. Pixel Clock and Digital Data Pixel Clock Data TdcT Tcd: Clock to Data Ready Tdc: Data Ready to Next Clock Thd: Data Hold Time Tcc =14 nsec, Tdc = 6 nsec, Thd = 5 nsec.
  • Page 30 TM/TMC/RM/RMC-1402 Series CAMERA TIMING CHARTS Model: TM-1402 Operation Mode: 30 Frames/Second Master Clock: 100.00MHz, M = 10 nsec Horizontal Frequency: 31.09KHz Pixel Clock: 50 MHz, P = 20 nsec 1H = 32.16 usec 3. External Reset Timing External VD A [1053 H], (33.86 msec) B [1 H], (32.16 us) C [9 H], (289.44 us) Internal VD...
  • Page 31 TM/TMC/RM/RMC-1402CL CAMERA TIMING CHARTS Model: TM-1402 Operation Mode: 15 Frame /sec Master Clock: 50 MHz, M= 20 nsec Pixel Clock: 25 MHz, P= 40 nsec 1. Pixel Clock and Digital Data Pixel Clock Data TdcT Tcd: Clock to Data Ready Tdc: Data Ready to Next Clock Thd: Data Hold Time Tcd = 28 nsec, Tdc = 12 nsec, Thd = 10 nsec.
  • Page 32 TM/TMC/RM/RMC-1402 Series CAMERA TIMING CHARTS Model: TM-1402 Operation Mode: 15 Frames/Second Master Clock: 100.00 MHz, M = 10 nsec Horizontal Frequency: 15.55 KHz Pixel Clock: 25 MHz, P = 40 nsec 1H = 64.32 usec 3. External Reset Timing External VD A [1053 H], (67.73 ms) B [1 H], (64.32 us) C [9 H], (578.88 us)
  • Page 33 TM/TMC/RM/RMC-1402CL CAMERA TIMING CHARTS Model: TM-1402 Operation Mode: 56.5 Frames/Second Master Clock: 100 MHz, M= 10 nsec Horizontal Frequency: 31.09 KHz Pixel Clock: 50 MHz, P = 200nsec 1H = 32.16 usec 3. External Reset Timing (Partial Scan 500 Lines) External VD A [550 H], (17.69 ms) B [1 H], (32.16 us)
  • Page 34 TM/TMC/RM/RMC-1402 Series CAMERA TIMING CHARTS Model: TM-1402 Operation Mode: 98.7 Frames/Second Master Clock: 100 MHz, M= 10 nsec Horizontal Frequency: 31.09 KHz Pixel Clock: 50 MHz, P = 20 nsec 1H = 32.16 usec 3. External Reset Timing (Partial Scan 250 Lines) External VD A [315 H], (10.13 ms) B [1 H], (32.16 us)

  • Page 35: Serial Communication Kit Cs-232C (Not Required For "Cl" Version)

    TM/TMC/RM/RMC-1402CL 3.11 Serial Communication Kit CS-232C (not required for “CL” version) The TM-1402’s functions can be controlled by a PC via RS-232C communication using the CS-232E serial communication kit. This kit consists of the RS-232B-12 cable, software disk, and quick-start card. The software disk contains setup files for the graphical user interface (GUI) program.

  • Page 36: Troubleshooting

    Problems and Solutions Following are troubleshooting tips for common problems. In general, problems can easily be solved by following these instructions. If the following remedies fail to offer a solution to your problems, please contact a JAI, Inc. representative. 4.1.1 Symptom: No Video Remedies: Check that the following are properly connected and operational.

  • Page 37: Appendix

    Size (W x H x L) 44mm x 44mm x 64mm (1.75" x 1.75" x 2.51") Weight w/o tripod 133 g, 4.7 oz. (TM-1402), 138 g, 4.9 oz. (TM-1402CL) with tripod 144.5 g, 5.1 oz. (TM-1402) 149.5 g, 5.3 oz. (TM-1402CL) Optional Functions OP3-1, Internal IR Cut Filter added;...

  • Page 38: Physical Dimensions

    SHUTTER MODE DOWN DIGITAL POWER VIDEO Figure 11. Physical Dimensions (TM-1402CL) CAMERA LINK POWER VIDEO R4.5 [0.23] Caution: When mounting the camera to any fixture, do not use screws that extend more than 5 mm into the camera housing to avoid possible damage to the internal circuitry. For attaching the tripod mounting plate, only the supplied screws should be used.

  • Page 39: Spectral Response

    TM/TMC/RM/RMC-1402CL Spectral Response Figure 12. Monochrome Spectral Response Figure 13. Color Spectral Response Appendix...
  • Page 40 TM/TMC/RM/RMC-1402 Series Appendix...
