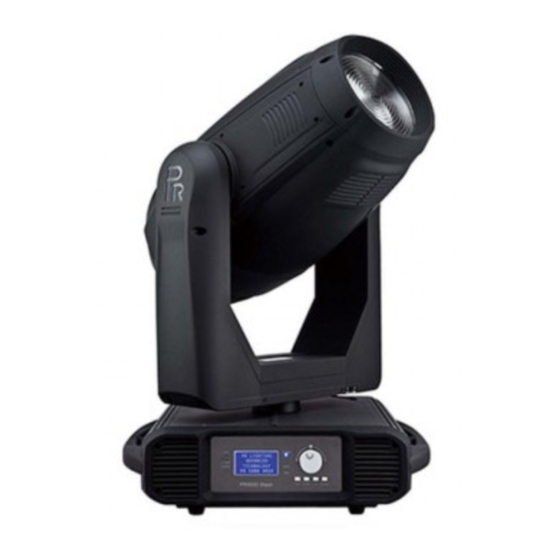

PR5000 Wash Beam
This product manual contains important information about the safe installation and use of this
projector. Please read and follow these instructions carefully and keep this manual in a safe place
for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PR5000 and is the answer not in the manual?

Questions and answers

Related Manuals for PR Lighting PR5000

Summary of Contents for PR Lighting PR5000

  • Page 1 PR5000 Wash Beam This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-lighting.com...

  • Page 2: Table Of Contents

    INDEX SAFE USAGE OF THE PROJECTOR INSTALLING THE PROJECTOR FITTING THE LAMP POWER SUPPLY – MAINS CONTROL CONNECTIONS DMX TERMINATOR SETUP OPTIONS-PROJECTOR CONFIGURATION TO SET THE DMX START ADDRESS OPERATION MENU ERROR MESSAGES REPLACING GOBOS DMX PROTOCOL LED INDICATION MAINTENANCE LUBRICATION KEEPING THE PROJECTOR CLEAN TROUBLESHOOTING...
  • Page 3 SAFE E USAGE E OF THE E PROJE ECTOR When unpa acking and bef fore disposing g of the carton n check if there e is no transpo ortation damag ge before usin ng the projecto Should ther re be any dam mage caused b by transportat ion, consult yo...

  • Page 4: Fitting The Lamp

    Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning. Always ensure that the structure that you are going to mount the projector is secure and is strong enough to support the weight of PR5000...
  • Page 5 POWER SUPPLY-MAINS Connect the power cord as follows: L (live) =brown E (earth) =yellow/green N (neutral) =blue Use the plug provided to connect the mains power to the projector paying attention to the voltage and frequency marked on the panel of the projector. It is recommended that each projector be supplied separately so that they may be individually switched on and off.

  • Page 6: Dmx Terminator

    This DMX start address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the controller. PR5000 Wash Beam has 3 DMX modes. There are standard mode, extended mode and short mode. For example standard mode have 17 channels, so set the No. 1 projector’s address 001, No. 2 projector’s address 018, No.
  • Page 7 Press button FUNC to display DMX address; Press button UP and DOWN, you can set the address; Press button ENTER to confirm; In the same time. The GREEN LED will flash one time. It means the setting has been enabled. Press button FUNC, it will return to the upper menu one by one.

  • Page 8: Operation Menu

    OPERATION MENU 1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL PR LIGHTING PR5000 Wash Beam DMX Address=XXX DMX Address Short Mode DMX Address Standard Mode Extended Mode Reset Reset Are You Sure? DMX Mode Standard DMX Mode DMX Mode Extended...
  • Page 9 CMY Invert CTO Invert CTO Invert CTO Invert Defaults Defaults Defaults Restore Defaults Display On Always Display Mode Display Off After Delay Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level Display Dimming Display Options Disp Dim Level...
  • Page 10 Pan and Tilt = Pan and Tilt X.X.X Power Board = Power Board X.X.X DMX Channel View DMX values 1=XXX Electronic SN= Electronic SN ************ RDM Device Label RDM Device Label ANSI E1.20 RDM Version Factory Setup Factory Setup Factory Setup Test Modes Self Test Self Test...

  • Page 11: Error Messages

    ERROR MESSAGES In the course of launch, PR5000 Wash Beam examines automatically whether there are errors and if there are, it will display information as follows: Display Message Sensor Err S1-M1 Colour wheel (1# drive board motor 1) error Sensor Err S1-M2...

  • Page 12: Dmx Protocol

    DMX PROTOCOL Short Standard Extended FUNCTION DESCRIPTION mode mode mode Strobe 000-010 Black 011-025 Open 026-225 Strobe speed from slow to fast 226-246 Macro 247-255 Open Dimmer Black 000-003 Linear Dimming from dark to light 004-255 (0-100%) 16 bit Dimmer 000-255 Dimmer in 16 Bit precision Fine...
  • Page 13 Colour 7/white 114-120 white 121-127 Rainbow rotation speed from slow to 128-191 fast Rainbow reverse rotation speed f slow 192-255 to fast Fixed Gobo White 000-016 Wheel Gobo1 017-032 Gobo 2 033-048 Gobo 3 049-064 Gobo 4 065-080 Gobo 5 081-096 Gobo 6 097-112...

  • Page 14: Led Indication

    LED INDICATION DMX signal OK Green No DMX signal Flash DMX signal error Yellow Setting the panel Blue Power Running self test mode Red/Green Green Reserved Wireless signal OK Green Not connection to any transmitter Flash Lost contact with the transmitter or linking transmitter MAINTENANCE If the projector’s lens becomes damaged or broken it should be replaced.

  • Page 15: Troubleshooting

    TROUBLESHOOTING PROBLEM ACTION Check the fuse on the power socket. The projector doesn’t switch on Replace the lamp. The lamp comes on but the projector Make sure that the fixture’s start address is right doesn’t respond to the controller Replace or repair the DMX cable. Make sure the fan is working well or fans and their filters not The projector only functions intermittently blocked...

  • Page 16: Technical Data

    TECHNICAL DATA VOLTAGES: 200V/220V/230V/240V AC，50/60Hz POWER CONSUMPTION: 1800W@220V LAMP: OSRAM HTI 1500W/60/P50 Colour Temperature 6000°K PGJX50 ，single ended Socket Manufacturers Rated Lamp Life 750 Hours replacement PHILIPS MSR Gold 1500FastFit Colour Temperature 6000°K Socket PGJX50 ，single ended Manufacturers Rated Lamp Life 750 Hours replacement COLOURS: Linear CYM colour mixing system with macro...
  • Page 17 STROBE: Double shutter blades, 0.3~25 F.P.S HEAD MOVEMENT: Pan 540º, Tilt 270º with auto position correction BEAM ANGLE(Fresnel Lens ) 5.3 °bright mode 15.81°～31.05°, Linear zoom in 16 bit precision CONTROL: DMX512, 3 pin and 5 pin interfaces RDM control protocol 13 channels in short mode, 17channels in standard mode, and 22channels in extended mode.
  • Page 18 LIGHT OUTPUT: 18/21...
  • Page 19 DMX-SENS2 DMX-SENS1 LED4 LED1 LED3 LED2...

  • Page 20: Component Order Codes

    20A 115/250VAC MAINS FILTER THERMOSTAT 190010150 250V-16A 040070100 1500W Electronic BALLAST(1500W PR5000FS) 040090052 IGN40C12E IGNITOR LAMP( 1500W PR5000 FS) 100050087 HTI 1500W/60/P50 290151327 TILT DRIVE BELT 290151328 PAN DRIVE BELT 030060064 FAN NEAR GOBO FAN IN FRONT SIDE 030060065 030060066...
  • Page 21 PR LIGHTING LTD. 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N: 320020047 Version: 201111 21/21...
