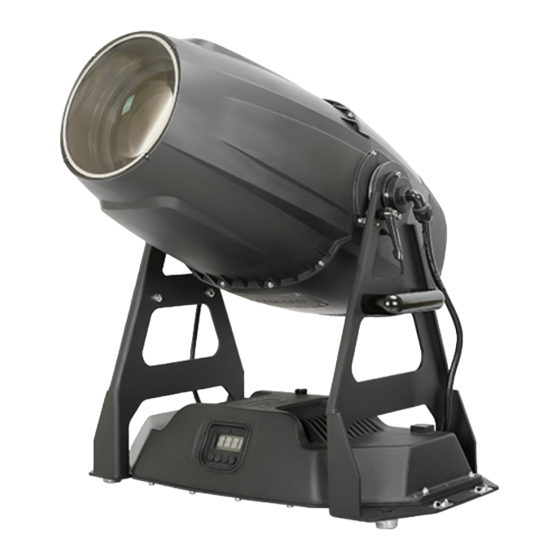

- Page 1 TANGO SPOT PR-6610 The user manual contains important information about the safe installation and use of a projector. Please read and follow these instructions carefully and keep the manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-lighting.com...
- Page 2 Any future technical change in the user manual won’t be with any further notice. Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date but the light source is not within the warranty...
-
Page 3: Safety And Warnings
1. SAFETY AND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. User Electrical Protective High Warning Flames Goggles Manual shock Gloves Temperature ●... - Page 4 ●While the ambient temperature is stable, the temperature of the housing will be 55℃ after 5-minute-opeartion; under stable condition, the temperature will be 70℃ ●While the lamp is stricken for the first time, there will be smoke and strange smell. It’s normal and does not mean the projector has some defects.
-
Page 5: Installation
3. APPEARANCE (The fixture has 2 versions with one having wireless control and the other not. Both versions must’t be exchanged after ex-factory) 灯体 Body suppor 灯架 灯座 base 4. INSTALLATION safety cord t 保险绳 suppor 支架 警告 Warning: For safety, please 为确保安全，... - Page 6 WARNING: The projector MUST be lifted or carried by the HANDLES instead of clamps. ● .For safety the safety cord should afford 10 times the Projector’s weight. ● ● POWER CONNECTION Connect the power cord as follows: L (live) =brown E (earth) =yellow/green N (neutral) =blue Before power connection, please ensure the power supplied must match what the nameplate says.
-
Page 7: Setup And Configuration
DMX OUT DMX IN DMX OUT DMX IN 接控制器 接回路插 DMX terminator DMX Controller ● DMX TERMINATOR In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. -
Page 8: Master/Slave Mode
Launch the projector. Press button ENTER more than 3seconds to unlock panel. Press button ENTER to display DMX address; Press button UP and DOWN, you can set the address; Press button ENTER to confirm; after powered on next time, the default will be last value saved Press button FUNC, it will return to the upper menu If DMX signal is available, LED indication is on. -
Page 9: Operation Menu
6. OPERATION MENU level menu level menu level menu level menu ADDR 1-492 Rese (Reset) (Standard) DMXM Ext 23 （DMX mode (Extended) Default：Standard ） Shor 18 (Short) LOSS （DMX signal loss (Normal time out) Default：Out） Hold (Hold last value) XLRF (XLR first) XLRO SIGS... - Page 10 (Fixture hours ) (Information (Display board) (Motor board1) (Motor board2) (Software versions) (Motor board3) (Fan board) (Head) (Display board) TEMP (Motor driver board1) （Temperature） (Motor driver board2) (Motor driver board3) (Fan board) DMXV Channel XXX=XXX (DMX value) E SN SN=XXXXXXXXXXXX (Electronic ID) RDMD (RDM version)
- Page 11 Whit (White) IRI1 IRIS (Iris effect1) (Iris) IRI2 (Iris effect2) IRI3 (Iris effect3) White GOB1- 6 (Gobo 1-6) Rota (Rotating gobo wheel) (Forward rotation) Reve (Reverse rotation) SHA1-6 (Shake effect1-6) Stop Rota (Gobo rotation) (Forward rotation) Reve (Reverse rotation) Pri1 (Prism1) Have (In)
- Page 12 0-255 (linear ) (Dimmer) Focu 0-255 (linear ) (Focus) Zoom 0-255 (linear ) (DMX mode) PreM (Preset memory) User (User memory) Stro (Strobe) 0-255 Dimm (Dimmer) 0-255 DimS (Dimmer speed) 0-255 ColW (Color wheel) 0-255 CH5 Iris 0-255 Iri M (Iris macro) 0-255 Mode R-G(Rotating gobo wheel)
-
Page 13: Dmx Protocol
7. DMX PROTOCOL Short Standard Extended Function DMX value Description Strobe 001-127 Pulse strobe from slow to fast 128-255 Normal strobe from slow to fast Dimmer 000-255 Linear dimmer from dark to bright Fine dimmer 000-255 Dimmer in 16 bit Dimmer speed 000-255 From slow to fast... - Page 14 231-255 Open 000-018 Open 019-036 Gobo1 037-054 Gobo 2 055-073 Gobo 3 074-091 Gobo 4 092-109 Gobo 5 110-127 Gobo 6 Rotating gobo 128-156 Forward rotation from slow to fast wheel 157-185 Reverse rotation from slow to fast 186-196 Gobo1 Shake from slow to fast 197-208 Gobo2 Shake from slow to fast 209-220...
- Page 15 128-170 Shake 1 from slow to fast 171-213 Shake 2 from slow to fast 214-255 Shake 3 from slow to fast 000-063 Stop 064-127 Forward rotation from slow to fast Metal effect wheel1 rotation 128-191 Stop 192-255 Reverse rotation from slow to fast 000-063 Stop 064-127...
-
Page 16: Technical Data
8. TECHNICAL DATA ELECTRIC SPECIFICATIONS ，50/60Hz Input voltage: 100V~240V AC 800W @ 220V Input power: Maximum current:3.7A Power factor: PF＞ 0.9 LIGHT SOURCE SPECIFICATIONS Manufacturers Rated Lamp Life 20000hours Power consumption 620W Color temperature 7000K COLORS 1 color wheel(6 exchangeable colors+ white) Half color effect, bi-directional rainbow effect with varied speeds Step/linear color change COLOR TEMPERATURE CORRECTION... - Page 17 CONTROL International standard DMX512 signal control protocol, 3-pin or 5-pin DMX 512 interface RDM control protocol Short mode 18channels, standard mode 21channles,extended mode 23channels Master/Slave synchronized Mode Stand alone mode Self test mode OTHER FUNCTIONS Fixture hours displayed Sensor detecting error diagnosis system Software versions displayed Input signal isolated Modular construction for easy maintenance...
-
Page 18: Circuit Diagram And Pcb Connections
9. CIRCUIT DIAGRAM AND PCB CONNECTIONS ● CIRCUIT DIAGRAM 18/22... -
Page 19: Pcb Connections
10 PCB CONNECTIONS PR-6510 Master Board Name Signal input Power input Thermal sensor (Reserved) PWM output(Reserved ) Signal output Wireless（Reserved） PR-6510 LED Driver board Name PWM dimmer interface FET dimmer interface Power input Driver output Driver output Driver output PR-6510 LED Module connection board Name Module NTC interface Module LED interface... - Page 20 PR-6510 7 channel board(Color wheel) Name Motor driver output 8-14 Hall positioning input Power Reserved Reserved Signal input Signal output 24V fan interface PR-6510 5 channel driver board(Gobo wheel) Name Motor driver output Power Signal input Signal output 9-10 Reserved 11-14 Hall positioning input PR-6510 7 channel driver board...
-
Page 21: Component Order Codes
11 COMPONENT ORDER CODES NAME CODE NO. QTY. REMARKS SWITCHING POWER SUPPLY 192010206 SWITCHING POWER SUPPLY 6190000004 LED MODULE 150020305 LED MODULE FAN 030060109 TURBO FAN FOR COLOR WHEEL 030040098 TURBO BASE FAN 030060064 LED DRIVER FAN 030060084 LENS FAN 030060050 FOCUS MOTOR 030040213A... - Page 22 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. Counterfeiting Will be Prosecuted! P/N: 6320000079...
