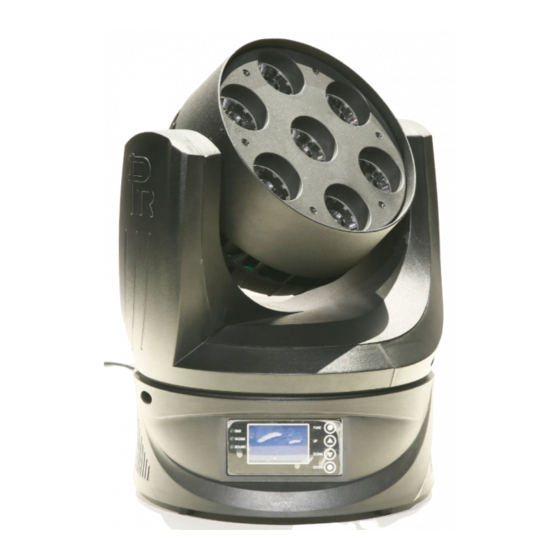

XLED 4007 BEAM
PR-8126
This product manual contains important information about the safe installation and use of this product. Please
read and follow these instructions carefully before installing and using the product and keep this manual in a
safe place for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XLED 4007 BEAM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PR Lighting XLED 4007 BEAM

Summary of Contents for PR Lighting XLED 4007 BEAM

  • Page 1 XLED 4007 BEAM PR-8126 This product manual contains important information about the safe installation and use of this product. Please read and follow these instructions carefully before installing and using the product and keep this manual in a safe place for future reference.
  • Page 2 Any damage caused by improper use will not be assumed by the manufacturer and / or dealer. Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date but the light source is not within the warranty.

  • Page 3: Safety And Warnings

    1. SAFETY AND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. Warning User Electrical Protective Flames High Goggles Manual shock Gloves Temperature When unpacking , check if there is transportation damage before using the projector.

  • Page 4: Troubleshooting

    cord supplied through the safety cord holes for safety support. Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from ● power mains. After running for 30minutes, the temperature of the housing of the projector is ℃...
  • Page 5 3. APPEARANCE Name Remark Head Yoke Base Control Panel Power Cable Transparent Waterproof Panel installed of the accessory package Wireless Antenna If used underwater or in dusty or other harsh areas.

  • Page 6: Installation

    4. INSTALLATION RIGGING ● Take 1 clamp and 1 the safety cord out from the package and mount 1 clamp on the BOTTOM of fixture with 2 retainers attached to the clamp. Hang the fixture on the steel truss and fasten the retainers attached to the clamp. Always ensure that the location that you are going to mount the unit is secure and is strong enough to support the weight of the unit (See the WARNING as shown above) To pass SAFETY CORD through the SAFETY HOLE on the back cover of the base of the fixture for safety! Always ensure that the unit is firmly anchored to avoid vibration and slipping whilst functioning.
  • Page 7 Note: If projectors are connected in series, please connect POWERIN port of the 1 projector with the Power Mains, then connect its POWER OUT with POWER IN of the 2 projector, and so on till all fixtures are connected. If the voltage supplied is 200V-240V, the maximum projectors connected is 8pcs, if it is 100V-120V, the maximum is 4pcs.

  • Page 8: Dmx Terminator

    DMX TERMINATOR ● In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain.

  • Page 9: Up And Down

    Press button ENTER to save your settings or enter the sub-menus. Press button UP or DOWN to change the parameters (increase or decrease the numbers) Press button FUNC, it will return to the upper menu one by one. If the button not pressed, the system will go back to display status automatically.

  • Page 10: Operation Menu

    Sound Operation ● To select different level(1-100) of sound sensitivity based on different operating environment under sound operation under Operation Mode. There are several different(0-8) sound effects for different operating environment under Sound Operation. Note: If several fixtures in series under Master/Slave mode, Only Master responds to external sound. 6.
  • Page 11 Display Reverse (Default: Off) English Language (Default: English) Chinese Sound Level 1-100 (Default:50) Display Contrast 0-31 Unlink Wireless Reset User Data Reset Option Set Factory Settings Parameter Transm Pan DMX Invert (Default: Off) Tilt DMX Invert (Default: Off) Option Set Pan Tilt Swap (Default: Off) 360 degrees...
  • Page 12 X Hall Ok/Er Y Hall Ok/Er Self Test Green Blue White Lamp R&G G&B R&B R&G&B Test Mode Pan Location 0-255 0-127 Stop 128-191 anti-clockwise rotation Pan Rotaing 0-255 form slow to fast 192-255 clockwise rotation from slow to fast Tilt Location 0-255 0-127 Stop...

  • Page 13: Dmx Protocol

    CH12 Pan Rotaing 0-255 CH13 Tilt Location 0-255 CH14 Tilt Rotaing 0-255 CH15 P&T Speed 0-255 CH16 Keep Time 0-255 X*40mS Note: 1. There is only one projector to be set as a Master in a signal cable if Master’s functions used, Please disable DMX control signal.
  • Page 14 Area 2 Red 000-255 Linear adjustment in Red from light to dark of Area 2 Area 3 Red 000-255 Linear adjustment in Red from light to dark of Area 3 Area 4 Red 000-255 Linear adjustment in Red from light to dark of Area 4 Area 5 Red 000-255 Linear adjustment in Red from light to dark of Area 5...

  • Page 15: Led Indication

    Remarks: 1. DMX Channel Priority sequence from high to low: Macro, Animation, CT, single color dimming of RGBW, Pan continuous rotation, Tilt continuous rotation 2. Pixel control map is as follows (Based on the initial status of the unit ） Area6 Area7 Area5...

  • Page 16: Technical Data

    9. TECHNICAL DATA VOLTAGES: 100V~240V AC,50/60Hz POWER CONSUMPTION 320W@220V LIGHT SOURCE: Qty: 7pcs of RGBW LED lamp Average life: 50000hrs Power: COLORS: Red/Green/Blue/White, with color macros Color temperature linearly adjustable DIMMER 0-100% linearly adjustable STROBE: Electronic strobe:0-25 F.P.S. LENS ANGLE: Beam Angle(1/2 peak) θ...

  • Page 17: Ambient Temperature

    High temperature engineering-plastic, IP20 WEIGHT: 5.7 Kg AMBIENT TEMPERATURE -20 °C ～ 4 0 °C SIZES: LIGHT OUTPUT : 7° Beam Angle(1/2 peak) θ 7 °lux 45456 11364 5051 2841 1818 1263 12.5 D I S T A N C E (m) D I A M E T E R (m) 0.31 0.61...
  • Page 18 13° 1/10 Peak) θ Field Angle( 13 °lux 42684 10671 4743 2668 1707 1186 12.5 D I S T A N C E (m) D I A M E T E R (m) 0.56 1.12 2.80 3.36 1.68 2.24...

  • Page 19: Circuit Diagram And Pcb Connections

    10. CIRCUIT DIAGRAM AND PCB CONNECTIONS CIRCUIT DIAGRAM ●...
  • Page 20 PCB CONNECTIONS ● 220020265 PR-8126 Master Board: P/N Power Signal In Signal Out Wireless Display PR-8126 XY Board: P/N:220020266 Power Signal Optical Coupler Magnet Sensor...
  • Page 21 PR-8126 LED Driver Board P/N:220020273 P o w e r L E D D r i v e r 1 L E D D r i v e r 2 L E D D r i v e r 3 L E D D r i v e r 4 L E D D r i v e r 5 L E D D r i v e r 6...

  • Page 22: Component Order Codes

    11. COMPONENT ORDER CODES NAME PART NO. QUANTITY REMARK 192010205 POWER SUPPLY 40W LED ASSAMBLY 230060529 071100053 LENS OF PR-8123 FUSE 270041037 TILT/ PAN BELT 290151413 8025FAN 030060108 4010 FAN 030060093 030040239 STEP MOTOR( PAN/TILT ) PAN/TILT MOTOR DRIVER BOARD 230060547 LED DRIVER PCB 230060528...
  • Page 24 PR LIGHTING LTD. 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N: 320020421 Version: 20170213...
