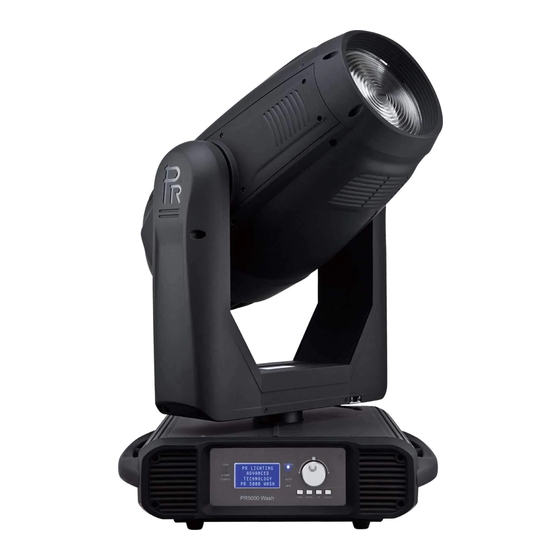

PR5000 Wash
This product manual contains important information about the safe installation and use of this
projector. Please read and follow these instructions carefully and keep this manual in a safe place
for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PR5000 Wash and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PR Lighting PR5000 Wash

Summary of Contents for PR Lighting PR5000 Wash

  • Page 1 PR5000 Wash This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-lighting.com...

  • Page 2: Table Of Contents

    INDEX SAFE USAGE OF THE PROJECTOR INSTALLING THE PROJECTOR FITTING THE LAMP POWER SUPPLY – MAINS CONTROL CONNECTIONS DMX TERMINATOR SETUP OPTIONS-PROJECTOR CONFIGURATION TO SET THE DMX START ADDRESS OPERATION MENU ERROR MESSAGES REPLACING FRESNEL LENS DMX PROTOCOL LED INDICATION MAINTENANCE KEEPING THE PROJECTOR CLEAN TROUBLESHOOTING...

  • Page 3: Safe Usage Of The Projector

    SAFE USAGE OF THE PROJECTOR When unpacking and before disposing of the carton check there is no transportation damage before using the projector. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The projector is for indoor use only, IP20.

  • Page 4: Fitting The Lamp

    INSTALL THE PROJECTOR WARNING CLAMP SAFETY CORD To pass 2 SAFETY CORDS CLAMP through 4 HOLES for safety! HANDLE CONTROL PANEL Take 2 clamps and 2 safety cords out from the package and mount 2 clamps on the underside of fixture with 2 retainers attached to each clamp.

  • Page 5: Power Supply – Mains

    POWER SUPPLY-MAINS Connect the power cord as follows: L (live) =brown E (earth) =yellow/green N (neutral) =blue Use the plug provided to connect the mains power to the projector paying attention to the voltage and frequency marked on the panel of the projector. It is recommended that each projector be supplied separately so that they may be individually switched on and off.

  • Page 6: Dmx Terminator

    This DMX start address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the controller. PR5000 Wash have 3 DMX modes. There are standard mode, extended mode and short mode. For example standard mode have 17 channels, so set the No. 1 projector’s address 001, No. 2 projector’s address 018, No.
  • Page 7 Press button FUNC to display DMX address; Press button UP and DOWN, you can set the address; Press button ENTER to confirm; In the same time. The GREEN LED will flash one time. It means the setting has been enabled. Press button FUNC, it will return to the upper menu one by one.

  • Page 8: Operation Menu

    OPERATION MENU 1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL PR LIGHTING DMX Address=XXX PR5000 WASH DMX Address Short Mode DMX Address Standard Mode Extended Mode Reset Reset Are You Sure? DMX Mode Standard DMX Mode DMX Mode Extended DMX Mode...
  • Page 9 CTO Invert CTO Invert CTO Invert Defaults Defaults Defaults Restore Defaults Display On Always Display Mode Display Off After Delay Display Invert Display Invert Display Invert Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level Display Options Disp Dim Level Display Dimming...
  • Page 10 Driver Board 2 = Driver Board 2 X.X.X Pan and Tilt = Pan and Tilt X.X.X Power Board = Power Board X.X.X DMX Channel View DMX values 1=XXX Electronic SN= Electronic SN ************ RDM Device Label RDM Device Label ANSI E1.20 RDM Version Factory Setup Factory Setup...

  • Page 11: Error Messages

    ERROR MESSAGES In the course of launch, PR5000 Wash examines automatically whether there are errors and if there are, it will display information as follows: Display Message Sensor Err S1-M1 Colour wheel (1# drive board motor 1) error Sensor Err S1-M2...

  • Page 12: Dmx Protocol

    DMX PROTOCOL Short Standard Extended FUNCTION DESCRIPTION mode mode mode 000-010 Black 011-025 Open Strobe 026-225 Strobe speed from slow to fast 226-246 Macro 247-255 Open 000-003 Black Dimmer 004-255 Dimming from dark to light (0-100%) Dimmer Fine 000-255 Dimmer in 16 Bit precision 000-016 White 017-035...
  • Page 13 white 121-127 Rainbow rotation speed from fast to 128-191 slow Rainbow reverse rotation speed from 192-255 fast to slow 000-008 White 009-015 White/colour 1 016-023 Colour 1 024-030 Colour 1/colour 2 031-038 Colour 2 039-045 Colour 2/colour 3 046-053 Colour 3 Colour 3/colour 4 054-060 061-068...

  • Page 14: Led Indication

    LED INDICATION DMX signal OK Green No DMX signal Flash DMX signal error Yellow Setting the panel Blue Power Running self test mode Red/Green Green Reserved Wireless signal OK Green No connection to any transmitter Flash Lost contact with the transmitter or linking transmitter MAINTENANCE If the projector’s lens becomes damaged or broken it should be replaced.

  • Page 15: Troubleshooting

    TROUBLESHOOTING PROBLEM ACTION Check the fuse on the power socket. The projector doesn’t switch on Replace the lamp. The lamp comes on but the projector Make sure that the projector is correctly configurated. doesn’t respond to the controller Replace or repair the DMX cable. The projector only functions intermittently Make sure the fan is working and not dirty.

  • Page 16: Technical Data

    TECHNICAL DATA VOLTAGES: 200V/220V/230V/240V AC，50/60Hz POWER CONSUMPTION: 1800W@220V LAMP: OSRAM HTI 1500W/60/P50 Colour Temperature 6000°K Socket PGJX50 ，single ended Manufacturers Rated Lamp Life 750 Hours replacement PHILIPS MSR Gold 1500FastFit Colour Temperature 6000°K PGJX50 ，single ended Socket Manufacturers Rated Lamp Life 750 Hours replacement COLOURS: Smooth CYM colour mixing system with macro...
  • Page 17 OPTIONAL CONVEX LENS BEAM ANGLE: 10°in highlight mode 12°～35° linearly adjustable CONTROL: DMX512, 3 pin and 5 pin interfaces RDM control protocol 13 channels in short mode, 17 channels in standard mode, and 22 channels in extended mode. Self-test mode OTHER FUNCTIONS: Adjustable Pan &...
  • Page 18 FRESNEL LENS LIGHT OUTPUT: OPTIONAL CONVEX LENS LIGHT OUTPUT 18/22...
  • Page 19 M1-6A DIMMER View side of no axletree M1-1 M1-2 M1-3 M1-4 M1-5 M1-6B M2-1 M2-2 M2-3 M2-4 COLOUR1 CYAN YELLOW MAGENTA DIMMER COLOUR2 ZOOM STROBE 1 STROBE 2 View side of no axletree View side of no axletree View side of no axletree View side of no axletree View side of no axletree View side of no axletree...

  • Page 20: Component Order Codes

    COMPONENT ORDER CODES NAME PART NO. QUANTITY REMARK 192010136 S-350-24 POWER SUPPLY 193020008 20A 115/250VAC MAINS FILTER 190010150 250V-16A THERMOSTAT 040070100 1500W ELECTRIC BALLAST 040090052 IGN40C12E IGNITOR 100050087 HTI 1500W/60/P50 LAMP TILT DRIVE BELT 290151327 290151328 PAN DRIVE BELT 030060064 FAN NEAR FILTER IN TOP BOX 030060065 FAN IN FRONT BOX...
  • Page 21 21/22...
  • Page 22 PR LIGHTING LTD. 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N: 320020034 Version: 20110704 22/22...
