Metra Electronics 99-7397B Installation Instructions Manual

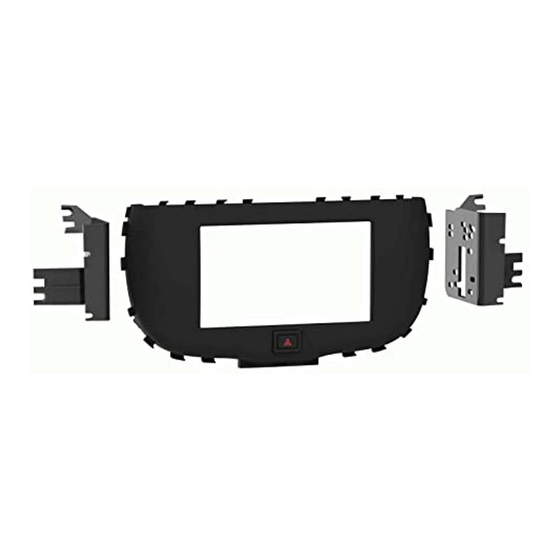

KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Panel clip legs • D) Pocket • E) Panel clips (2) • F) #6 x 3/8" Phillips screws (4)
• G) #8 x 3/8" Phillips screws (8) • H) Steering wheel control interface (not shown) • I) 6 volt factory camera adapter (not shown)
• J) Radio wire harness (not shown) • K) Antenna adapter (not shown)
A B
Metra. The World's Best Kits.
®
Kia Soul
(Non-NAV)
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted scratch resistant matte black
• Retains factory steering wheel controls (pre-wired in included harnessing)
• Radio harness included with connections to retain factory camera
C
F
MetraOnline.com
2020
D E
G
© COPYRIGHT 2020 METRA ELECTRONICS CORPORATION
99-7397B
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation ....................................................2-3
Kit Assembly
–ISO DIN radio provision with pocket ..................4
–ISO DDIN radio provision .....................................4
AXXESS Interface installation ............................5-11
Final Assembly ...................................................... 11
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: Included in kit
Antenna Adapter: Included in kit
SWC Interface: Included in kit
6v Camera Adapter: Included in kit
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Socket wrench • T-25 Torx driver • Cutting tool
Attention!
Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
REV. 11/11/20 INST99-7397B
