INSTALLATION INSTRUCTIONS FOR PART 99-7607B
(Not for models equipped with factory NAV)
99-7607B
KIT FEATURES
• DIN Radio Provision
• ISO Mount Radio Provision
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
• Painted matte black to match
factory finish
KIT COMPONENTS

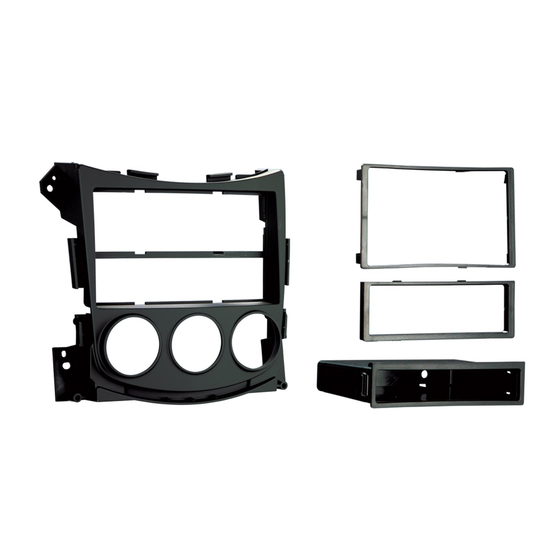

• A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Pocket • E) Double DIN Brackets
• F) Double DIN Trim Plate • G) A/C Module Brackets
A
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Wiring Harness:
• 70-7552 - Nissan harness 2007-up
• 40-NI12 - Nissan antenna adapter 2007-up
Panel Removal Tool • Small Flat Blade Screwdriver
PPLIC TIONS
NISSAN 370Z
2009-UP
B
C
E
F
TOOLS REQUIRED:
• Phillips Screwdriver • Socket Set
D
G
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Metra Electronics 99-7607B
Summary of Contents for Metra Electronics 99-7607B

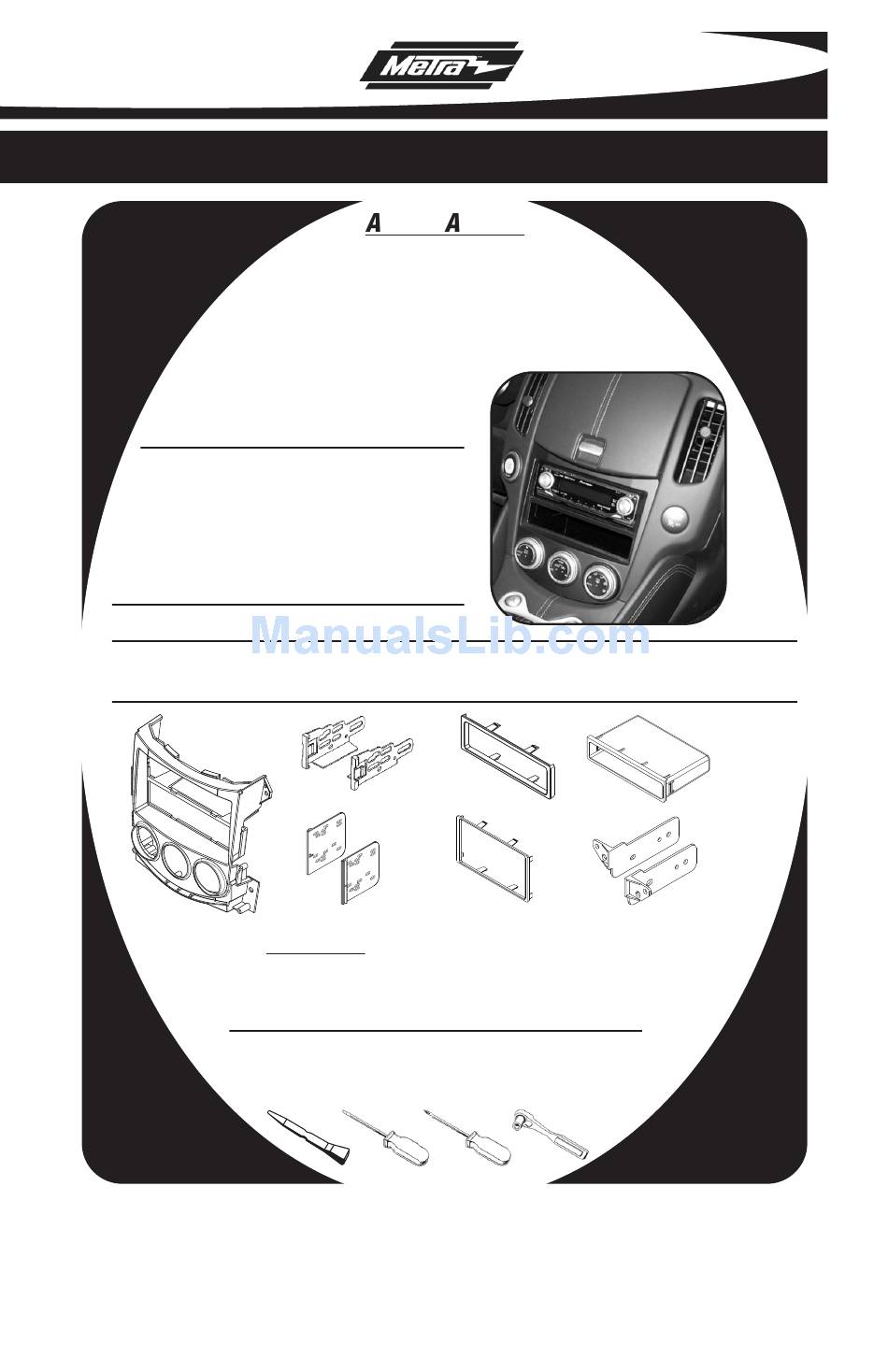

- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-7607B PPLIC TIONS NISSAN 370Z 2009-UP (Not for models equipped with factory NAV) 99-7607B KIT FEATURES • DIN Radio Provision • ISO Mount Radio Provision • Double DIN Radio Provision • Stacked ISO Mount Units Provision •...
- Page 2 99-7607B DASH DISASSEMBL Y NISSAN 370Z 2009-UP isconnect the negative battery terminal to prevent an accidental short circuit. AUTOMATIC SHIFT MODELS: Unclip and remove the small shifter trim panel including the hazard switch. (Figure A) Unclip and remove the large shifter trim panel.
- Page 3 99-7607B DASH DISASSEMBL Y NISSAN 370Z 2009-UP 4 Remove (2) Phillips screws from the bottom of the large trim panel includ- ing the a/c vents and pocket assem- bly then unclip and remove the panel. (Figure D) 5 Remove (4) Phillips screws securing the factory radio and a/c control.
- Page 4 99-7607B KIT PREPARATION NISSAN 370Z 2009-UP Secure the a/c control into the 99-7607 radio housing using the factory hardware. (Figure A) 2 Attach the included brackets to the a/c module then secure it into the dash using the factory hardware.
- Page 5 99-7607B KIT ASSEMBL Y DIN RADIO PROVISION WITH POCKET Note: Refer also to the instructions included with the aftermarket radio. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.
- Page 6 99-7607B KIT ASSEMBL Y ISO MOUNT RADIO PROVISION WITH POCKET Note: Refer also to the instructions included with the aftermarket radio. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.
- Page 7 99-7607B KIT ASSEMBL Y DOUBLE DIN/ST ACKED ISO UNITS RADIO PROVISION Note: Refer also to the instructions included with the aftermarket radio. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.
