11. Locate the plastic standoff in the Duplexing Option Kit and install it in
6-4.EPS

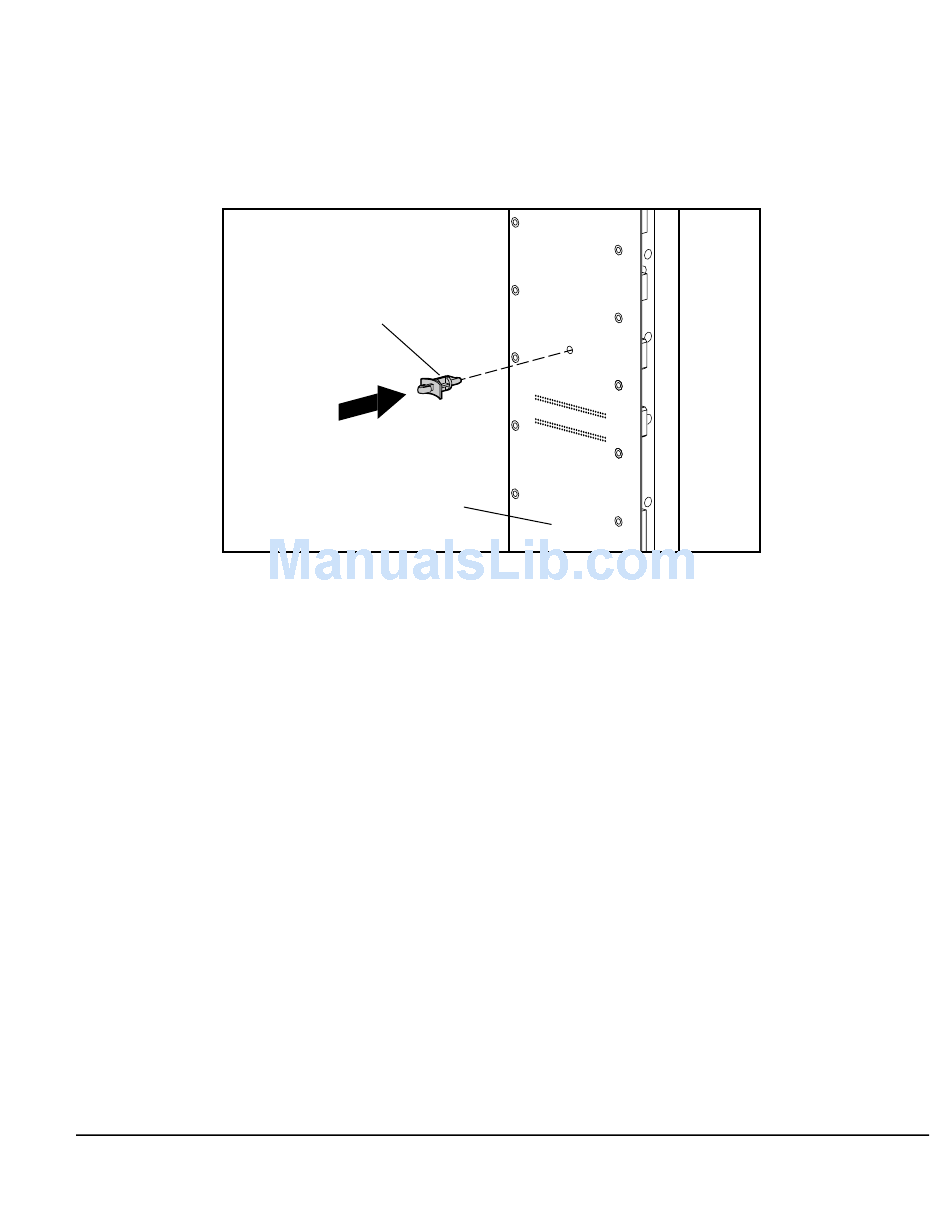

Figure 6-4. Installing the Standoff
12. Orient the Duplexing board as shown in Figure 6-5. Install it onto the
the appropriate hole on the drive cage Backplane. See Figure 6-4.
Standoff
Backplane
Board
Backplane by carefully aligning the double rows of pins on the board
with the mating sockets on the Backplane as in Figure 6-6. Be sure to
observe the locations of the keying pins and align the plastic standoff
with its mating hole in the Duplexing board. Gently but firmly press the
board onto the Backplane as far as it will go. The standoff will snap into
place in the Duplexing board.
