Page 1

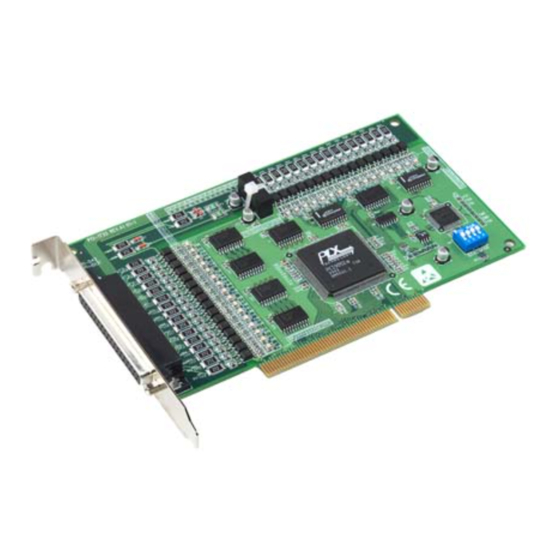

User Manual PCI-1730U/1733/1734 32-ch Isolated Digital I/O PCI Cards...
Page 2
No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information.
If one of the following situations arises, get the equipment checked by service personnel: The power cord or plug is damaged. Liquid has penetrated into the equipment. The equipment has been exposed to moisture. PCI-1730U/1733/1734 User Manual...
Page 5
The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). Safety Precaution - Static Electricity DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.Safety Precaution - Static Electricity Follow these simple precautions to protect yourself from harm and the products from damage.
For easy monitoring, each isolated digital input channel is equipped with one red LED, and each isolated digital output channel is equipped with one green LED to show its ON/OFF status. The PCI-1730U and PCI-1733’s isolated digital input chan- nels are ideal for digital input in noisy environments or with floating potentials.
Page 11
Wide Input Range The PCI-1730U/1733 has a wide range of input voltage from 5 to 30 VDC, and is suit- able for most industrial applications with 12 VDC or 24 VDC input voltage.
Board ID The PCI-1730U/1733/1734 has a built-in DIP Switch that helps define each card’s ID when multiple PCI-1730U/1733/1734 cards have been installed on the same PC chassis. The board ID setting function is very useful when users build their system with multiple PCI-1730U/1733/1734 cards.
Software Overview Advantech offers a rich set of DLL drivers, third-party driver support and application software to help fully exploit the functions of your PCI-1730U/1733/1734 card: Device Drivers (on the companion CD-ROM) LabVIEW driver Advantech ActiveDAQ Advantech GeniDAQ Programming choices for DA&C cards: You may use Advantech application software such as Advantech Device Drivers.
Page 14
Function Overview chapter on the Device Drivers Manual. Programming with Device Drivers Function Library Advantech Device Drivers offers a rich function library to be utilized in various appli- cation programs. This function library consists of numerous APIs that support many development tools, such as Visual C++, Visual Basic, Delphi and C++ Builder.
Accessories Advantech offers a complete set of accessory products to support the PCI-1730U/ 1733/1734 card. These accessories include: Wiring Cable The PCL-10137 shielded cable is specially designed for PCI-1730U/1733/1734 cards to provide high resistance to noise. To achieve better signal quality, the signal wires are twisted in such a way as to form a “twisted-pair cable”, reducing cross-talk and...
This chapter gives users a package item checklist, proper instructions about unpack- ing and step-by-step procedures for both driver and card installation. Unpacking After receiving your PCI-1730U/1733/1734 package, please inspect its contents first. The package should contain the following items: PCI-1730U/1733/1734 card Companion CD-ROM (Device Drivers included) User’s Manual...
Driver Installation We recommend you to install the driver before you install the PCI-1730U/1733/1734 card into your system, since this will guarantee a smooth installation process. The Advantech Device Driver Setup program for the PCI-1730U/1733/ 1734 card is included on the companion CD-ROM that is shipped with your DA&C card package.
Touch the metal part on the surface of your computer to neutralize the static electricity that might be on your body. Insert the PCI-1730U/1733/1734 card into a PCI slot. Hold the card only by its edges and carefully align it with the slot. Insert the card firmly into place. Use of excessive force must be avoided, otherwise the card might be damaged.
(just click the Cancel button) and set up the driver according to the steps described in 2.2 Driver Installation. After the PCI-1730U/1733/1734 card is installed, you can verify whether it is properly installed on your system in the Device Manager: 1.
Device Setup & Configuration The Advantech Device Manager program is a utility that allows you to set up, config- ure and test your device, and later stores your settings on the system registry. These settings will be used when you call the APIs of Advantech Device Drivers.
Configuring the Device On the PCI-1730U Device Setting dialog box (Fig. 2-6), you can configure the IDI00, IDI01 and DI00, DI01 Interrupt trigger mode either as Rising Edge or Fall- ing Edge, and Enable or Disable the IDI00, IDI01 and DI00, DI01.
A good signal con- nection can avoid unnecessary and costly damage to your PC and other hardware devices. This chapter provides useful information about how to connect input and output signals to the PCI-1730U/1733/1734 via the I/O connector. Switch and Jumper Settings PCI-1730U The PCI-1730U card has two function jumper settings.
Table 3.2: Board ID setting (SW1) Board ID Note: On: 1, Off: 0 PCI-1733 Figure 3.2 Card Connector, Jumpers and Switches PCI-1730U/1733/1734 User Manual...
Table 3.3: Board ID setting (SW1) Board ID Note: On: 1, Off: 0 PCI-1734 The PCI-1734 card has one function jumper setting. Figure 3.3 Card Connector, Jumpers and Switches PCI-1730U/1733/1734 User Manual...
Table 3.4: Board ID setting (SW1) Board ID Note: On: 1, Off: 0 Signal Connections PCI-1730U Pin Assignments IDO 0 IDO 1 IDI 0 IDI 1 IDO 2 IDO 3 IDI 2 IDI 3 IDO 4 IDO 5 IDI 4...
IDO 13 Digital ground IDO 14 18 IDO 15 TTL-level Digital Input/Output The PCI-1730U has 16 TTL-level digital inputs and 16 TTL-level digital outputs. The following figure shows connections to exchange digital signals with other TTL devices: PCI-1730 TTL device Figure 3.4 TTL-level DI/O Connection...
Channels 8 ~ 15 use ECOM1.) The following figure shows how to connect an exter- nal input source to the card's isolated inputs. External Internal IDI0 contact ECOM Isolated Circuit IDI1 Contact EGND Figure 3.6 Isolated DI Connection PCI-1730U/1733/1734 User Manual...
Isolated Digital Output PCI-1730U provides 16 isolated DO channels. If the external voltage (5 ~ 40V) is connected to each isolated output channel (IDO) and its isolated digital output turns on (300 mA per channel maximum), the card's current will sink from the external volt- age.CN5 provides two EGND pins for IDO connection.
+5 V @ 250 mA +12 V @ 35 mA Max. +5 V @ 400 mA Temperature Operation 0~+60°C (32~140°F) (refer to IEC 68-2-1,2) Storage -20~+85°C (-4~185°F) Relative Humidity 5~95%RH non-condensing (refer to IEC 68-2-3) Certification CE certified PCI-1730U/1733/1734 User Manual...
+5 V @ 200 mA +12 V @ 50 mA Max. +5 V @ 350 mA Temperature Operation 0~+60°C (32~140°F) (refer to IEC 68-2-1,2) Storage -20~+85°C (-4~185°F) Relative Humidity 5~95%RH non-condensing (refer to IEC 68-2-3) Certification CE certified PCI-1730U/1733/1734 User Manual...
+5 V @ 150 mA +12 V @ 15 mA Max. +5 V @ 250 mA Temperature Operation 0~+60°C (32~140°F) (refer to IEC 68-2-1,2) Storage -20~+85°C (-4~185°F) Relative Humidity 5~95%RH non-condensing (refer to IEC 68-2-3) Certification CE certified PCI-1730U/1733/1734 User Manual...
PCI-1734 Address Bus Control Control Bus Logic Data Bus IDO0 ~ IDO7 PCI 9052 IDO8 ~ IDO15 Isolation D-Sub IDO16 ~IDO23 37 Pin Connector IDO24 ~ IDO31 PCOM0 ~ PCOM3 EGND PCI-1730U/1733/1734 User Manual...
For example, BASE+0 is the card's base address and BASE+6 is the base address plus six bytes. The table C-1 shows the function of each register of the PCI-1730U/ 1733/1734 or driver and its address relative to the card's base address.
IDO25 IDO24 Board ID Register Isolated Digital Input Registers BASE+0H/1H (/2H/3H) The PCI-1730U offers 16-ch isolated digital input channels. These channels use the input ports at addresses BASE+0H/1H. Table C-1 Register for Isolated Digital Input Read Isolated Digital Input Bit #...
Isolated Digital Output Register BASE+0H/1H (/2H/3H) The PCI-1730U offers 16-ch isolated digital output channels. These channels use the registries at addresses BASE+0H/1H. Table C-3 Register for Isolated Digital Output Write Isolated Digital Output Bit # BASE + 0H IDO7 IDO6...
Non-isolated Digital Output Register BASE+2H/3H The PCI-1730U offers 16-ch digital output channels. These channels use the input ports at addresses BASE+2H/3H. Table C-6 Register for Digital Output Write Digital Output Bit # BASE + 2H BASE + 3H DO15 DO14...
Interrupt Status Register BASE+8H/CH/10H The PCI-1730U Interrupt Status Register control the status of four interrupt signal sources (IDI0, IDI1, DI0, DI1). Table C-8 Register for Interrupt Status Read Interrupt Status Register Bit # BASE + 8H DI1EN DI0EN IDI1EN IDI0EN...
Page 50
Falling edge trigger C.9 Interrupt Control Register — BASE+8H/CH/10H The PCI-1730U Interrupt Control Register controls the status of four interrupt sig- nal sources (IDI0, IDI1, DI0, DI1). The user can clear the interrupt by writing its corre- sponding value to the Interrupt Control Register, as shown in below table.
Page 51
Interrupt triggering control bits (n = 0, 1, 16, 17) The interrupt can be triggered by a rising edge or falling edge of the interrupt signal, as determined by the value in this bit. Rising edge trigger Falling edge trigger PCI-1730U/1733/1734 User Manual...
