Advantech PCI-1734 Startup Manual

PCI-1734
32-channel Isolated Digital Output Card
Packing List
Before installation, please make sure that you have
received the following:
• PCI-1734 card
• Driver CD
• Quick Start User Manual
If anything is missing or damaged, contact your dis-
tributor or sales representative immediately.
User Manual
For more detailed information on this product, please
refer to the PCI-1730_1733_1734 User Manual on
the CD-ROM (PDF format).
CD:\Documents\Hardware Manuals\PCI\PCI-
1730U_1733_1734
Declaration of Conformity
FCC Class A
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reason-
able protection against harmful interference when the equip-
ment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residen-
tial area is likely to cause interference in which case the user
is required to correct interference at his own expense.
CE
This product has passed the CE test for environmental speci-
fications when shielded cables are used for external wiring.
We recommend the use of shielded cables. This kind of cable
is available from Advantech. Please contact your local sup-
plier for ordering information.
Overview

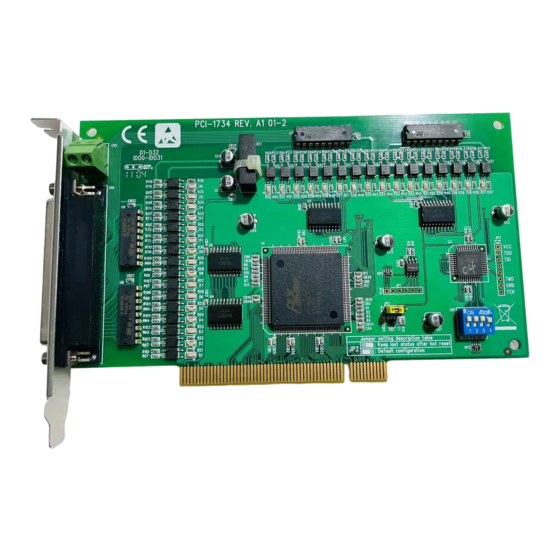

The Advantech PCI-1734 is a 32-channel isolated digital
output card for the PCI bus. For easy monitoring, each iso-
lated digital input channel is equipped with one red LED,
and each isolated digital output channel is equipped with one
green LED to show its ON/OFF status. The PCI-1734 pro-
vides specific functions for different user requirements.
Notes
For more information on this and other Advantech prod-
ucts, please visit our websites at:
http://www.advantech.com/eAutomation
For technical support and service:
http://www.advantech.com/support/
This startup manual is for PCI-1734
Part No.2003173401
1 Startup Manual
Software Installation
Hardware Installation
1. 1. Turn off your computer and unplug the power
cord and cables. TURN OFF your computer
before installing or removing any components on
the computer.
2. Remove the cover of your computer.
3. Remove the slot cover on the back panel of your
2nd Edition
computer.
May 2011
