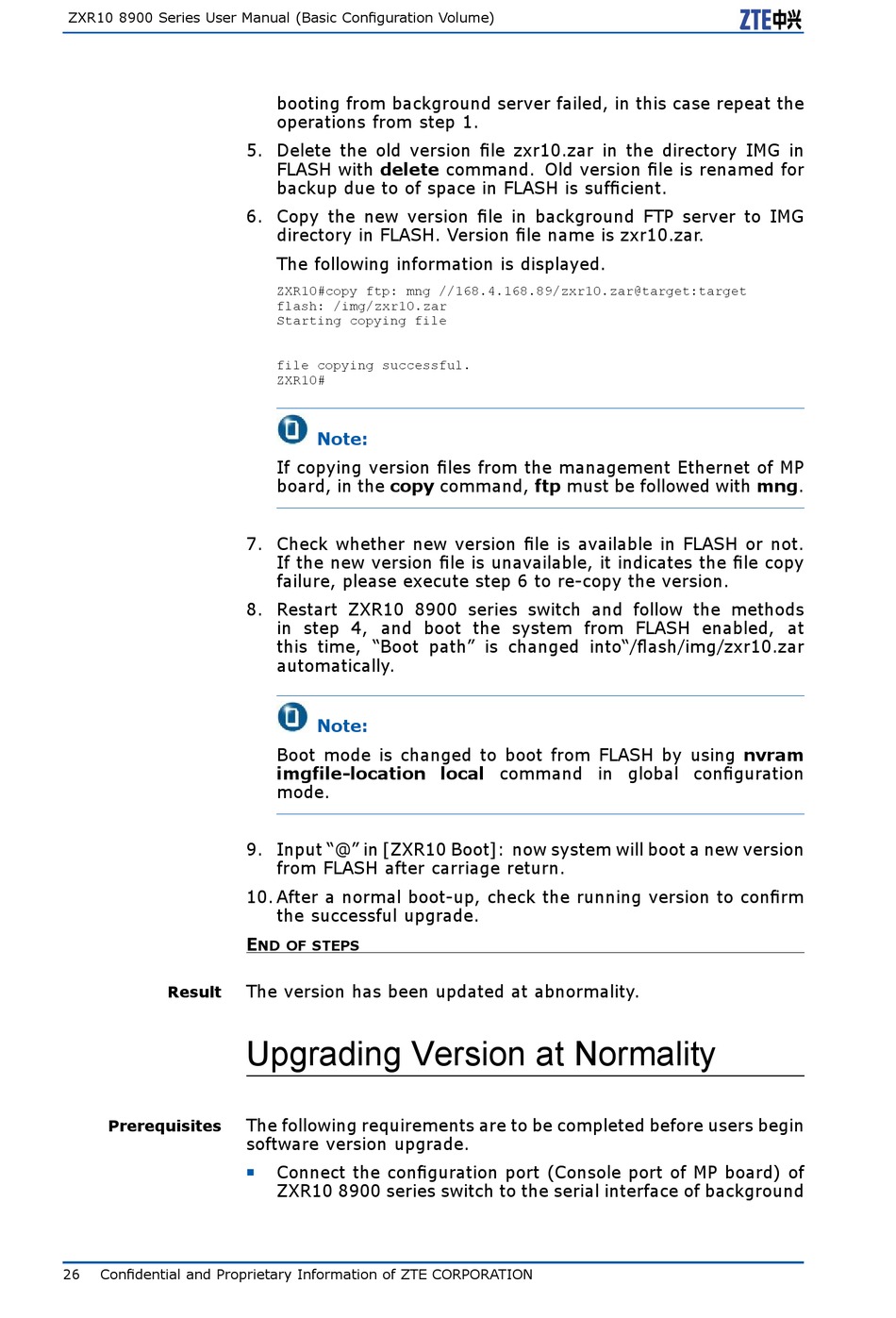

ZXR10 8900 Series User Manual (Basic Configuration Volume)
Result
Prerequisites
26 Confidential and Proprietary Information of ZTE CORPORATION
booting from background server failed, in this case repeat the
operations from step 1.
5. Delete the old version file zxr10.zar in the directory IMG in
FLASH with delete command. Old version file is renamed for
backup due to of space in FLASH is sufficient.
6. Copy the new version file in background FTP server to IMG
directory in FLASH. Version file name is zxr10.zar.
The following information is displayed.
ZXR10#copy ftp: mng //168.4.168.89/zxr10.zar@target:target
flash: /img/zxr10.zar
Starting copying file
file copying successful.
ZXR10#
Note:
If copying version files from the management Ethernet of MP
board, in the copy command, ftp must be followed with mng.
7. Check whether new version file is available in FLASH or not.
If the new version file is unavailable, it indicates the file copy
failure, please execute step 6 to re-copy the version.
8. Restart ZXR10 8900 series switch and follow the methods
in step 4, and boot the system from FLASH enabled, at
this time, "Boot path" is changed into"/flash/img/zxr10.zar
automatically.
Note:
Boot mode is changed to boot from FLASH by using nvram
imgfile-location local command in global configuration
mode.
9. Input "@" in [ZXR10 Boot]: now system will boot a new version
from FLASH after carriage return.
10. After a normal boot-up, check the running version to confirm
the successful upgrade.
E
ND OF STEPS
The version has been updated at abnormality.

Upgrading Version at Normality

The following requirements are to be completed before users begin
software version upgrade.
� Connect the configuration port (Console port of MP board) of
ZXR10 8900 series switch to the serial interface of background
