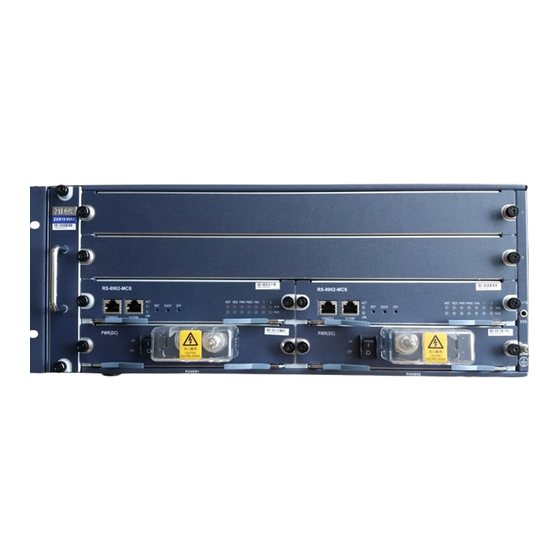

Zte ZXR10 8900 Series User Manual

10g routing switch (dpi volume)
Hide thumbs Also See for ZXR10 8900 Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Command Manual, User Manual
ZXR10 8900 Series
10G Routing Switch
User Manual (DPI Volume)
Version 2.8.02.C
ZTE CORPORATION
ZTE Plaza, Keji Road South,
Hi-Tech Industrial Park,
Nanshan District, Shenzhen,
P. R. China
518057
Tel: (86) 755 26771900 800-9830-9830
Fax: (86) 755 26772236
URL: http://support.zte.com.cn
E-mail: doc@zte.com.cn

Advertisement

Table of Contents
loading

Related Manuals for Zte ZXR10 8900 Series

Summary of Contents for Zte ZXR10 8900 Series

  • Page 1 ZXR10 8900 Series 10G Routing Switch User Manual (DPI Volume) Version 2.8.02.C ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, P. R. China 518057 Tel: (86) 755 26771900 800-9830-9830 Fax: (86) 755 26772236 URL: http://support.zte.com.cn...
  • Page 2 The contents of this document are protected by copyright laws and international treaties. Any reproduction or distribution of this document or any portion of this document, in any form by any means, without the prior written consent of ZTE CORPO- RATION is prohibited.

  • Page 3: Table Of Contents

    Contents About This Manual..........i What is DPI? .............1 What is DPI? ..............1 DPI Applications ............. 2 Configuring Signature Symbol ......3 Signature Symbol Overview ..........3 Configuring Signature Symbol .......... 3 Adding Signature Symbol ..........3 Setting Signature Symbol Hit-Limit-Number and Application Type ..........
  • Page 4 Adding Signature Symbol Sequence ......9 Adding Signature Symbol Application ......10 Binding Flow-Pool with Current Subservice ....10 Setting Permit/Deny Policy for Current Subservice ..10 Setting Aging Time for Current Subservice ....11 Showing Configuration of Designated Subservice ...11 Subservice Configuration Example ........11 Configuring Service .........

  • Page 5: About This Manual

    About This Manual This manual is ZXR10 8900 Series (V2.8.02.C) 10G Rout- ing Switch User Manual (DPI Volume) and applies to ZXR10 8902/8905/8908/8912 10G routing switch (V2.8.02.C). ZXR10 8900 series 10G routing switch has the following related manuals: Summary Manual ZXR10 8900 Series (V2.8.02.C) 10G...
  • Page 6 ZXR10 8900 Series User Manual (DPI Volume) Manual Summary ZXR10 8900 Series (V2.8.02.C) 10G This manual describes Routing Switch User Manual (IPv4 static routing configuration, Routing Volume) RIP configuration, OSPF configuration, IS-IS configuration, BGP configuration, load balancing configuration, multicast routing configuration, IP/LDP FRR configuration and BFD configuration.
  • Page 7 ZXR10 8900 series 10G routing switch. Commands supported by ZXR10 8900 series (V2.8.02.C) 10G routing switch are based on uniform platform ZXROS V4.8.22. ZXR10 8900 Series (V2.8.02.C) 10G Routing Switch User Manual (DPI Volume) contains the following chapters: Chapter Summary...
  • Page 8 ZXR10 8900 Series User Manual (DPI Volume) Chapter Summary Chapter 6 Service This chapter describes basic concept, Configuration configuration and configuration example of DPI service. Chapter 7 DPI This chapter describes basic concept, Template Configuration configuration and configuration example of DPI template.

  • Page 9: What Is Dpi

    As for the latter service, resolve the details of IP packet with the service identification method mentioned above and learn the type of service traffic through searching of key word or service behavior statistics. Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 10: Dpi Applications

    ZXR10 8900 Series User Manual (DPI Volume) � Service Control After identifying service traffic with DPI technology, control ser- vice traffic according to combination conditions of network con- figurations, such as user, timer, bandwidth, history, traffic and so on. There are several control ways: normal forwarding, blocking, limiting bandwidth, traffic shaping, re-marking prior- ity and so on.

  • Page 11: Configuring Signature Symbol

    Symbol Adding Signature Symbol Step Command Function This enters DPI configuration ZXR10(config)#dpi mode. This enters signature symbol ZXR10(config-dpi)#signature-symbol <signature-symbol-id> configuration mode. This adds a signature entry to ZXR10(config-dpi-signature-symbol-2)#add signature-entry < signature-entry-id> signature symbol. Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 12: Setting Signature Symbol Hit-Limit-Number And Application Type

    ZXR10 8900 Series User Manual (DPI Volume) Setting Signature Symbol Hit-Limit-Number and Application Type Step Command Function This enters DPI configuration ZXR10(config)#dpi mode. This enters signature symbol ZXR10(config-dpi)#signature-symbol <signature-symbol-id> configuration mode. This command sets signature ZXR10(config-dpi-signature-symbol-2)#set hit-limit-num <hit-limit-num>protocol-type symbol hit-limit-num and [normal|inherit] application type.

  • Page 13: Configuring Signature Entry

    However, each key must be a specific string or a series of sequential hexadecimal numbers. These characters must be consecutive. Configuring Signature Entry Configuring Signature Entry Step Command Function This enters DPI configuration ZXR10(config)#dpi mode. Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 14: Showing Configuration Of Signature Entry

    ZXR10 8900 Series User Manual (DPI Volume) Step Command Function ZXR10(config-dpi)#signature-entry <signature-e This enters signature entry ntry-id> configuration mode. ZXR10(config-dpi-signature-entry-2)#set content This sets content of the <string> signature entry. Showing Configuration of Signature Entry Command Function ZXR10(config)#show signature-entry <signature-entr This shows configuration of a y-id>...

  • Page 15: Configuring Policy

    <limit-rate> cbs <cbs-bytes> ebs <ebs-bytes> upstream of flow pool. limit-rate: It is rate limit, in kbps. cbs: It is committed burst size, in bytes. ebs: It is excess burst size, in bytes. Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 16: Configuring Parameter Downstream

    ZXR10 8900 Series User Manual (DPI Volume) Configuring Parameter Downstream Step Command Function This enters DPI configuration ZXR10(config)#dpi mode. ZXR10(config-dpi)#flow-pool <flow-pool-id> This enters flow pool configuration mode. This configures parameter ZXR10(config-dpi-flow-pool-2)#downstream -rate-limit <limit-rate> cbs <cbs-bytes> ebs downstream of flow pool.

  • Page 17: Configuring Sub Service

    ZXR10(config)#dpi mode. ZXR10(config-dpi)#subservice <subservice-id> To enter subservice configuration mode, execute the following commands: ZXR10(config-dpi-subservice-2)#add signature-sy This command adds signature mbol <signature-symbol-id-relation>[relation-name] symbol sequence for current subservice and meanwhile names this sequence as relation-name. Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 18: Adding Signature Symbol Application

    ZXR10 8900 Series User Manual (DPI Volume) Adding Signature Symbol Application Step Command Function This enters DPI configuration ZXR10(config)#dpi mode. ZXR10(config-dpi)#subservice <subservice-id> This enters subservice configuration mode. ZXR10(config-dpi-subservice-2)#add protocol This adds one signature <protocol-name> symbol application for current subservice. Binding Flow-Pool with Current...

  • Page 19: Setting Aging Time For Current Subservice

    The following part shows a subservice configuration example: ZXR10(config)#dpi ZXR10(config-dpi)#subservice 2 ZXR10(config-dpi-subservice-2)#add signature-symbol 1/2/3/4 XXXX ZXR10(config-dpi-subservice-2)# add protocol HTTP ZXR10(config-dpi-subservice-2)# bind flow-pool 2 ZXR10(config-dpi-subservice-2)# action permit ZXR10(config-dpi-subservice-2)# aging-time 10 ZXR10(config)# show subservice 2 Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 20 ZXR10 8900 Series User Manual (DPI Volume) This page is intentionally blank. Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 21: Configuring Service

    Configuring Service Adding One Subservice to Current Service Step Command Function This enters DPI configuration ZXR10(config)#dpi mode. This enters service ZXR10(config-dpi)#service<service-id> configuration mode. ZXR10(config-dpi-service-2)#add subservice This adds one subservice to <subservice-id> current service. Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 22: Importing Another Subservice Into One Subservice

    ZXR10 8900 Series User Manual (DPI Volume) Importing Another Subservice into One Subservice Step Command Function This enters DPI configuration ZXR10(config)#dpi mode. This enters service ZXR10(config-dpi)#service<service-id> configuration mode. ZXR10(config-dpi-service-2)#import subservice This imports another <subservice-id> im_subservice <im_subservice-id> subservice into one subservice.
  • Page 23 Chapter 6 Configuring Service ZXR10(config)#dpi ZXR10(config-dpi)#service 2 ZXR10(config-dpi-service-2)#add subservice 2 ZXR10(config-dpi-service-2)# bind flow-pool 12 ZXR10(config)# show service 2 Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 24 ZXR10 8900 Series User Manual (DPI Volume) This page is intentionally blank. Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 25: Configuring Dpi Template

    This enters DPI configuration ZXR10(config)#dpi mode. ZXR10(config-dpi)#dpi-template <template-id > This enters dpi-template configuration mode. ZXR10(config-dpi-template-2)#bind slot <slot-id> This redirects traffic in DPI-template to corresponding DPI card. Slot id is the slot number where DPI card locates. Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 26: Binding Service Policy

    ZXR10 8900 Series User Manual (DPI Volume) Binding Service Policy Step Command Function This enters DPI configuration ZXR10(config)#dpi mode. ZXR10(config-dpi)#dpi-template <template-id > This enters dpi-template configuration mode. ZXR10(config-dpi-template-2)#bind service This binds service policy in <service-id > current DPI-template. Source IP Binding Rules...

  • Page 27: Dpi-Template Configuration Example

    The following part shows a DPI-template configuration example: ZXR10(config)#dpi ZXR10(config-dpi)# dpi-template 2 ZXR10(config-dpi-template-2)# bind slot 4 ZXR10(config-dpi-template-2)# bind service 2 ZXR10(config-dpi-template-2)# bind sip-addr 1.1.1.1 255.255.255.0 service 10 ZXR10(config-dpi-template-2)# bind switchport 1/12 service 20 ZXR10(config)# show dpi-template 2 Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 28 ZXR10 8900 Series User Manual (DPI Volume) This page is intentionally blank. Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 29: Glossary

    DPI - Deep Packet Inspection FTP - File Transfer Protocol SLA - Service Level Agreement TCP - Transmission Control Protocol UDP - User Datagram Protocol VOD - Video On Demand VoIP - Voice over Internet Protocol Confidential and Proprietary Information of ZTE CORPORATION...
