- Page 1 ZTE SEC IPv4 instructions All Rights reserved, No Spreading abroad without Permission of ZTE...
- Page 2 All Rights reserved, No Spreading abroad without Permission of ZTE...
- Page 3 Table of Contents EQUIPMENTS FOR CERTIFICATION ...................... 4 TEST INSTRUCTION FOR 5900E ......................5 TEST INSTRUCTION FOR ZXR10 8900 ....................9 All Rights reserved, No Spreading abroad without Permission of ZTE...
-
Page 4: Equipments For Certification

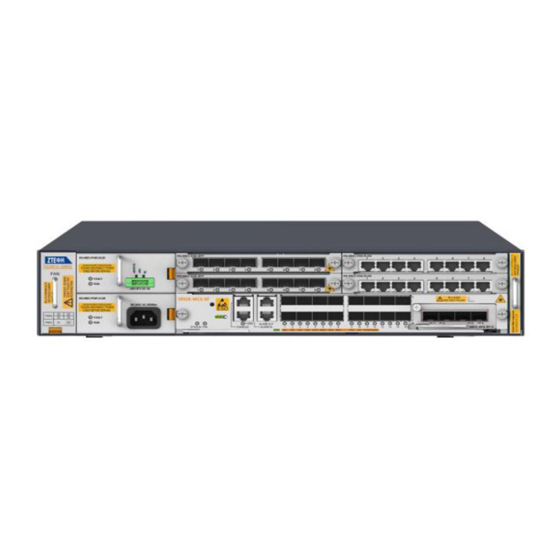

Equipments for Certification The certified equipments are ZTE two types of Switches: ZXR10 5900E and ZXR10 8900 series. ZXR10 5900E series MPLS Easy-Maintenance switch adopts high-speed ASIC forwarding chips. It supports complete family of Ethernet protocols, complete L3/MPLS protocols, efficient QOS priority mechanisms and flexible management mechanisms. -
Page 5: Test Instruction For 5900E
Step2：Enable dhcp-snooping on global ZXR10(config)#ip dhcp snooping enable Step3：Enable DHCP snooping on vlan and assign Uplink port as trusted port ZXR10(config)#ip dhcp snooping vlan 100 ZXR10(config)#ip dhcp snooping trust gei_1/1 All Rights reserved, No Spreading abroad without Permission of ZTE... - Page 6 MAC:0022.3245.0005 Discard Ip:10.1.1.5 MAC:0017.314c.0001 DHCP server IP:10.1.1.15 MAC:0056.3200.0002 _ Setup Step1 :Enable DHCP Snooping function same as case A Step2: Enable ARP inspection on vlan ZXR10(config)#vlan 100 ZXR10(config-vlan100)#ip arp inspection All Rights reserved, No Spreading abroad without Permission of ZTE...
-
Page 7: _ Topology
_ Setup Step1：Enable DHCP snooping function same as case A. Step2: Enable IP Souce guard on port ZXR10(config-gei_1/2)#ip dhcp snnoping ip-source-guard mac-ip-base Step3: Configure Static user binding table entry on vlan All Rights reserved, No Spreading abroad without Permission of ZTE... -
Page 8: The Zte Series Has Full Support Port-Based Advanced Ipv4/Ipv6/L2 Header
Step1: Configure port isolation session on global ZXR10(config)#vlan private-map session-id 1 solate gei_1/1, gei_1/3 G. ACLs The ZTE Series has full support port-based advanced ipv4/ipv6/L2 header ACLs The following example describes how to utilize on acl to block inbound special Source ip address;... -
Page 9: _ Topology
A.DHCP Snooping Configuration Procedure _ Topology DHCP Require DHCP server DHCP Ack Fake server _ Setup Step1: configure vlan ZXR10(config)#interface gei_1/1 ZXR10(config)#ipv4 protocol-protect mode dhcp enable ZXR10(config-gei_1/1)#switch access vlan 100 All Rights reserved, No Spreading abroad without Permission of ZTE... -
Page 10: _ Topology
_ Setup Step1 enable DHCP snooping function same as Case A Step2：enable option 82 on global ZXR10(config)# p dhcp snooping information option C. ARP source check Configuration Procedure _ Topology All Rights reserved, No Spreading abroad without Permission of ZTE... -
Page 11: _ Topology
ZXR10(config-vlan100)#ip arp inspection ZXR10(config)#interface gei_1/1 ZXR10(config-gei_1/1)#ip arp inspection trust ZXR10(config)#ip arp inspection validate dst-mac ZXR10(config)#ip arp inspection validate ip ZXR10(config)#ip arp inspection validate src-mac D. IP source check Configuration Procedure _ Topology All Rights reserved, No Spreading abroad without Permission of ZTE... -
Page 12: Gei_1/3 Expiry
Step2: Enable IP Souce guard on port ZXR10(config-gei_1/2)#ip dhcp snnoping ip-source-guard mac-ip-base Step3: Configure Static user binding table entry on vlan ZXR10(config)#ip dhcp snooping binding 001f.c674.15a8 vlan 10 10.10.40.100 gei_1/3 expiry 3600 All Rights reserved, No Spreading abroad without Permission of ZTE... -
Page 13: Uer1 No Traffic
Step1: Configure port isolation session on global ZXR10(config)#vlan private-map session-id 1 solate gei_1/1, gei_1/3 G. ACLs The ZTE Series has full support port-based advanced ipv4/ipv6/L2 header ACLs The following example describes how to utilize on acl to block inbound special Source ip address;... -
Page 14: All Rights Reserved, No Spreading Abroad Without Permission Of Zte
ZXR10(config)#acl standard number 10 ZXR10(config-std-acl)#rule 1 deny 192.168.1.100 0.0.0.0 Step2：enable ACL on port inbind ZXR10 (config-fei_1/2)#ip access-group 1 in All Rights reserved, No Spreading abroad without Permission of ZTE...
