ACME IM-250 SP User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

IM - 250 SP
User Guide
Please read these instructions carefully before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IM-250 SP and is the answer not in the manual?

Questions and answers

Related Manuals for ACME IM-250 SP

Summary of Contents for ACME IM-250 SP

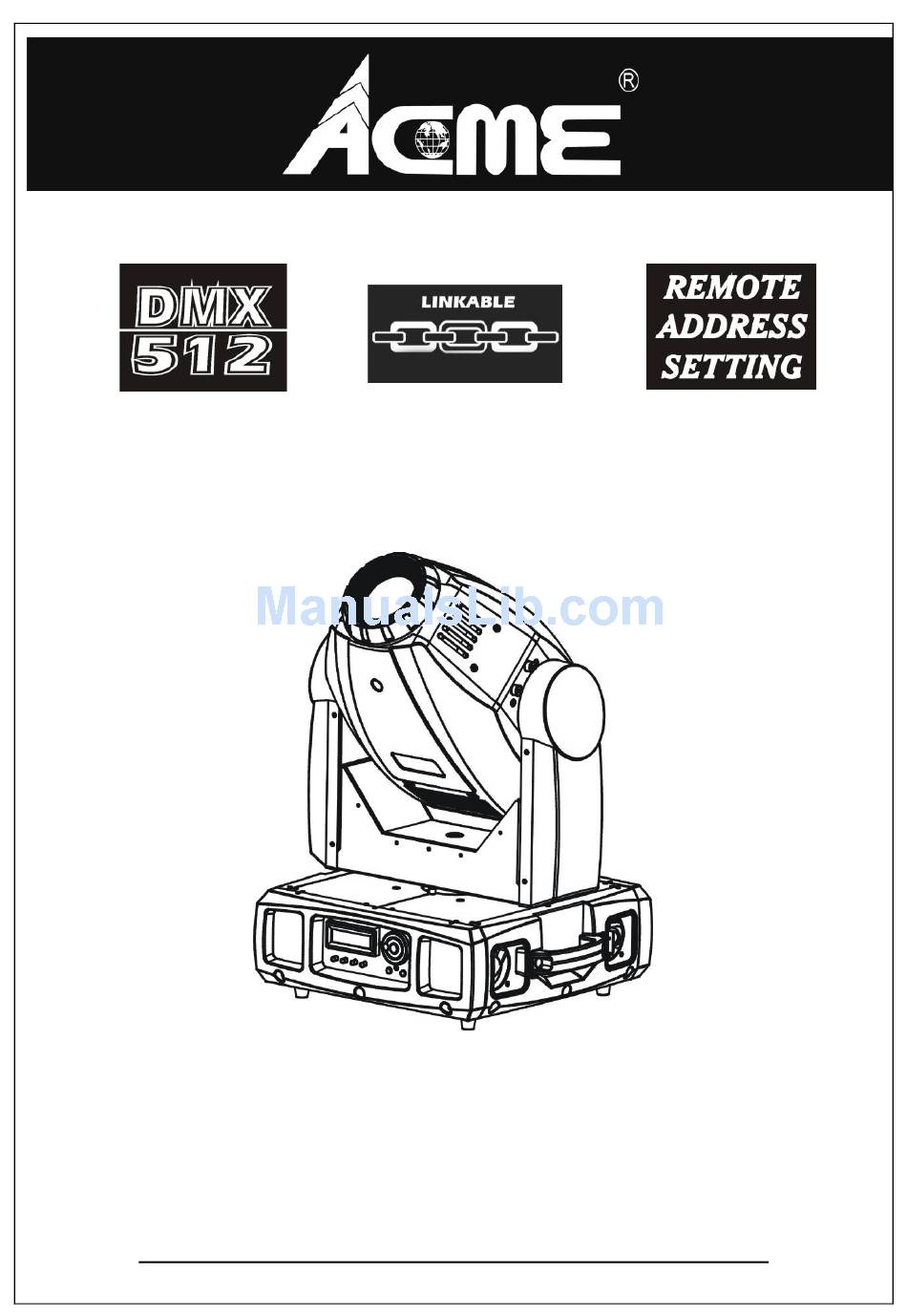

  • Page 1 IM - 250 SP User Guide Please read these instructions carefully before use...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instruction 2. Technical Specification 2.1 Description of the fixture 2.2 Inserting/Exchanging rotating gobos 3. Lamp 4. How To Set The Unit 4.1 Control Panel 4.2 Main Function 4.3 Home Position Adjustment 4.4 Easy controller 5. How To Control The Unit 5.1 DMX Controller 5.2 DMX 512 Configuration 5.3 DMX 512 Connection...

  • Page 3: Safety Instruction

    1. Safety Instruction Please read carefully the instruction, which includes important information about the installation, usage and maintenance. WARNING  Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. ...
  • Page 4 Warning  To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.  Never touch bulb with bare fingers, as it is very hot after using.  Hot lamp explosion hazard. Do not open the unit within five minutes after switching off. ...

  • Page 5: Technical Specification

    2. Technical Specification Power supply - 120V/230V~50/60Hz Lamp - HMQ 250/2G Optical system - High efficiency optical system - High quality optical lens and dichroic colors - Beam angle: 15° Shutter/Dimmer - Blackout, 0~100% smooth dimming and strobe speed variable(1~12 flashes per second).
  • Page 6 DMX Channels - Standard DMX512 signal addressing and can be controlled by any universal DMX controller or DMX Tester. 22 Channels: Channel 1 = Pan Channel 12 = Prism Channel 2 = Tilt Channel 13 = Prism Rotation Channel 3 = Pan/Tilt speed Channel 14 = Focus Channel 4 = Dimmer Channel 15 = Iris...

  • Page 7: Description Of The Fixture

    Luminous intensity: 2.1. Description of the fixture 1. Yoke 2. Front panel 3. Moving head 4. Handle 5. Base 2.2. Inserting/Exchanging rotating gobos DANGER! Install the gobos with the device switched off only. Unplug from mains before changing gobos! Open the cover by loosening the fastening screw at the sides of the cover. If you wish to use other forms and patterns as the standard-gobos, or if the gobos are to be exchanged, remove the fixation ring with an appropriate tool.

  • Page 8: Lamp

    CAUTION! Never unscrew the screws of the rotating gobo as the ball bearing will otherwise be opened! 3. Lamp In case of replacement of the lamp or maintenance, do not open the fixture within 15 minutes until the unit cools down after switching off. WARNING Because of its high internal pressure, there might be a risk that the Discharge lamp would explode during operation.

  • Page 9: How To Set The Unit

    4. How To Set The Unit 4.1. Control Panel MONITOR To show the various menus DMX input present MASTER Master Mode SLAVE Slave Mode SOUND Blinking Sound Mode...

  • Page 10: Main Function

    Button To go back to the previous functions ENTER To confirm the selected functions JOG WHEEL To select the given functions On/Off Turns On/Off the power Fuse To replace the fuse DMX input/output For DMX 512 operation, use 3/5-pin XLR plug cable to link the unit together Sensitivity To receives audio signal for sound activation.
  • Page 11 DMX 512 Address Setting Press the ENTER button and turn jog wheel up to when the DMX Address is shown on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to change the DMX 512 address. Once the address has been selected, press the ENTER button to setup or automatically return to the main functions without any change after 10 seconds.
  • Page 12 Channel Mode Press the ENTER button and turn jog wheel up to when the Channel Mode is shown on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to select the (16 Channel) or (22 Channel) mode. Once the mode has been selected, press the ENTER button to setup or automatically return to the main functions without any change after 10 seconds.
  • Page 13 to the previous functions without any change press the ESC button. Adjust Focus 2 Press the ENTER button and turn jog wheel up to when the Adjust Focus 2 is shown on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to change the focus 2 (0-255).
  • Page 14 without any change after 10 seconds. To go back to the previous functions without any change press the ESC button. Lamp Temperature Press the ENTER button and turn jog wheel up to when the Lamp Temperature shown on the monitor. Pressing ENTER button and the ambient temperature of lamp will show on the monitor.

  • Page 15: Home Position Adjustment

    Reset Press the ENTER button and turn jog wheel up to when the Reset is shown on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to select the (Yes) or (No) mode. select (Yes) option and all channels of the unit will return to their standard position.
  • Page 16 Pan offset Press the ENTER button for at least 12 seconds into offset mode, turn jog wheel up to when the Pan offset is shown on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to adjust the pan home position. Once the position has been selected, press the ENTER button to setup or automatically return to the offset functions without any change press the ESC button.
  • Page 17 display will blink. Use jog wheel to adjust the color 2 home position. Once the color has been selected, press the ENTER button to setup or automatically return to the offset functions without any change press the ESC button. To go back to the main functions without any change after 10 seconds Gobo 1 offset Press the ENTER button for at least 12 seconds into offset mode, turn jog wheel up to...

  • Page 18: Easy Controller

    change after 10 seconds R-Effect offset Press the ENTER button for at least 12 seconds into offset mode, turn jog wheel up to when the R-Effect offset is shown on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to adjust the R-Effect home position. Once the R-effect has been selected, press the ENTER button to setup or automatically return to the offset functions without any change press the ESC button.

  • Page 19: How To Control The Unit

    Stand by Blackout the unit Strobe X/Y moving show pattern Gobo/Color selection X/Y moving setting 1. Sync. strobe selection 1.Hold gobo 1.Pan position 2. Two-light strobe ( Show 1 ~ Show 4 ) selection 2.Tilt position Function 3. Sound strobe Please refer to 4.2.

  • Page 20: Dmx 512 Configuration

    5.2. DMX 512 Configuration...

  • Page 23: Dmx512 Connection

    5.3. DMX512 Connection The DMX 512 is widely used in intelligent lighting control, with a maximum of 512 channels. 1. If you use a controller with 5 pins DMX connector, you need to use a 5 to 3 pin adapter. 2.

  • Page 24: Troubleshooting

    6. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connect power and main fuse. 2.
  • Page 25 3. Unplug all the connect wires that upon belt. 4. Change a new belt (C), put the belt around the axis gear and motor gear. 5. Install the new belt and adjust the belt tension properly. Note: do not fix the belt too tight as it is easy to rupture.

  • Page 26: Maintenance And Cleaning

    7. Maintenance and Cleaning Maintenance: Ballast Ignitor connector A. As the picture above, if the cable or cable joints turned yellow or black, please replace the cable or cable joints immediately. B. Do maintain the fixtures every two months and make sure that all the screws and terminals have been locked to make sure the normal performance of the fixtures.
  • Page 27 E C Declaration of Conformity 1 8 B We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55014-2: 1997 A1:2001, EN61000-4-2: 1995; EN61000-4-3:2002; EN61000-4-4: 1995;...
