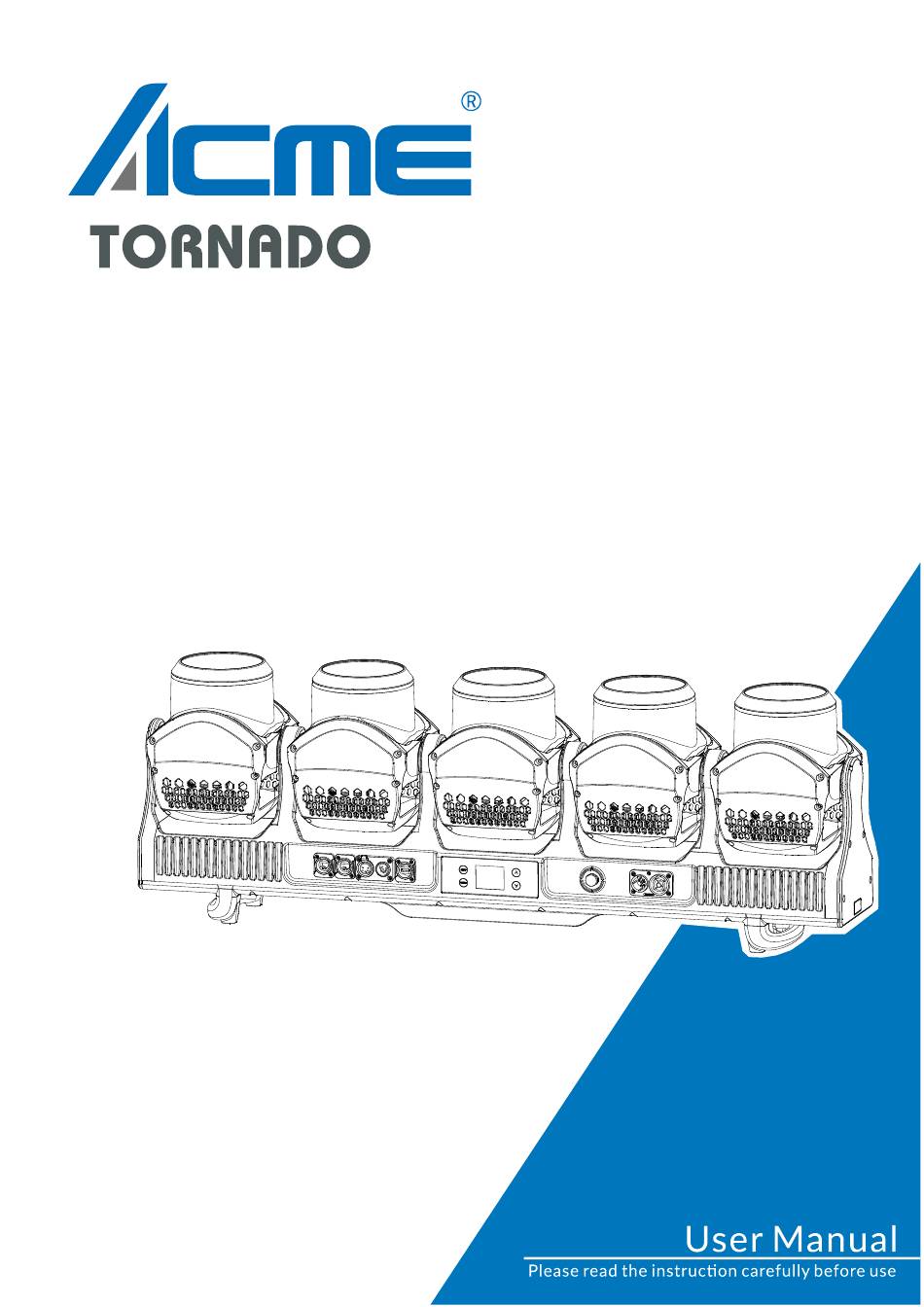

ACME Tornado User Manual

Hide thumbs Also See for Tornado:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tornado and is the answer not in the manual?

Questions and answers

Related Manuals for ACME Tornado

Summary of Contents for ACME Tornado

  • Page 2: Table Of Contents

    REV D 05/27/2025 CONTENTS 01/ Safety Information ....................2 02/ Technical Specifications ..................8 03/ Overview ........................ 10 3.1 Battery Power ....................11 04/ Connecting Power and Data ................13 4.1 Connecting Power ..................13 4.2 Connecting Data.................... 14 05/ Fixture Installation ....................15 5.1 Hanging the Fixture ..................

  • Page 3: 01/ Safety Information

    REV D 05/27/2025 01/ Safety Information Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 REV D 05/27/2025 Avoid any flammable liquids, water or metal from entering the unit. Once it happens, cut  off the mains power immediately. DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock. ...
  • Page 5 REV D 05/27/2025 External sources of light beams from direct sunlight or any other strong light source,  which penetrate the front lens of lighting fixtures, can cause severe internal damage. DO NOT expose the fixture front lens to light beams from direct sunlight or any other strong light source from any angle while unpacking, installation, use, and extended idle times outdoors.
  • Page 6 REV D 05/27/2025 01/ Informations de sécurité Veuillez lire attentivement les instructions, car elles contiennent des informations importantes concernant l'installation, l'utilisation et la maintenance. AVERTISSEMENT Veuillez conserver ce manuel d'utilisation pour consultation future. Si vous vendez l'appareil à un autre utilisateur, assurez-vous qu'il reçoive également ce manuel d'instructions. Important: Les dommages causés par le non-respect de ce manuel d'utilisation ne sont pas couverts par la garantie.
  • Page 7 REV D 05/27/2025 Vérifier que le cordon d'alimentation n'est ni écrasé ni endommagé; le remplacer  immédiatement s'il est endommagé. La température de surface de l'appareil peut atteindre jusqu'à 75℃. NE PAS toucher le  boî tier à mains nues pendant son fonctionnement. Évitez que des liquides inflammables, de l'eau ou des objets métalliques ne pénètrent ...
  • Page 8 REV D 05/27/2025 L'appareil NE DOIT PAS être allumé immédiatement s'il a été exposé à de fortes  variations de température (par exemple après un transport), car de la condensation pourrait se former à l'intérieur. Veuillez laisser l'appareil éteint jusqu'à ce qu'il ait atteint la température ambiante.

  • Page 9: 02/ Technical Specifications

    REV D 05/27/2025 02/ Technical Specifications AC Power 100-240Vac; 50/60Hz Max. Power 935W Consumption 5x120W RGBL LED Light Source 120x0.5W RGB LED Beam Angle 3°-30° Field Angle 4°-35° 59° Tilt 221° Movement 16 bit movement resolution Automatic pan/tilt repositioning DMX Channels 41/71/75/85/170 DMX512 Control and...
  • Page 10 REV D 05/27/2025 Dimensions 1000x192x350mm 39.4"x7.6"x13.8" Weight 30 kg 66.1 lbs Photometric Diagram (Beam Angle): Photometric Diagram (Field Angle): - 9 -...

  • Page 11: 03/ Overview

    REV D 05/27/2025 03/ Overview 1. Display To show the various menus and the selected function MENU To enter into move backward or leave the menu  UP To go backward to move up in the menu 2. Buttons  DOWN To go forward to move down in the menu ENTER To perform the desired functions...

  • Page 12: Battery Power

    REV D 05/27/2025 3.1 Battery Power This product contains a rechargeable battery. Battery type: 18650 Lithium-ion battery (3.7V, 2200mAh, 8.14Wh), compliant with the new EU battery regulation EU2023/1542. Do not expose the fixture or battery to excessive temperatures. Be aware of the risk of terminals of the battery-operated fixture or battery being short-circuited by metal objects.
  • Page 13 REV D 05/27/2025 Battery Replacement: Warning! Disconnect the fixture from AC power before replacing its battery. Replace the battery with one of the same type only. 1. Disconnect the fixture from AC mains power and allow to cool. 2. Remove six screws in the arm cover of the fixture and remove the arm cover. 3.

  • Page 14: 04/ Connecting Power And Data

    REV D 05/27/2025 04/ Connecting Power and Data 4.1 Connecting Power This fixture can operate on any 100-240Vac; 50/60Hz AC mains power supply. The maximum power consumption is 935W. The fixture must be grounded/earthed and able to be isolated from AC power. The AC power supply must incorporate a fuse or circuit breaker for fault protection.

  • Page 15: Connecting Data

    REV D 05/27/2025 4.2 Connecting Data The fixture is equipped with 5-pin (or 3-pin) XLR sockets for DMX input and output. Use a high-quality DMX cable designed for RS-485 and 5-pin (or 3-pin) XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another. For outdoor installations, use only IP-rated XLR connectors suitable for outdoor use.

  • Page 16: 05/ Fixture Installation

    REV D 05/27/2025 05/ Fixture Installation The fixture is IP66-rated and designed for both indoor and outdoor events. This means that it is protected from:  Dust, to the degree that dust cannot enter the device in sufficient quantities as to interfere with its operation.
  • Page 17 REV D 05/27/2025 - 16 -...

  • Page 18: Hanging The Fixture

    REV D 05/27/2025 5.1 Hanging the Fixture - 17 -...

  • Page 19: Connecting And Aligning Multiple Fixtures

    REV D 05/27/2025 5.2 Connecting and Aligning Multiple Fixtures A. Pull the locking pin and turn it over 90° so it stays unlocked. B. Push the button: automatically the slide comes out completely. C. Place both fixtures against each other in line so that the slide fits into the other fixture. D.

  • Page 20: 06/ Operation

    REV D 05/27/2025 06/ Operation 6.1 Control Menu  To access the control menus, press the [MENU] button.  Navigate the menu structure, using the [ENTER], [ UP] and [ DOWN] buttons.  To select a menu option or to confirm a selection, press the [ENTER] button. ...
  • Page 21 REV D 05/27/2025 MAIN MENU SUBMENU CHOICES/VALUES 0-127 (Default=0) Art-Net Settings Sub-Net 0-15 (Default=0) Universe 0-15 (Default=0) sACN Universe 1-32000 (Default=1) sACN Settings sACN Priority 0-200 (Default=100) Network to DMX Pan Invert Tilt Invert P/T Feedback Linear Square Law Dimmer Curve Inv SQ Law S Curve Fast...
  • Page 22 REV D 05/27/2025 MAIN MENU SUBMENU CHOICES/VALUES 5000Hz 6000Hz 10KHz 15KHz 20KHz 25KHz Standard Fan Mode Quiet Head Invert CCT Calibration High Dimmer Start Mode Invert Pixel Display Invert Backlight Intensity 1-10 (Default=10) Display Settings °C Temperature Unit °F English Language Chinese Single...
  • Page 23 REV D 05/27/2025 MAIN MENU SUBMENU CHOICES/VALUES Strobe LED Color 0-255 LED R1 0-255 Ring R 0-255 LED G1 0-255 Ring G 0-255 LED B1 0-255 Ring B 0-255 LED L1 0-255 Ring Macro 0-255 …… …… LED R5 0-255 LED G5 0-255 LED B5...
  • Page 24 REV D 05/27/2025 MAIN MENU SUBMENU CHOICES/VALUES Pan/Tilt Reset Reset Function Effect Reset All Reset USB Upgrade Send Upgrade Special Function Firmware Restore Factory Settings - 23 -...

  • Page 25: Channel Mode

    REV D 05/27/2025 DMX Settings Enter the control menu and select DMX Settings, press ENTER. Use the UP/DOWN button to select DMX Address, DMX Channel Mode, No DMX Status, View DMX Value, Connect Option, Network, Art-Net Settings, sACN Settings or Network to DMX. DMX Address Select DMX Address, press ENTER.
  • Page 26 REV D 05/27/2025 View DMX Value Select View DMX Value, press ENTER. Use UP/DOWN button to select the desired DMX channel, for which the value is to be displayed. To exit the menu, press MENU, or wait 30 seconds. Connect Option Select Connect Option, press ENTER.
  • Page 27 REV D 05/27/2025 Fixture Settings Enter the control menu and select Fixture Settings, press ENTER. Use the UP/DOWN button to select Pan Invert, Tilt Invert, P/T Feedback, Dimmer Curve, Dimmer Speed, White Balance, LED Refresh Rate, Fan Mode, Head Invert, CCT Calibration, Dimmer Start Mode or Invert Pixel. Pan Invert Select Pan Invert, press ENTER.
  • Page 28 REV D 05/27/2025 Dimmer Speed Select Dimmer Speed, press ENTER. Use UP/DOWN button to select Fast or Smooth, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. White Balance Select White Balance, press ENTER. Use UP/DOWN button to select LED R, LED G, LED B, LED R1, LED G1, LED B1……...
  • Page 29 REV D 05/27/2025 CCT Calibration Select CCT Calibration, press ENTER. Use UP/DOWN button to select Off or On, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. Dimmer Start Mode Select Dimmer Start Mode, press ENTER. Use UP/DOWN button to select High (high dimming start) or Low (low dimming start), confirm your selection with ENTER.
  • Page 30 REV D 05/27/2025 Temperature Unit Select Temperature Unit, press ENTER. Use UP/DOWN button to select °C or °F, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. Language Select Language, press ENTER. Use UP/DOWN button to select English or Chinese, confirm your selection with ENTER.
  • Page 31 REV D 05/27/2025 Fixture Information Enter the control menu and select Fixture Information, press ENTER. Use the UP/DOWN button to select Fixture Use Hour, LED Use Hour, Humidity, Temperature, Fan State, Firmware Version, RDM UID or Error Logs. Fixture Use Hour Select Fixture Use Hour, press ENTER.
  • Page 32 REV D 05/27/2025 Firmware Version Select Firmware Version, press ENTER. The firmware version is displayed. To exit the menu, press MENU, or wait 30 seconds. RDM UID Select RDM UID, press ENTER. The RDM UID is displayed. To exit the menu, press MENU, or wait 30 seconds. Error Logs Select Error Logs, press ENTER.
  • Page 33 REV D 05/27/2025 Effect Reset Select Effect Reset, press ENTER. Use UP/DOWN button to select No or Yes (the device will run built-in program to reset effect to their home positions), confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. All Reset Select All Reset, press ENTER.
  • Page 34 REV D 05/27/2025 Send Upgrade Select Send Upgrade, press ENTER. If you wish to send upgrade files from this fixture to next fixtures to upgrade their firmware, select Yes. Once Yes is selected, the display of this fixture will show “Sending Packet, Please Wait...” while the display of next fixtures will show “Upgrading, Please Wait...”.

  • Page 35: Updating Software

    REV D 05/27/2025 6.2 Updating Software Only qualified technicians should perform this function! Note all menu settings before updating software! Please note, up to 32 fixtures can be connected together and updated at the same time. Note: Before using the USB flash drive to update the software, please ensure that the USB flash drive is formatted with the FAT32 file system.
  • Page 36 REV D 05/27/2025 Updating Software: 1. Download the software update files from the ACME website. 2. Copy the software files to a compatible USB flash drive. Note: To avoid the risk of uploading the wrong file to the fixture, make sure that there are no other files on your flash drive.
  • Page 37 REV D 05/27/2025 RDM functions: Certain menus of the device and functions can be called up via the RDM protocol. The parameter IDs are implemented as follows for different commands: Command Command Command Parameter ID ‘Discovery’ ‘Set’ ‘Get’ DISC_UNIQUE_BRANCH √ DISC_MUTE √...

  • Page 38: Home Position Adjustment

    REV D 05/27/2025 6.3 Home Position Adjustment  To access the control menus, press the [MENU] button.  To access the offset menus, long-press the [ENTER] button.  Navigate the offset menus, using the [ENTER], [ UP] and [ DOWN] buttons. ...
  • Page 39 REV D 05/27/2025 Frequency Select Frequency, press ENTER. Use UP/DOWN button to select a value, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. Frequency VALUES 900Hz 772~1027 1000Hz 872~1127 1100Hz 972~1227 1200Hz 1072~1327 1300Hz 1172~1427...
  • Page 40 REV D 05/27/2025 Tilt 1 Select Tilt 1, press ENTER. Use UP/DOWN button to select a value between -128 and 127, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. …… Tilt 5 Select Tilt 5, press ENTER.
  • Page 41 REV D 05/27/2025 LED G Select LED G, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. LED B Select LED B, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER.
  • Page 42 REV D 05/27/2025 LED L1 Select LED L1, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. …… LED R5 Select LED R5, press ENTER.

  • Page 43: 07/ Configuring The Device For Dmx Control

    REV D 05/27/2025 07/ Configuring the Device for DMX Control 7.1 Address Setting All fixtures should be given a DMX starting address when operating with a DMX controller, in order to ensure that the correct fixture responds to the correct control signal. Incorrect settings will result in unpredictable responses from the lighting controller.

  • Page 44: Dmx Protocol

    REV D 05/27/2025 7.2 DMX Protocol 41 ch (Mode 1): CHANNEL VALUE FUNCTION PAN 1 000-255 0°59° 000-255 PAN 1 FINE TILT 1 000-255 0°221° 000-255 TILT 1 FINE ZOOM 1 000-255 WideNarrow PAN 2 000-255 0°59° 000-255 PAN 2 FINE TILT 2 000-255 0°221°...

  • Page 45: Led Green

    REV D 05/27/2025 TILT 5 000-255 0°221° 000-255 TILT 5 FINE ZOOM 5 000-255 WideNarrow LED RED 000-255 0%100% LED GREEN 000-255 0%100% LED BLUE 000-255 0%100% LED LIME 000-255 0%100% LED CCT Null 001-004 8000K 005-009 7900K 010-013 7800K 014-018 7700K 019-022...
  • Page 46 REV D 05/27/2025 140-144 4900K 145-148 4800K 149-153 4700K 154-157 4600K 158-162 4500K 163-166 4400K 167-171 4300K 172-175 4200K 176-180 4100K 181-184 4000K 185-189 3900K 190-193 3800K 194-198 3700K 199-202 3600K 203-207 3500K 208-211 3400K 212-216 3300K 217-220 3200K 221-225 3100K 226-229 3000K...
  • Page 47 REV D 05/27/2025 150-156 LEE 139 – Primary Green 157-163 LEE 089 – Moss Green 164-170 LEE 122 – Fern Green 171-177 LEE 738 – JAS Green 178-184 LEE 088 – Lime Green 185-191 LEE 100 – Spring Yellow 192-198 LEE 104 –...

  • Page 48: Pan/Tilt Speed

    REV D 05/27/2025 190-231 Slow Open Fast Close from Slow to Fast 232-239 Open 240-247 Random Strobe from Slow to Fast 248-255 Open RING STROBE 000-007 Close 008-015 Open 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Fast Open Slow Close from Slow to Fast 182-189 Open 190-231...
  • Page 49 REV D 05/27/2025 140-149 Pan/Tilt Reset 150-159 Effect Reset 160-169 Head Invert: Yes 170-179 Head Invert: No 180-189 CCT Calibration: On 190-199 CCT Calibration: Off 200-209 All Reset 210-219 Dimmer Speed: Fast 220-229 Dimmer Speed: Smooth Dimming Start Mode: High Dimming Start Mode: Low 232-233 Invert Pixel Order: Yes...
  • Page 50 REV D 05/27/2025 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Fast Open Slow Close from Slow to Fast 182-189 Open 190-231 Slow Open Fast Close from Slow to Fast 232-239 Open 240-247 Random Strobe from Slow to Fast 248-255 Open ZOOM 1...
  • Page 51 REV D 05/27/2025 LED 2 LIME 000-255 0%100% LED 2 DIMMER 0%100% 000-255 000-255 LED 2 DIMMER FINE LED 2 STROBE 000-007 Close 008-015 Open 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Fast Open Slow Close from Slow to Fast 182-189 Open 190-231...
  • Page 52 REV D 05/27/2025 000-255 0°221° 000-255 TILT 3 FINE LED 3 RED 000-255 0%100% LED 3 GREEN 000-255 0%100% LED 3 BLUE 000-255 0%100% LED 3 LIME 0%100% 000-255 LED 3 DIMMER 000-255 0%100% 000-255 LED 3 DIMMER FINE LED 3 STROBE 000-007 Close 008-015...
  • Page 53 REV D 05/27/2025 176-191 Macro Effect 11, Fast to Slow 192-207 Macro Effect 12, Fast to Slow 208-223 Macro Effect 13, Fast to Slow 224-239 Macro Effect 14, Fast to Slow 240-255 Macro Effect 15, Fast to Slow PAN 4 000-255 0°59°...
  • Page 54 REV D 05/27/2025 032-047 Macro Effect 2, Fast to Slow 048-063 Macro Effect 3, Fast to Slow 064-079 Macro Effect 4, Fast to Slow 080-095 Macro Effect 5, Fast to Slow 096-111 Macro Effect 6, Fast to Slow 112-127 Macro Effect 7, Fast to Slow 128-143 Macro Effect 8, Fast to Slow 144-159...
  • Page 55 REV D 05/27/2025 RING 5 RED 000-255 0%100% RING 5 GREEN 0%100% 000-255 RING 5 BLUE 000-255 0%100% RING 5 MACRO EFFECT & SPEED 000-015 Null 016-031 Macro Effect 1, Fast to Slow 032-047 Macro Effect 2, Fast to Slow 048-063 Macro Effect 3, Fast to Slow 064-079...
  • Page 56 REV D 05/27/2025 240-247 Random Strobe from Slow to Fast 248-255 Open PAN/TILT SPEED 000-255 Fast to Slow FUNCTION (To activate following functions, stop in DMX value for at least 3 seconds.) 000-029 Null 030-039 Dimmer Curve: Linear 040-049 Dimmer Curve: Square Law 050-059 Dimmer Curve: Inv SQ Law 060-069...
  • Page 57 REV D 05/27/2025 236-237 Pan Invert: Yes 238-239 Pan Invert: No 240-241 Tilt Invert: Yes 242-243 Tilt Invert: No 244-255 Null 170 ch (Mode 5): CHANNEL VALUE FUNCTION PAN 1 0°59° 000-255 000-255 PAN 1 FINE TILT 1 000-255 0°221° 000-255 TILT 1 FINE LED 1 RED...
  • Page 58 REV D 05/27/2025 RING 1 BLOCK 4 RED 000-255 0%100% RING 1 BLOCK 4 GREEN 0%100% 000-255 RING 1 BLOCK 4 BLUE 000-255 0%100% RING 1 BLOCK 5 RED 000-255 0%100% RING 1 BLOCK 5 GREEN 000-255 0%100% RING 1 BLOCK 5 BLUE 000-255 0%100% RING 1 BLOCK 6 RED...
  • Page 59 REV D 05/27/2025 000-255 0%100% ZOOM 2 000-255 WideNarrow RING 2 BLOCK 1 RED 000-255 0%100% RING 2 BLOCK 1 GREEN 000-255 0%100% RING 2 BLOCK 1 BLUE 000-255 0%100% RING 2 BLOCK 2 RED 000-255 0%100% RING 2 BLOCK 2 GREEN 000-255 0%100% RING 2 BLOCK 2 BLUE...
  • Page 60 REV D 05/27/2025 RING 2 BLOCK 7 BLUE 000-255 0%100% RING 2 BLOCK 8 RED 0%100% 000-255 RING 2 BLOCK 8 GREEN 000-255 0%100% RING 2 BLOCK 8 BLUE 000-255 0%100% PAN 3 000-255 0°59° 000-255 PAN 3 FINE TILT 3 000-255 0°221°...
  • Page 61 REV D 05/27/2025 000-255 0%100% RING 3 BLOCK 4 GREEN 000-255 0%100% RING 3 BLOCK 4 BLUE 000-255 0%100% RING 3 BLOCK 5 RED 000-255 0%100% RING 3 BLOCK 5 GREEN 000-255 0%100% RING 3 BLOCK 5 BLUE 000-255 0%100% RING 3 BLOCK 6 RED 000-255 0%100%...
  • Page 62 REV D 05/27/2025 ZOOM 4 000-255 WideNarrow RING 4 BLOCK 1 RED 0%100% 000-255 RING 4 BLOCK 1 GREEN 000-255 0%100% RING 4 BLOCK 1 BLUE 000-255 0%100% RING 4 BLOCK 2 RED 000-255 0%100% RING 4 BLOCK 2 GREEN 000-255 0%100% RING 4 BLOCK 2 BLUE...
  • Page 63 REV D 05/27/2025 RING 4 BLOCK 8 RED 000-255 0%100% RING 4 BLOCK 8 GREEN 0%100% 000-255 RING 4 BLOCK 8 BLUE 000-255 0%100% PAN 5 000-255 0°59° 000-255 PAN 5 FINE TILT 5 000-255 0°221° 000-255 TILT 5 FINE LED 5 RED 0%100% 000-255...

  • Page 64: Led Dimmer

    REV D 05/27/2025 000-255 0%100% RING 5 BLOCK 4 BLUE 000-255 0%100% RING 5 BLOCK 5 RED 000-255 0%100% RING 5 BLOCK 5 GREEN 000-255 0%100% RING 5 BLOCK 5 BLUE 000-255 0%100% RING 5 BLOCK 6 RED 000-255 0%100% RING 5 BLOCK 6 GREEN 000-255 0%100%...
  • Page 65 REV D 05/27/2025 008-015 Open 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Fast Open Slow Close from Slow to Fast 182-189 Open 190-231 Slow Open Fast Close from Slow to Fast 232-239 Open 240-247 Random Strobe from Slow to Fast 248-255 Open FUNCTION...

  • Page 66: 08/ Error Information

    REV D 05/27/2025 220-229 Dimmer Speed: Smooth Dimming Start Mode: High Dimming Start Mode: Low 232-233 Invert Pixel Order: Yes 234-235 Invert Pixel Order: No 236-237 Pan Invert: Yes 238-239 Pan Invert: No 240-241 Tilt Invert: Yes 242-243 Tilt Invert: No 244-255 Null 08/ Error Information...
  • Page 67 REV D 05/27/2025 Network Error Check whether the net model is installed in place. Check whether the net model is damaged. Check whether the network is normal. Pan 1/2/3/4/5 Reset Error Check whether the position of the pan where the magnet is installed falls off or is damaged.
  • Page 68 REV D 05/27/2025 Tilt 1/2/3/4/5 Reset Error Check whether the position of the tilt where the magnet is installed falls off or is damaged. Check whether there are obstacles in the tilt operating range. Check whether the Hall element on the tilt is damaged. Check whether the lead connecting the Hall element on the tilt and the PCB board is in poor contact or disconnected.
  • Page 69 REV D 05/27/2025 Zoom 1/2/3/4/5 Reset Error Check whether the position of the zoom where the magnet is installed falls off or is damaged. Check whether there are obstacles in the zoom operating range. Check whether the Hall element on the zoom is damaged. Check whether the lead connecting the Hall element on the zoom and the PCB board is in poor contact or disconnected.
  • Page 70 REV D 05/27/2025 Position of cooling fans: Cooling Fans Part Number Position Base Fan 1 3014001368 DC 24V 3.8W Base - A Base Fan 2 3014001293 DC 24V 4.8W Head Fan 1 Head - D Head Fan 2 Head - E Head Fan 3 3014003023 DC 24V...

  • Page 71: 09/ Troubleshooting

    REV D 05/27/2025 09/ Troubleshooting Problem Potential cause(s) Remedies Confirm that the power is switched No power to the fixture. Fixture does not respond on and cables are plugged in. or appears to be off. No output from PSU. Replace the PSU. Fixture suddenly turned Check the power supply, switches Power was turned off.
  • Page 72 REV D 05/27/2025 Condensation Removal Procedures: 1. Disconnect the fixture from power and allow it to cool. 2. Remove the six retaining screws (arrowed) in each head from one of the head covers and then remove the head covers from the fixture, keeping the screws for re-use. 3.
  • Page 73 REV D 05/27/2025 Condensation Removal Procedures (replacing the moisture control tablets): 1. Disconnect the fixture from power and allow it to cool. 2. Remove twenty screws on the bottom of the fixture and remove the bottom cover. 3. There is a moisture control tablet on each end of the fixture’s base. Remove four screws from the brackets that prevent the moisture control tablets from falling out, then remove the brackets.
  • Page 74 REV D 05/27/2025 5. Turn the fixture over and stand it on a flat surface. 6. Remove four screws that hold the lens cap in place and remove the lens cap. 7. Remove the screw from the bracket that prevents the moisture control tablets from falling out, then remove the bracket.
  • Page 75 REV D 05/27/2025 9. Remove the moisture control tablets on each head in turn, as described above. 10. Reapply power to the fixture. Run the fixture at full intensity for at least one hour with the DMX value of channels ‘Pan’ and 'Tilt' set to '128' (fixture front lens facing upwards) to reduce the moisture inside of the fixture.

  • Page 76: 10/ Fixture Cleaning

    REV D 05/27/2025 10/ Fixture Cleaning Regular cleaning is very important for fixture life and performance. Buildup of dust, dirt, smoke particles, fog fluid residues, etc. degrades the fixture’s light output and cooling ability. Cleaning schedules for lighting fixtures vary greatly depending on the operating environment. It is therefore impossible to specify precise cleaning intervals for the fixture.

  • Page 77: 11/ Approvals And Certifications

    REV D 05/27/2025 11/ Approvals and Certifications This product has been tested and found to comply with the following standards: - 2014/30/EU - Electromagnetic Compatibility (EMC) - 2014/35/EU - Low Voltage Directive (LVD) - cETLus Approved (Control #5000057) - UK SI 2016 No. 1091: Electromagnetic Compatibility Regulations 2016 - UK SI 2016 No.
