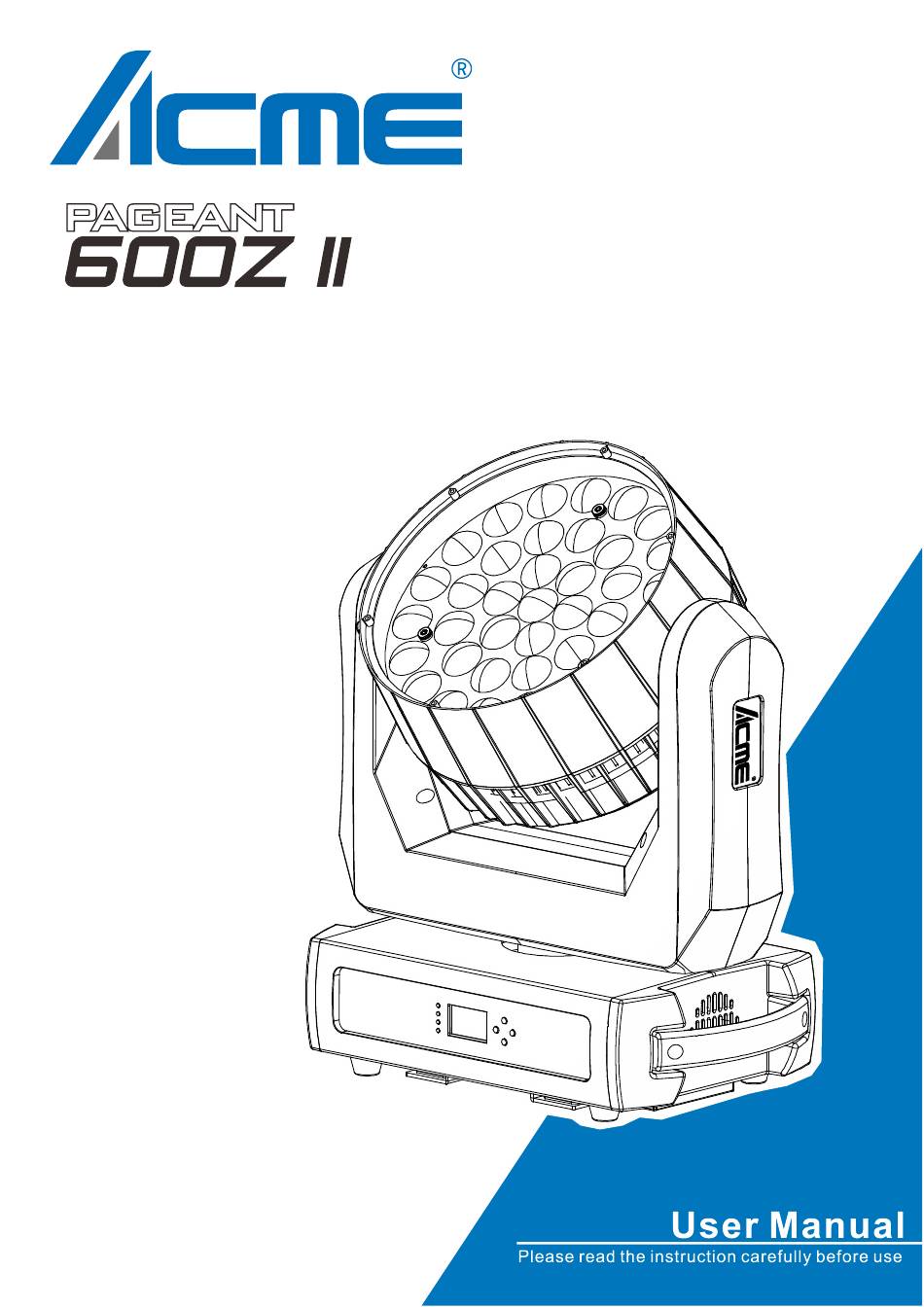

ACME PAGEANT 600Z II User Manual

Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAGEANT 600Z II and is the answer not in the manual?

Questions and answers

Related Manuals for ACME PAGEANT 600Z II

Summary of Contents for ACME PAGEANT 600Z II

  • Page 2: Address Setting

    4.2 Address Setting If you use a universal DMX controller to control the units, you have to set DMX address from 1 to 512 so that the units can receive DMX signal. Press the MENU button to enter menu mode, select DMX Functions, press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, press the ENTER button to confirm, the present address will blink on the display, use the UP/DOWN button to adjust the address from 001 to 512, press the ENTER button to store.

  • Page 3: Pan/Tilt Speed

    000-255 TILT FINE PAN/TILT SPEED 000-255 fast slow SPECIAL FUNCTIONS 000-009 No function 010-014 Reset 015-255 No function DIMMER 000-255 0% 100% SHUTTER 000-019 Blackout 020-024 Open 025-064 Strobe 1: fast to slow 065-069 Open 070-084 Strobe 2: opening pulse, fast to slow 085-089 Open 090-104...
  • Page 4 025-029 LEE 328 – Follies Pink 030-034 LEE 345 – Fuchsia Pink 035-039 LEE 194 – Surprise Pink 040-044 LEE 181 – Congo Blue 045-049 LEE 071 – Tokyo Blue 050-054 LEE 120 – Deep Blue 055-059 LEE 079 – Just Blue 060-064 LEE 132 –...
  • Page 5 26 Channels Mode: CHANNEL VALUE FUNCTION 000-255 0° 540° 000-255 PAN FINE TILT 000-255 0° 270° 000-255 TILT FINE PAN/TILT SPEED 000-255 fast slow ZOOM 000-255 60° 10° SPECIAL FUNCTIONS 000-009 No function 010-014 Reset 015-255 No function DIMMER 000-255 0% 100% SHUTTER 000-019...
  • Page 6 000-255 RING 1 RED (0% 100%) 000-255 RING 1 GREEN (0% 100%) 000-255 RING 1 BLUE (0% 100%) 000-255 RING 1 WHITE (0% 100%) RING 1 COLOR PRESET 000-009 Open 010-019 Color1 020-024 Color2 025-032 Color3 033-039 Color4 040-047 Color5 048-054 Color6 055-061...
  • Page 7 000-255 RING 2 BLUE (0% 100%) 000-255 RING 2 WHITE (0% 100%) RING 2 COLOR PRESET 000-255 (The same as CH14 RING 1 COLOR PRESET) 000-255 RING 3 RED (0% 100%) 000-255 RING 3 GREEN (0% 100%) 000-255 RING 3 BLUE (0% 100%) 000-255 RING 3 WHITE (0% 100%) RING 3 COLOR PRESET...
  • Page 8 15 Channels Mode: CHANNEL VALUE FUNCTION 000-255 0° 540° 000-255 PAN FINE TILT 000-255 0° 270° 000-255 TILT FINE PAN/TILT SPEED 000-255 fast slow SPECIAL FUNCTIONS 000-009 No function 010-014 Reset 015-255 No function DIMMER 000-255 0% 100% SHUTTER 000-019 Blackout 020-024 Open...
  • Page 9 000-255 BLUE (0% 100%) 000-255 WHITE (0% 100%) Color 000-009 Open 010-017 Color1 018-024 Color2 025-032 Color3 033-039 Color4 040-047 Color5 048-054 Color6 055-061 Color7 062-069 Color8 070-076 Color9 077-084 Color10 085-091 Color11 092-106 Color12 107-113 Color13 114-121 Color14 122-128 Color15 129-136 Color16...

  • Page 10: Troubleshooting

    080-095 Effect4 096-111 Effect5 112-127 Effect6 128-143 Effect7 144-159 Effect8 160-175 Effect9 176-191 Effect10 192-207 Effect11 208-223 Effect12 224-239 Effect13 240-255 Effect14 5. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A.
