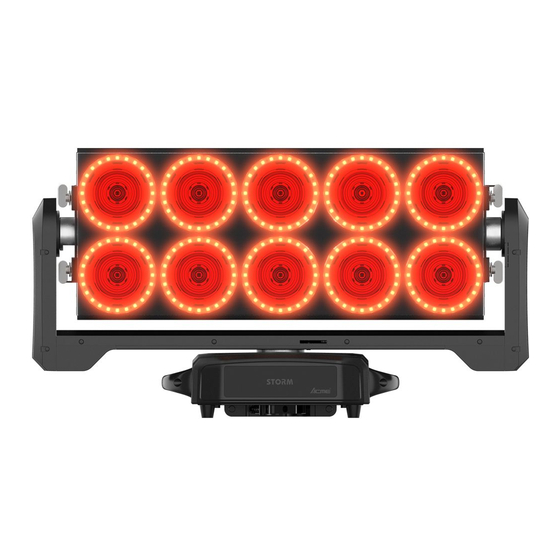

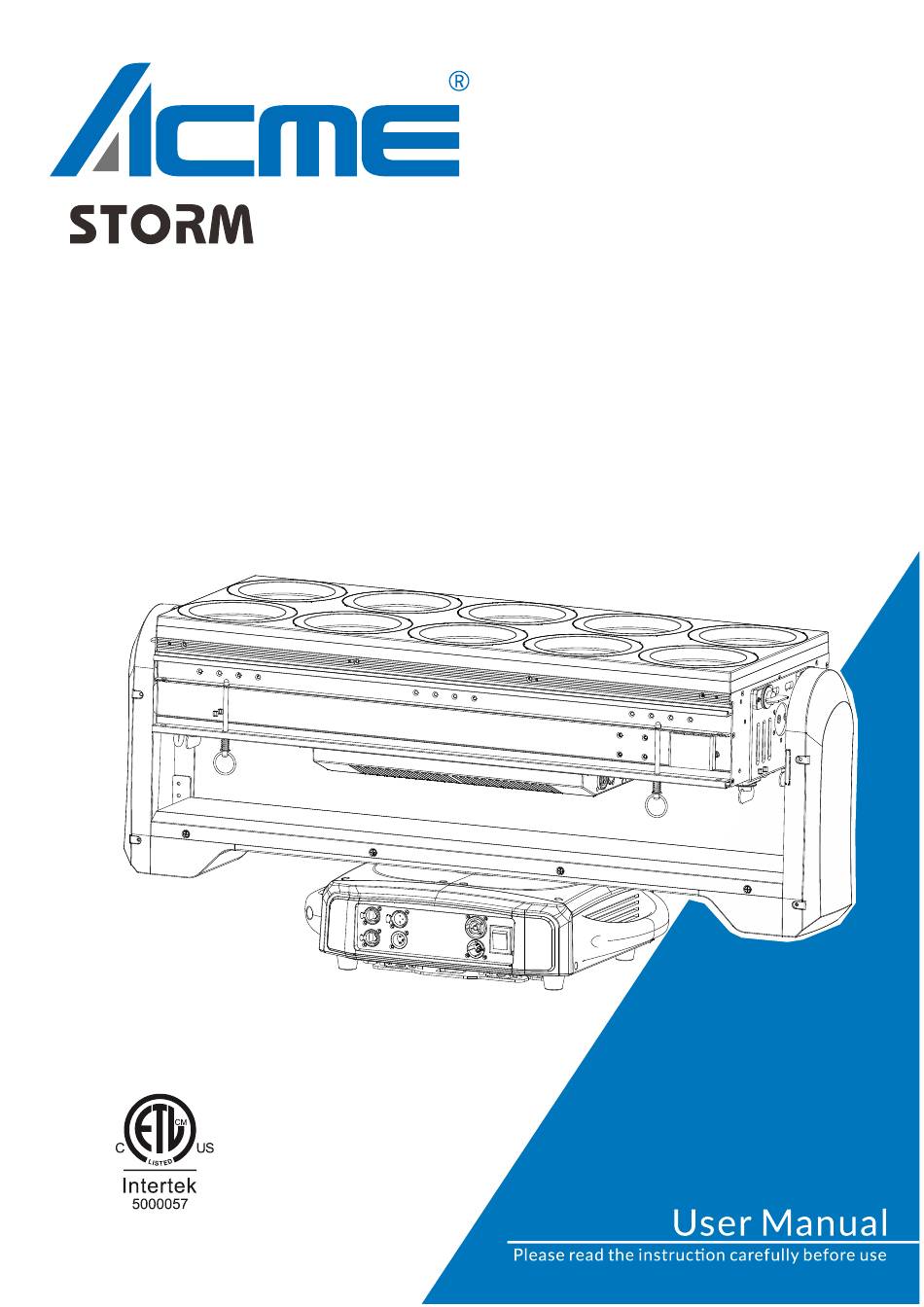

ACME STORM User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for ACME STORM

Summary of Contents for ACME STORM

  • Page 2: Table Of Contents

    CONTENTS 01/ Safety Instructions ....................2 02/ Technical Specifications ..................6 03/ Control Panel ......................8 04/ Fixture Installation ....................9 05/ How To Set The Unit .................... 12 5.1 Main Functions ....................12 5.2 Home Position Adjustment ................. 26 06/ Control By Universal DMX Controller ..............

  • Page 3: 01/ Safety Instructions

    01/ Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 off the mains power immediately. DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid entanglement of the power cord with other wires. ...
  • Page 5 01/ Consignes de sécurité Veuillez lire attentivement les instructions qui contiennent des informations importantes sur l'installation, l'utilisation et l'entretien. ATTENTION Veuillez conserver ce guide de l'utilisateur pour une consultation future. Si vous vendez l'appareil à un autre utilisateur, assurez-vous qu'il reçoive également ce manuel d'instructions.
  • Page 6 pour éviter tout risque d'incendie. Assurez-vous que le cordon d'alimentation n'est pas pincé ou endommagé; remplacez-le  immédiatement s'il est endommagé. La température de surface de l'unité peut atteindre 65℃. NE PAS toucher les capots à  mains nues pendant son fonctionnement. Évitez que des liquides inflammables, de l'eau ou du métal ne pénètrent dans l'appareil.

  • Page 7: 02/ Technical Specifications

    02/ Technical Specifications Power Voltage 100-240V~ 50/60Hz Power Consumption 1025W 10x100W LED Light Source 10x6x0.5W LED (RGB) 10x24x0.5W LED (RGB) Beam Angle 4° Field Angle 6° 0-100% smooth dimming; outstanding strobe effect with variable Dimmer/Strobe speed 540° Tilt 244° Movement Pan/Tilt Resolution 16 bit Automatic pan/tilt position correction...
  • Page 8 Unique tungsten effect Multi-point surface light and multi-point back light with pixel control and rainbow effect Excellent high output beam with sharp effect High output, low energy consumption, good heat dissipation, long Features service life Applied to concert, TV stations, variety shows and other professional performance 2 x fixed clamps for 50mm truss;...

  • Page 9: 03/ Control Panel

    03/ Control Panel 1. Display To show the various menus and the selected function MENU To enter into move backward or leave the menu  UP To go backward to move up in the menu 2. Buttons  DOWN To go forward to move down in the menu ENTER To perform the desired functions 3.

  • Page 10: 04/ Fixture Installation

    04/ Fixture Installation  DO install and operate by qualified operator. Fixture(s) should be installed in areas outside walking paths, seating areas, or away from areas were unauthorized personnel might reach the fixture by hand. NEVER stand directly below the fixture(s) when rigging, removing or servicing.
  • Page 11 Installation for version without fixed clamps: - 10 -...
  • Page 12 Installation for version with fixed clamps: - 11 -...

  • Page 13: 05/ How To Set The Unit

    05/ How To Set The Unit 5.1 Main Functions  To access the control menus, press the [MENU] button.  Navigate the menu structure, using the [ENTER], [ UP] and [ DOWN] buttons.  To select a menu option or to confirm a selection, press the [ENTER] button. ...
  • Page 14 MENU SUBMENU OPTIONS Artnet to DMX Pan Invert Tilt Invert P/T Feedback Linear Square Law Dimmer Curve Inv SQ Law S Curve Fast Dimmer Speed Smooth Tungsten Standard Power Mode Quiet 900Hz Fixture Settings 1000Hz 1100Hz 1200Hz 1300Hz 1400Hz 1500Hz LED Refresh Rate 2500Hz 4000Hz...
  • Page 15 MENU SUBMENU OPTIONS Display Invert Backlight Intensity 1-10 (Default=10) Display Settings °C Temperature Unit °F English Language Chinese Auto Test Mode 1 Mode 2 Clear No/Yes Clear No/Yes Dimmer 0-255 Dimmer 0-255 Strobe 0-255 Strobe 0-255 LED. W1 0-255 Pixel 0-255 Back.
  • Page 16 MENU SUBMENU OPTIONS Fixture Use Hour Total LED Hour LED Use Hour LED On Hour LED Hours Reset Password=050 Current LED 1 LED 2 Temperature LED 3 LED 4 LED 5 H_FAN 1 Fixture Information H_FAN 2 H_FAN 3 Fan State H_FAN 4 H_FAN 5 H_FAN 6...
  • Page 17 DMX Settings Enter the control menu and select DMX Settings, press ENTER. Use the UP/DOWN button to select DMX Address, DMX Channel Mode, No DMX Status, View DMX Value, Connect Option, Network, Art-Net Settings, sACN Settings or Artnet to DMX. DMX Address Select DMX Address, press ENTER.
  • Page 18 View DMX Value Select View DMX Value, press ENTER. Use UP/DOWN button to select the desired DMX channel, for which the value is to be displayed. To exit the menu, press MENU, or wait 30 seconds. Connect Option Select Connect Option, press ENTER. Use UP/DOWN button to select Auto, DMX, Art-Net or sACN, confirm your selection with ENTER.
  • Page 19 Fixture Settings Enter the control menu and select Fixture Settings, press ENTER. Use the UP/DOWN button to select Pan Invert, Tilt Invert, P/T Feedback, Dimmer Curve, Dimmer Speed, Power Mode, LED Refresh Rate, Amber Glow or Invert Pixel Order. Pan Invert Select Pan Invert, press ENTER.
  • Page 20 Dimmer Speed Select Dimmer Speed, press ENTER. Use UP/DOWN button to select Fast, Smooth or Tungsten, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. Power Mode Select Power Mode, press ENTER. Use UP/DOWN button to select Standard or Quiet, confirm your selection with ENTER.
  • Page 21 Display Settings Enter the control menu and select Display Settings, press ENTER. Use the UP/DOWN button to select Display Invert, Backlight Intensity, Temperature Unit or Language. Display Invert Select Display Invert, press ENTER. Use UP/DOWN button to select No (display normal) or Yes (display inverted), confirm your selection with ENTER.
  • Page 22 Fixture Test Enter the control menu and select Fixture Test, press ENTER. Use the UP/DOWN button to select Auto Test or Manual Test. Auto Test Select Auto Test, press ENTER. The device immediately performs an automatic self-test. To end the automatic self-test and exit the menu, press MENU, or wait 30 seconds.
  • Page 23 LED Use Hour Select LED Use Hour, press ENTER. Use UP/DOWN button to select Total LED Hour (total time) or LED On Hour (current switch-on time), confirm your selection with ENTER. The total time or current switch-on time is displayed. Use UP/DOWN button to select LED Hours Reset, confirm your selection with ENTER.
  • Page 24 Error Logs Select Error Logs, press ENTER. Use UP/DOWN button to select Fixture Errors, confirm your selection with ENTER. The error list is displayed. Use UP/DOWN button to select Reset Error Log, confirm your selection with ENTER. If you wish to reset the relevant error logs, select Yes. If you do not wish to reset anything, select No.
  • Page 25 Special Function Enter the control menu and select Special Function, press ENTER. Use the UP/DOWN button to select Factory Settings. Factory Settings Select Factory Settings, press ENTER. If you wish to reset the device to the factory settings, select Yes. If you do not wish to reset anything, select No.
  • Page 26 RDM functions: Certain menus of the device and functions can be called up via the RDM protocol. The parameter IDs are implemented as follows for different commands: Command Command Command Parameter ID ‘Discovery’ ‘Set’ ‘Get’ DISC_UNIQUE_BRANCH √ DISC_MUTE √ DISC_UN_MUTE √...

  • Page 27: Home Position Adjustment

    5.2 Home Position Adjustment  To access the control menus, press the [MENU] button.  To access the offset menus, long-press the [ENTER] button.  Navigate the offset menus, using the [ENTER], [ UP] and [ DOWN] buttons.  To select a menu option or to confirm a selection, press the [ENTER] button. ...
  • Page 28 Frequency(Hz) Select Frequency(Hz), press ENTER. Use UP/DOWN button to select a value, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. Frequency VALUES 900Hz 772~1027 1000Hz 872~1127 1100Hz 972~1227 1200Hz 1072~1327 1300Hz 1172~1427 1400Hz 1272~1527 1500Hz...
  • Page 29 LED. A1 Select LED. A1, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. LED. W1 Select LED. W1, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER.

  • Page 30: 06/ Control By Universal Dmx Controller

    06/ Control By Universal DMX Controller 6.1 DMX512 Connection 1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 31: Address Setting

    6.2 Address Setting If you use a universal DMX controller to control the units, you have to set DMX address between 1 and 512 so that the units can receive DMX signal. Press the MENU button to access the control menus, select DMX Settings, press the ENTER button to confirm.
  • Page 32 16 Channels (Mode 1): CHANNEL VALUE FUNCTION 000-255 0°540° 000-255 PAN FINE TILT 000-255 0°244° 000-255 TILT FINE PAN/TILT SPEED 000-255 Fast to Slow DIMMER 000-255 0%100% STROBE 000-007 Close 008-015 Open 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Fast Open Slow Close from Slow to Fast 182-189...
  • Page 33 LED WASH GREEN 0%100% 000-255 LED WASH BLUE 000-255 0%100% RING RED 000-255 0%100% RING GREEN 0%100% 000-255 RING BLUE 000-255 0%100% RING MACRO SELECTION&SPEED 000-015 Null 016-031 Macro 1, Fast to Slow 032-047 Macro 2, Fast to Slow 048-063 Macro 3, Fast to Slow 064-079 Macro 4, Fast to Slow...
  • Page 34 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Fast Open Slow Close from Slow to Fast 182-189 Open 190-231 Slow Open Fast Close from Slow to Fast 232-239 Open 240-247 Random Strobe from Slow to Fast 248-255 Open LED 1 WARM WHITE 000-255 0%100% LED 1 WASH RED...
  • Page 35 LED 5 WASH GREEN 0%100% 000-255 LED 5 WASH BLUE 000-255 0%100% LED 6 WARM WHITE 000-255 0%100% LED 6 WASH RED 0%100% 000-255 LED 6 WASH GREEN 000-255 0%100% LED 6 WASH BLUE 000-255 0%100% LED 7 WARM WHITE 000-255 0%100% LED 7 WASH RED...
  • Page 36 RING 1 RED 0%100% 000-255 RING 1 GREEN 000-255 0%100% RING 1 BLUE 000-255 0%100% RING 1 MACRO SELECTION&SPEED 000-015 Null 016-031 Macro 1, Fast to Slow 032-047 Macro 2, Fast to Slow 048-063 Macro 3, Fast to Slow 064-079 Macro 4, Fast to Slow 080-095 Macro 5, Fast to Slow...
  • Page 37 RING 3 RED 0%100% 000-255 RING 3 GREEN 000-255 0%100% RING 3 BLUE 000-255 0%100% RING 3 MACRO SELECTION&SPEED 000-015 Null 016-031 Macro 1, Fast to Slow 032-047 Macro 2, Fast to Slow 048-063 Macro 3, Fast to Slow 064-079 Macro 4, Fast to Slow 080-095 Macro 5, Fast to Slow...
  • Page 38 RING 5 RED 0%100% 000-255 RING 5 GREEN 000-255 0%100% RING 5 BLUE 000-255 0%100% RING 5 MACRO SELECTION&SPEED 000-015 Null 016-031 Macro 1, Fast to Slow 032-047 Macro 2, Fast to Slow 048-063 Macro 3, Fast to Slow 064-079 Macro 4, Fast to Slow 080-095 Macro 5, Fast to Slow...
  • Page 39 RING 7 RED 0%100% 000-255 RING 7 GREEN 000-255 0%100% RING 7 BLUE 000-255 0%100% RING 7 MACRO SELECTION&SPEED 000-015 Null 016-031 Macro 1, Fast to Slow 032-047 Macro 2, Fast to Slow 048-063 Macro 3, Fast to Slow 064-079 Macro 4, Fast to Slow 080-095 Macro 5, Fast to Slow...
  • Page 40 RING 9 RED 0%100% 000-255 RING 9 GREEN 000-255 0%100% RING 9 BLUE 000-255 0%100% RING 9 MACRO SELECTION&SPEED 000-015 Null 016-031 Macro 1, Fast to Slow 032-047 Macro 2, Fast to Slow 048-063 Macro 3, Fast to Slow 064-079 Macro 4, Fast to Slow 080-095 Macro 5, Fast to Slow...
  • Page 41 FUNCTION 000-009 Null 010-019 Null 020-029 Null 030-039 Dimmer Curve: Linear 040-049 Dimmer Curve: Square Law 050-059 Dimmer Curve: Inv SQ Law 060-069 Dimmer Curve: S 070-079 Null 080-089 Null 090-099 Null 100-109 Led Frequency Setting Enable 110-119 Led Frequency Setting Disable 120-121 900Hz 122-123...
  • Page 42 37 Channels (Mode 3): CHANNEL VALUE FUNCTION 000-255 0°540° 000-255 PAN FINE TILT 000-255 0°244° 000-255 TILT FINE PAN/TILT SPEED 000-255 Fast to Slow STROBE 000-007 Close 008-015 Open 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Fast Open Slow Close from Slow to Fast 182-189 Open 190-231...
  • Page 43 LED 8 0%100% 000-255 LED 9 000-255 0%100% LED 10 000-255 0%100% LED MACRO SELECTION 000-015 Null 016-031 Macro 1 032-047 Macro 2 048-063 Macro 3 064-079 Macro 4 080-095 Macro 5 096-111 Macro 6 112-127 Macro 7 128-143 Macro 8 144-159 Macro 9 160-175...
  • Page 44 192-207 Macro 12 208-223 Macro 13 224-239 Macro 14 240-255 Random Macro LED WASH MACRO SPEED 000-255 Fast to Slow LED WASH MACRO FADE 000-255 0%100% RING RED 000-255 0%100% RING GREEN 000-255 0%100% RING BLUE 000-255 0%100% RING MACRO SELECTION&SPEED 000-015 Null 016-031...
  • Page 45 240-255 Random Macro RING MACRO SPEED 000-255 Fast to Slow RING MACRO FADE 000-255 0%100% FUNCTION 000-009 Null 010-019 Null 020-029 Null 030-039 Dimmer Curve: Linear 040-049 Dimmer Curve: Square Law 050-059 Dimmer Curve: Inv SQ Law 060-069 Dimmer Curve: S 070-079 Null 080-089...
  • Page 46 100 Channels (Mode 4): CHANNEL VALUE FUNCTION 000-255 0°540° 000-255 PAN FINE TILT 000-255 0°244° 000-255 TILT FINE PAN/TILT SPEED 000-255 Fast to Slow STROBE 000-007 Close 008-015 Open 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Fast Open Slow Close from Slow to Fast 182-189 Open 190-231...
  • Page 47 LED 8 0%100% 000-255 LED 9 000-255 0%100% LED 10 000-255 0%100% LED MACRO SELECTION 000-015 Null 016-031 Macro 1 032-047 Macro 2 048-063 Macro 3 064-079 Macro 4 080-095 Macro 5 096-111 Macro 6 112-127 Macro 7 128-143 Macro 8 144-159 Macro 9 160-175...
  • Page 48 LED WASH RED 4 0%100% 000-255 LED WASH GREEN 4 000-255 0%100% LED WASH BLUE 4 000-255 0%100% LED WASH RED 5 0%100% 000-255 LED WASH GREEN 5 000-255 0%100% LED WASH BLUE 5 000-255 0%100% LED WASH RED 6 000-255 0%100% LED WASH GREEN 6...
  • Page 49 016-031 Macro 1 032-047 Macro 2 048-063 Macro 3 064-079 Macro 4 080-095 Macro 5 096-111 Macro 6 112-127 Macro 7 128-143 Macro 8 144-159 Macro 9 160-175 Macro 10 176-191 Macro 11 192-207 Macro 12 208-223 Macro 13 224-239 Macro 14 240-255 Random Macro...
  • Page 50 RING 2 BLUE 0%100% 000-255 RING 2 MACRO SELECTION&SPEED 000-015 Null 016-031 Macro 1, Fast to Slow 032-047 Macro 2, Fast to Slow 048-063 Macro 3, Fast to Slow 064-079 Macro 4, Fast to Slow 080-095 Macro 5, Fast to Slow 096-111 Macro 6, Fast to Slow 112-127...
  • Page 51 RING 4 BLUE 0%100% 000-255 RING 4 MACRO SELECTION&SPEED 000-015 Null 016-031 Macro 1, Fast to Slow 032-047 Macro 2, Fast to Slow 048-063 Macro 3, Fast to Slow 064-079 Macro 4, Fast to Slow 080-095 Macro 5, Fast to Slow 096-111 Macro 6, Fast to Slow 112-127...
  • Page 52 RING 6 BLUE 0%100% 000-255 RING 6 MACRO SELECTION&SPEED 000-015 Null 016-031 Macro 1, Fast to Slow 032-047 Macro 2, Fast to Slow 048-063 Macro 3, Fast to Slow 064-079 Macro 4, Fast to Slow 080-095 Macro 5, Fast to Slow 096-111 Macro 6, Fast to Slow 112-127...
  • Page 53 RING 8 BLUE 0%100% 000-255 RING 8 MACRO SELECTION&SPEED 000-015 Null 016-031 Macro 1, Fast to Slow 032-047 Macro 2, Fast to Slow 048-063 Macro 3, Fast to Slow 064-079 Macro 4, Fast to Slow 080-095 Macro 5, Fast to Slow 096-111 Macro 6, Fast to Slow 112-127...
  • Page 54 RING 10 BLUE 0%100% 000-255 RING 10 MACRO SELECTION&SPEED 000-015 Null 016-031 Macro 1, Fast to Slow 032-047 Macro 2, Fast to Slow 048-063 Macro 3, Fast to Slow 064-079 Macro 4, Fast to Slow 080-095 Macro 5, Fast to Slow 096-111 Macro 6, Fast to Slow 112-127...
  • Page 55 060-069 Dimmer Curve: S 070-079 Null 080-089 Null 090-099 Null 100-109 Led Frequency Setting Enable 110-119 Led Frequency Setting Disable 120-121 900Hz 122-123 1000Hz 124-125 1100Hz 126-127 1200Hz 128-129 1300Hz 130-131 1400Hz 132-133 1500Hz 134-135 2500Hz 136-137 4000Hz 138-139 5000Hz 140-141 6000Hz 142-143...
  • Page 56 LED / LED WASH MACRO SELECTION: - 55 -...
  • Page 57 - 56 -...
  • Page 58 - 57 -...
  • Page 59 - 58 -...
  • Page 60 RING MACRO SELECTION - A: - 59 -...
  • Page 61 - 60 -...
  • Page 62 - 61 -...
  • Page 63 - 62 -...
  • Page 64 - 63 -...
  • Page 65 - 64 -...
  • Page 66 RING MACRO SELECTION - B: - 65 -...
  • Page 67 - 66 -...
  • Page 68 - 67 -...
  • Page 69 - 68 -...

  • Page 70: 07/ Error Information

    07/ Error Information Error codes are shown continuously in the display when the fixture fails and they will not disappear until the fixture is repaired. CPU-B/C/D Error Check whether the 485 (DATA) leads on the PCB board are installed in place or disconnected.
  • Page 71 Tilt Reset Error Check whether the position of the tilt where the magnet is installed falls off or is damaged. Check whether there are obstacles in the tilt operating range. Check whether the Hall element on the tilt is damaged. Check whether the lead connecting the Hall element on the tilt and the PCB board is in poor contact or disconnected.
  • Page 72 Color Cal IC Error Check if the color calibration IC is damaged. Check whether the color calibration IC board is inserted well and whether the electronic components are well soldered. Check if the motherboard is malfunctioning. Check whether the R76 bit resistors and other components on the motherboard are well soldered.

  • Page 73: 08/ Troubleshooting

    08/ Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for troubleshooting: A. The unit does not work, no light and the fan does not work  Check the connected power.  Measure the voltage. ...

  • Page 74: 09/ Fixture Cleaning

    09/ Fixture Cleaning It is absolutely essential that the fixture is kept clean to ensure the maximum light-output and allow the fixture to function reliably throughout its life. The fixture must be cleaned regularly to avoid dust, dirt and smoke-fluid residues building up on or within the fixture. The cleaning frequency depends on the application environment.
  • Page 75 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 2014/30/EU. EN 55032: 2015+A1: 2020; EN IEC 61000-3-2: 2019+A1: 2021; EN 61000-3-3: 2013+A1: 2019+A2: 2021;...
